DRIVE TRAIN 4-5

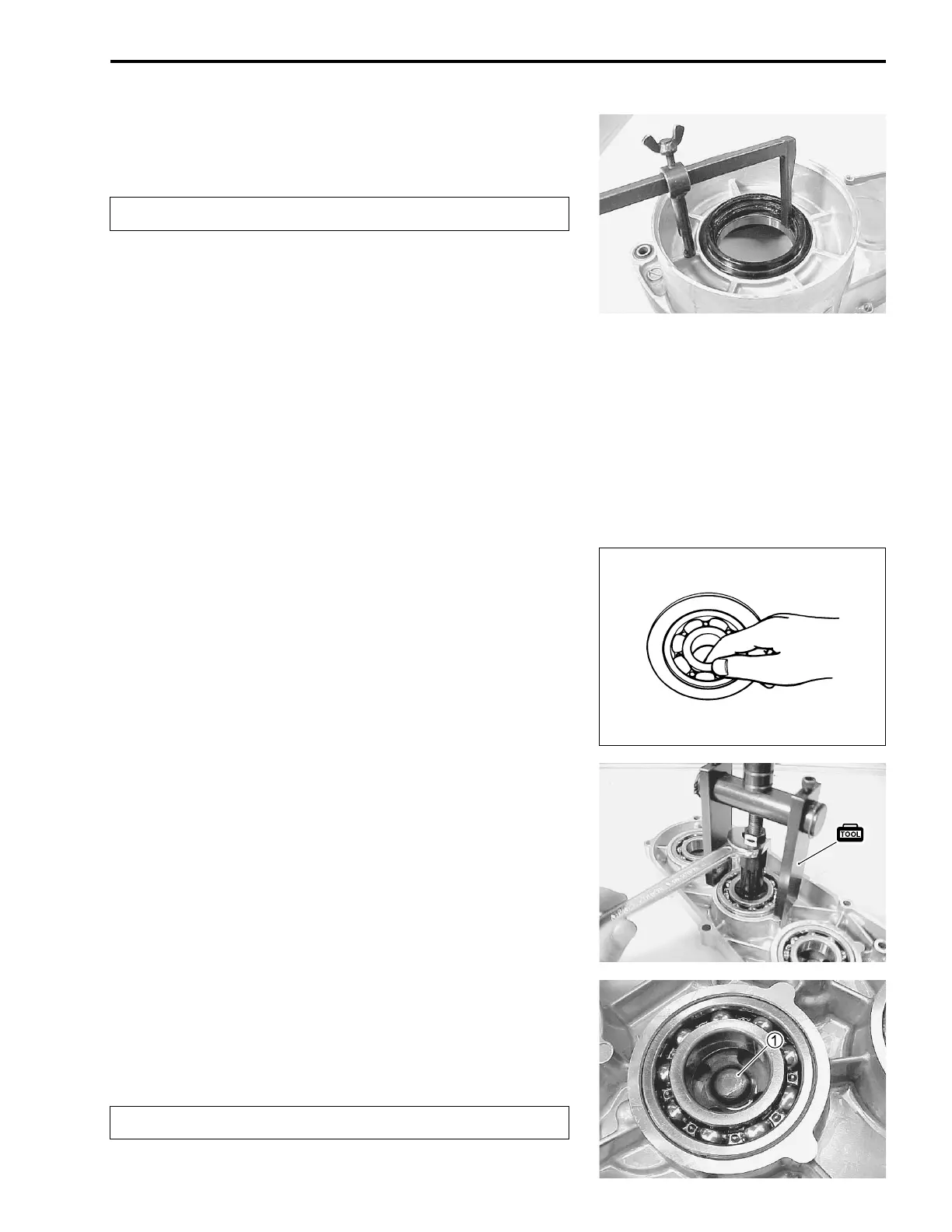

• Remove the oil seal with the special tool.
[ 09913-50121: Oil seal remover
• Install the new oil seal to the final gear case.
• Apply SUZUKI SUPER GREASE “A” to the oil seals.
W 99000-25010: SUZUKI SUPER GREASE “A”
NOTE:
Direction of the oil seal is shown in the illustration at page 4-2.
BEARINGS
Inspect the inner race play of the bearing by hand while it is in
the final gear case.
Rotate the inner race by hand to inspect for abnormal noise and
smooth rotation.
If there is anything unusual, replace the bearing with a new one.
• Remove the bearing with the special tool.
[ 09921-20240: Bearing remover set
• To facilitate setting the special tool, knock down the plate
1
that is at the No.2 gear bearing.
• Remove the bearing with the special tool.
[ 09921-20240: Bearing remover set
Replace the removed oil seal with a new one.
Replace the removed plate
1 with a new one.
