Suzuki AN650 2002 - Construction; Rear Swingarm; Removal

CHASSIS 9-59

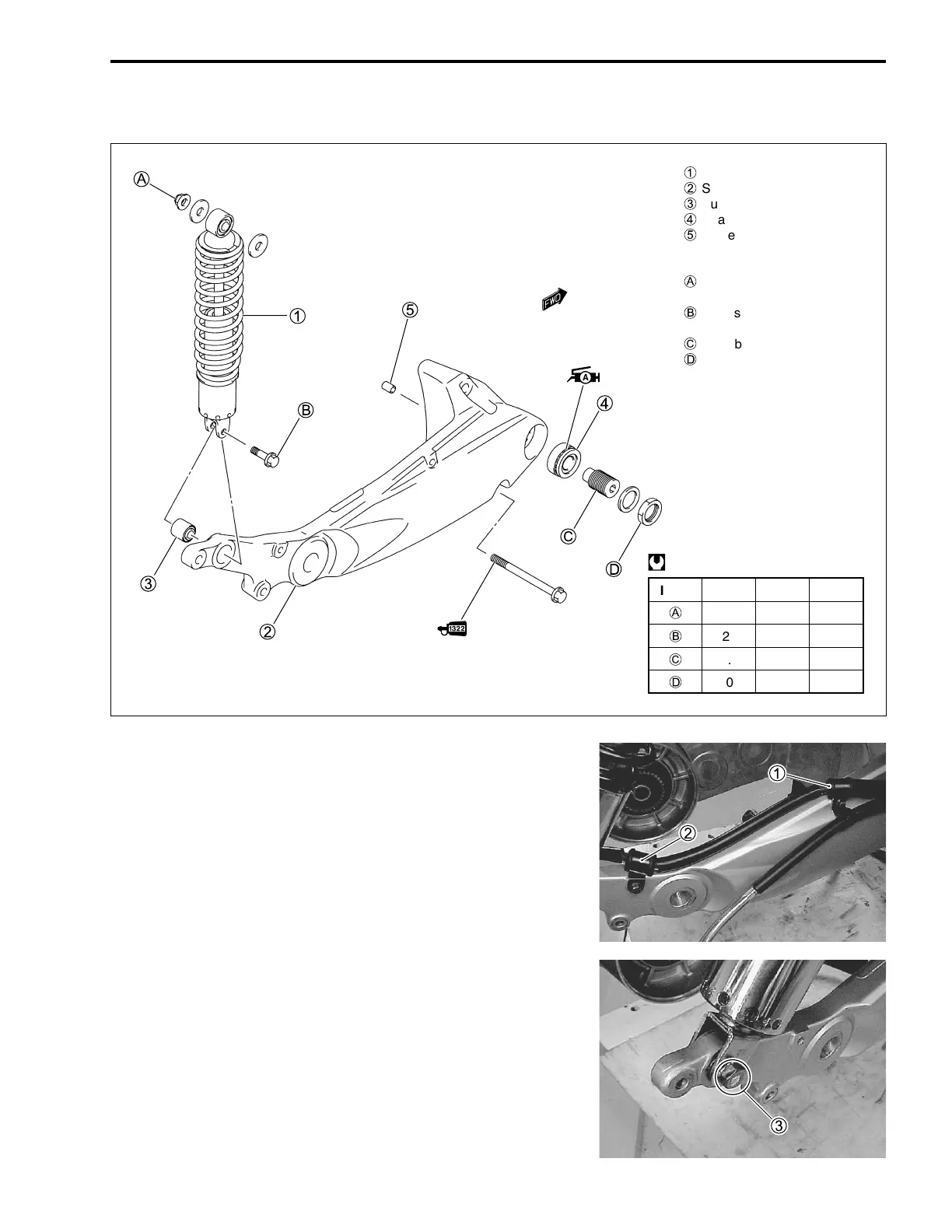

REAR SWINGARM
CONSTRUCTION
REMOVAL
• Place the motorcycle on the center stand.
• Remove the exhaust muffler. (3-7)
• Remove the rear wheel. (9-48)
• Remove the rear brake hose guide
1, 2.
• Remove the rear shock absorber bolt
3.
1 Rear shock absorber
2 Swingarm
3 Bushing
4 Bearing
5 Dowel pin
A Rear shock absorber
mounting nut
B Rear shock absorber
mounting bolt
C Pivot bolt
D Locknut
ITEM N·m kgf-m lb-ft
A 29 2.9 21.0
B 29 2.9 21.0
C 9.5 0.95 7.0
D 100 10.0 72.5
@
