COOLING AND LUBRICATION SYSTEM 8-17
REMOVAL AND DISASSEMBLY

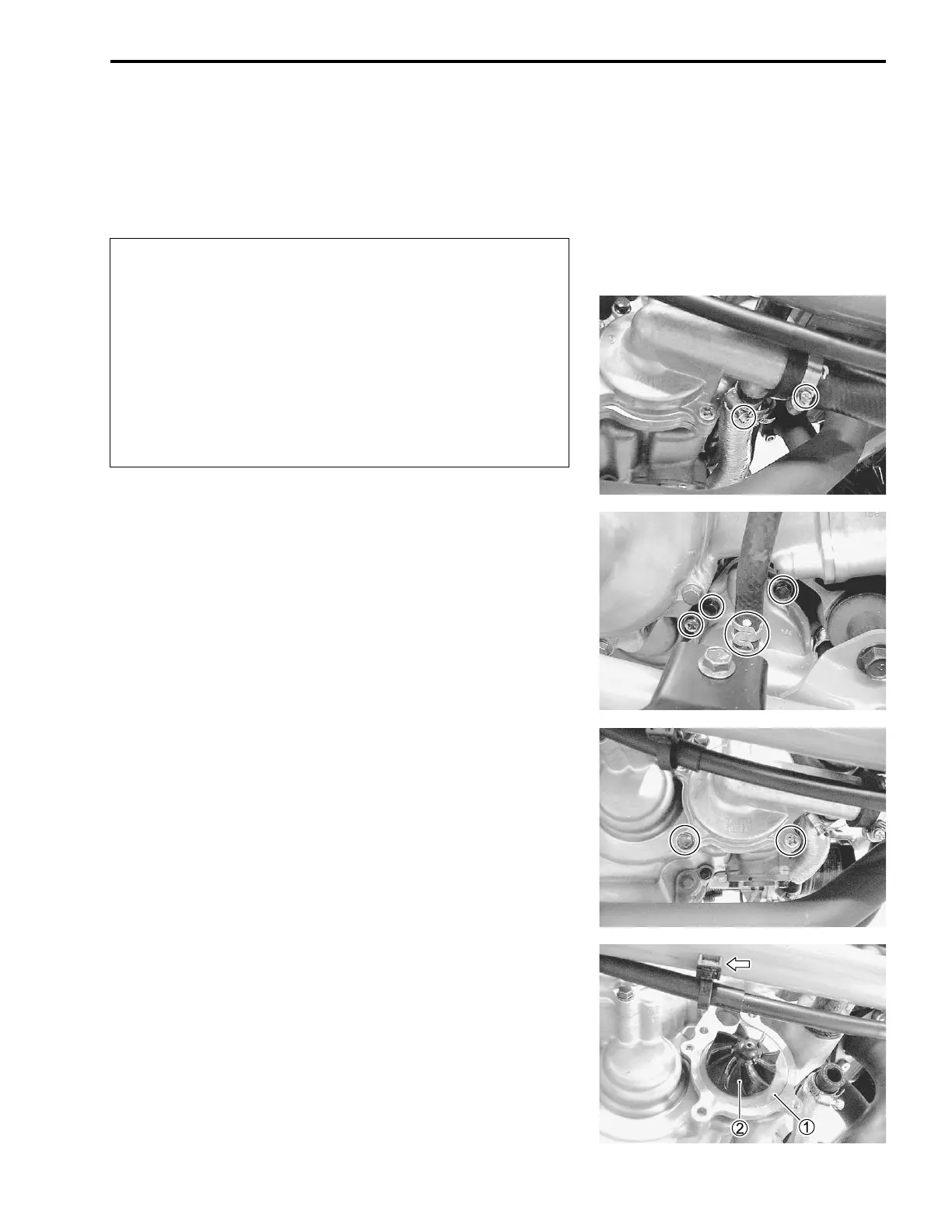

• Remove the leg shield and footboard. (9-10, 9-18)
• Drain engine coolant. (2-20)
• Hold the chassis by side stand.
"
• Disconnect the radiator hose.
• Remove the water pump cover.
• Remove the cable clip.
• Remove the water pump body
1 with impeller 2.
* Do not open the radiator cap when the engine is hot,
as you may be injured by escaping hot liquid or vapor.
* The engine must be cool before servicing the cooling
system.
* Engine coolant may be harmful if swallowed or if it
comes in contact with the skin or eyes. If engine cool-
ant gets into the eyes or contacts the skin, flush the
eyes or wash the skin thoroughly, with plenty of
water. If engine coolant is swallowed, induce vomiting
and call a physician immediately.

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
