Suzuki AN650 2002 - Starter Clutch

ENGINE 3-43
STARTER CLUTCH
INSPECTION
• Install the starter driven gear onto the starter clutch.
• Turn the starter driven gear by hand.
• Inspect the starter clutch for a smooth movement.
• Inspect that the gear turns one direction only.
• If a large resistance is felt for rotation, inspect the starter
clutch bearing or the starter clutch contacting surface on the
starter driven gear for wear and damage.
• If they are found to be damaged, replace them with new ones.

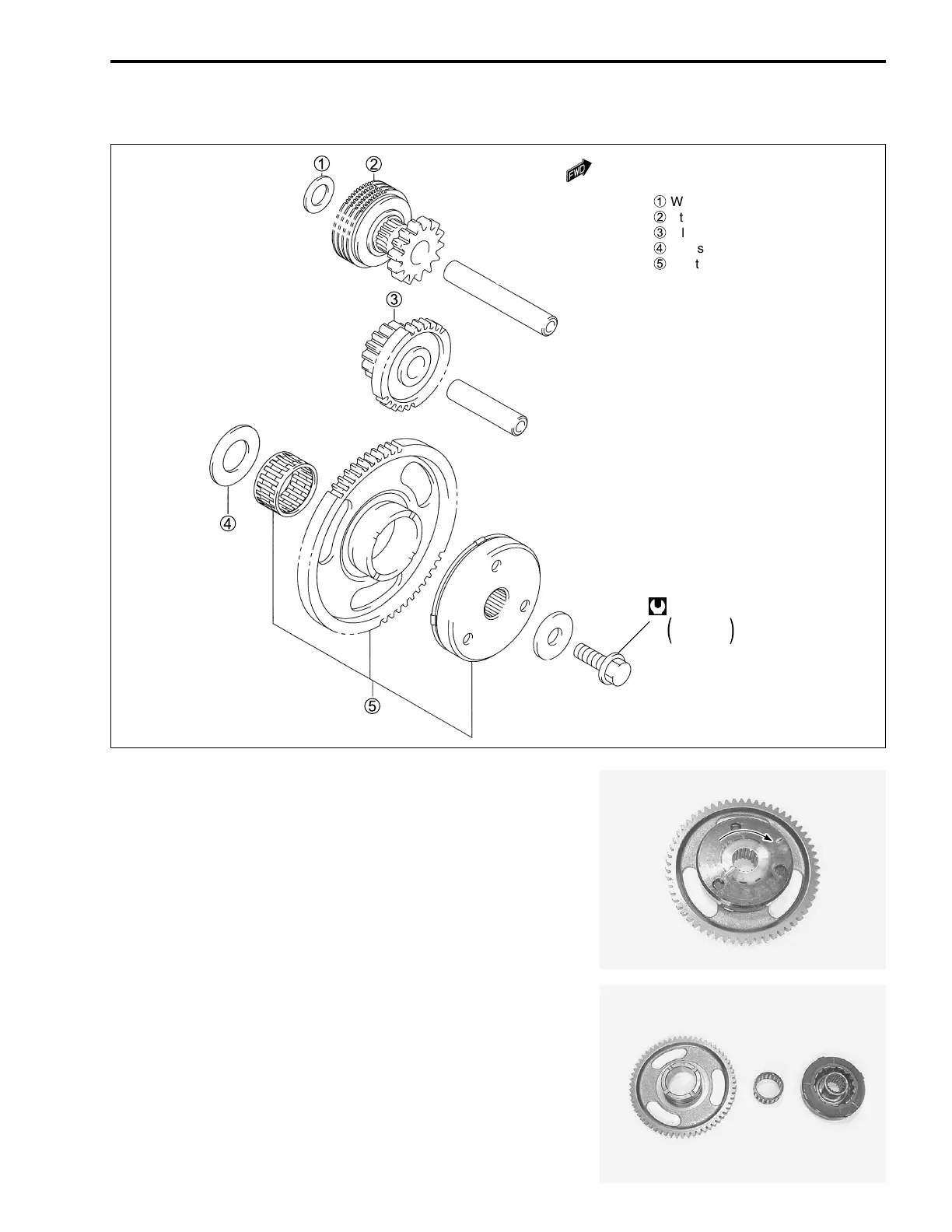

1 Washer
2 Starter torque limiter
3 Idle gear
4 Wahser
5 Starter clutch
55 N
.
m
5.5 kgf-m
40.0 lb-ft
