9-30 CHASSIS

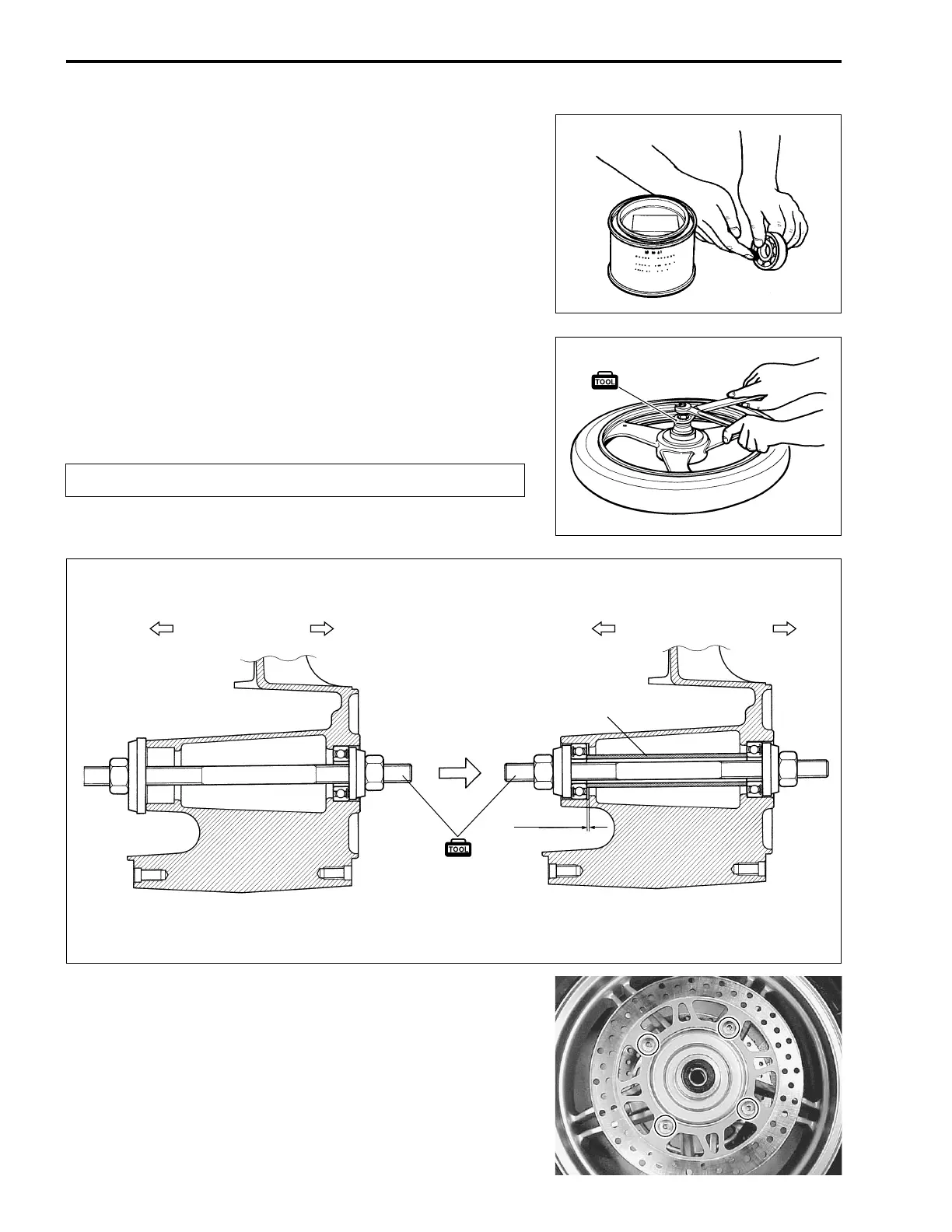

WHEEL BEARING
• Apply grease to the wheel bearings.
W 99000-25010: SUZUKI SUPER GREASE “A”
• First install the right wheel bearing, then install the left wheel
bearing and spacer by using the special tools.
[ 09941-34513: Bearing/Steering race installer set
09913-70210: Bearing installer set

BRAKE DISC
Make sure that the brake disc is clean and free of any greasy
matter.
• Apply THREAD LOCK SUPER “1360” to the disc mounting
bolts and tighten them to the specified torque.
! Brake disc bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
J 99000-32130: THREAD LOCK SUPER “1360”
The sealed cover of the bearing must face outside.
RightRight
LeftLeft
Clearance
Spacer

Suzuki AN650 2002 Specifications

General

Displacement	638 cc
Compression Ratio	11.2:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Front Tire	120/70-15
Rear Tire	160/60-14
Bore x Stroke	75.5 mm x 71.3 mm
Front Brakes	Disc
Fuel Tank Capacity	15 liters
Seat Height	750 mm
Transmission	CVT
