1C-3 Engine Electrical Devices:
Installation
Install the CKP sensor in the reverse order of removal.
Refer to “Generator Removal and Installation in Section
1J (Page 1J-6)”.
IAP Sensor Inspection
B815H21306006
Refer to “DTC “C13” (P0105-H/L): IAP Sensor Circuit
Malfunction in Section 1A (Page 1A-33)”.
IAP Sensor Removal and Installation
B815H21306007
Removal

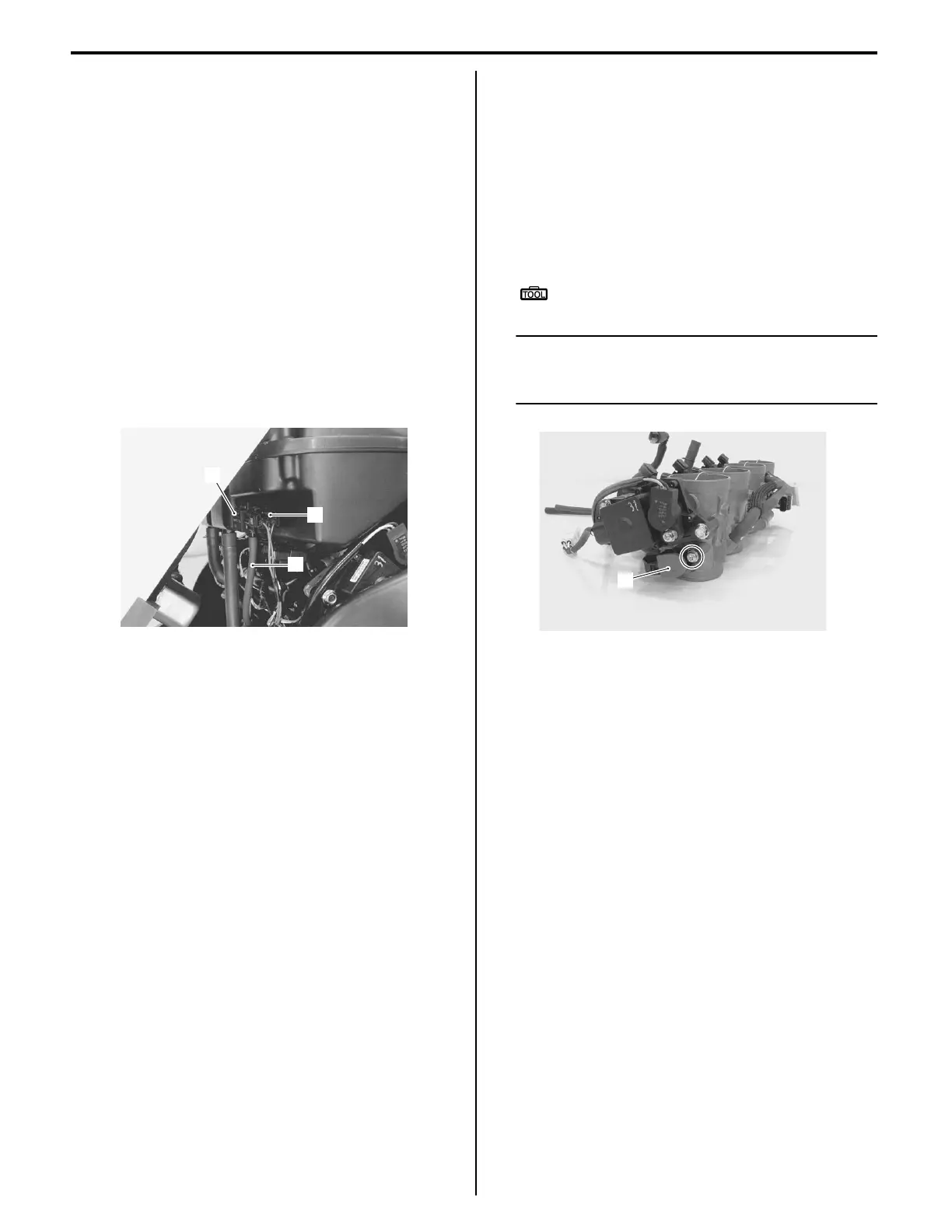

1) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
9)”.
2) Disconnect the coupler (1) and vacuum hose (2).
3) Remove the IAP sensor (3) from the air cleaner box.
Installation
Install the IAP sensor in the reverse order of removal.
TP Sensor Inspection
B815H21306008
Refer to “DTC “C14” (P0120-H/L): TP Sensor Circuit
Malfunction in Section 1A (Page 1A-40)”.
TP Sensor Removal and Installation
B815H21306009
Refer to “Throttle Body Disassembly and Assembly in
Section 1D (Page 1D-12)”.
Removal
1) Remove the throttle body. Refer to “Throttle Body
Removal and Installation in Section 1D (Page 1D-
10)”.
2) Remove the TP sensor (1) with the special tool.
Special tool
: 09930–11950 (Torx wrench)
NOTE
Prior to disassembly, mark the TP sensor’s
original position with a paint or scribe for
accurate reinstallation.
1
3
2
I815H1130005-01
1
I815H1130006-01
To Next Page
