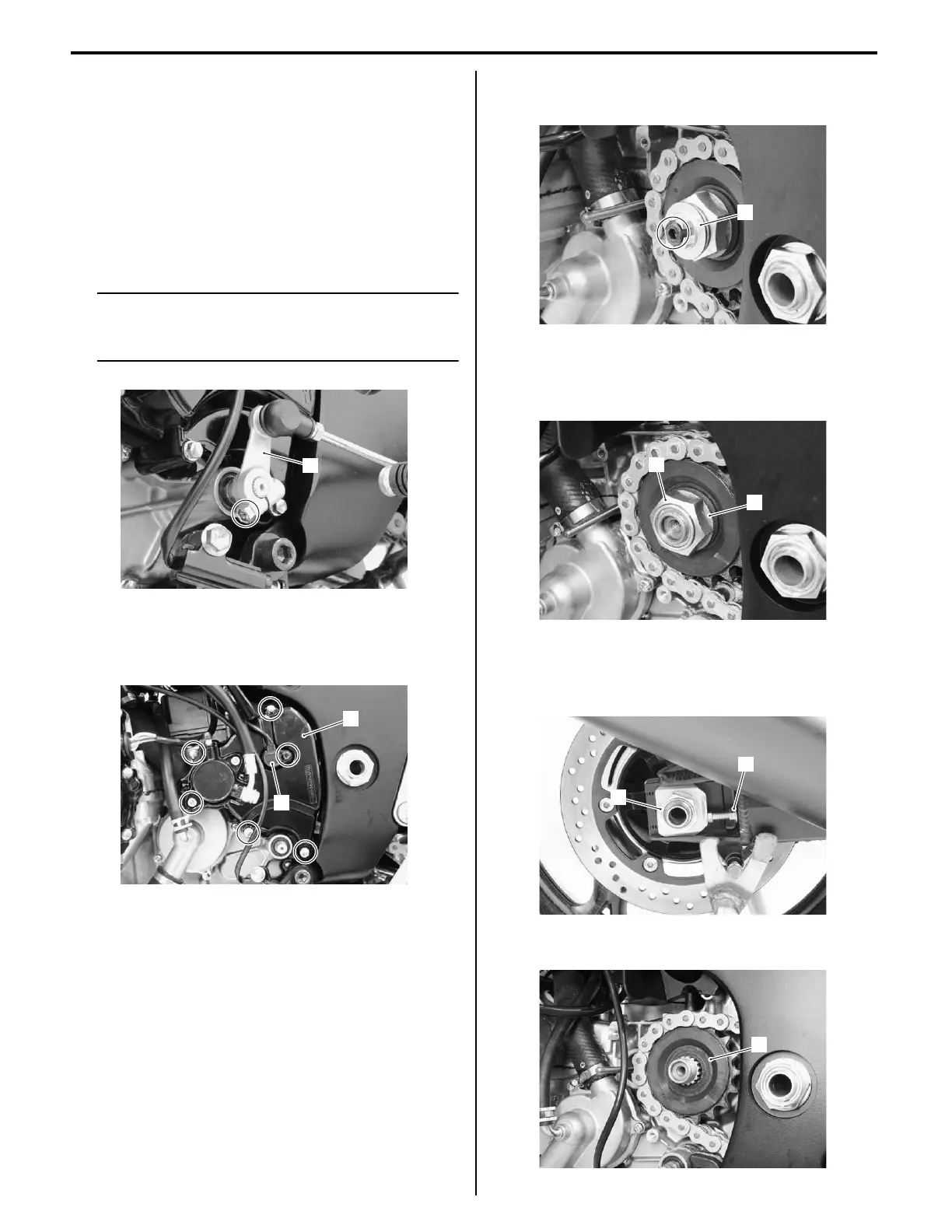

3A-2 Drive Chain / Drive Train / Drive Shaft:
Engine Sprocket Removal and Installation
B815H23106002
Removal
1) Remove the side cowlings. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
2) Support the motorcycle with a jack or wooden block.
3) Remove the gearshift link arm (1) by removing the
bolt.
NOTE
Mark the gearshift shaft head at which the
gearshift link arm slit set for correct
reinstallation.
4) Remove the speed sensor (2).
5) Remove the engine sprocket cover (3) along with the
clutch release cylinder.
6) Remove the speed sensor rotor (4) by removing its
bolt while depressing the rear brake pedal.
7) Remove the engine sprocket nut (5) while
depressing the rear brake pedal.
8) Remove the washer (6).
9) Loosen the rear axle nut (7).
10) Loosen the chain adjusters (8) to provide additional
chain slack.
11) Remove the engine sprocket (9).
1
I815H1310001-01
2
3
I815H1310002-01
4
I815H1310003-01
5
6
I815H1310004-01
7
8
I815H1310005-01
9
I815H1310006-01
To Next Page
