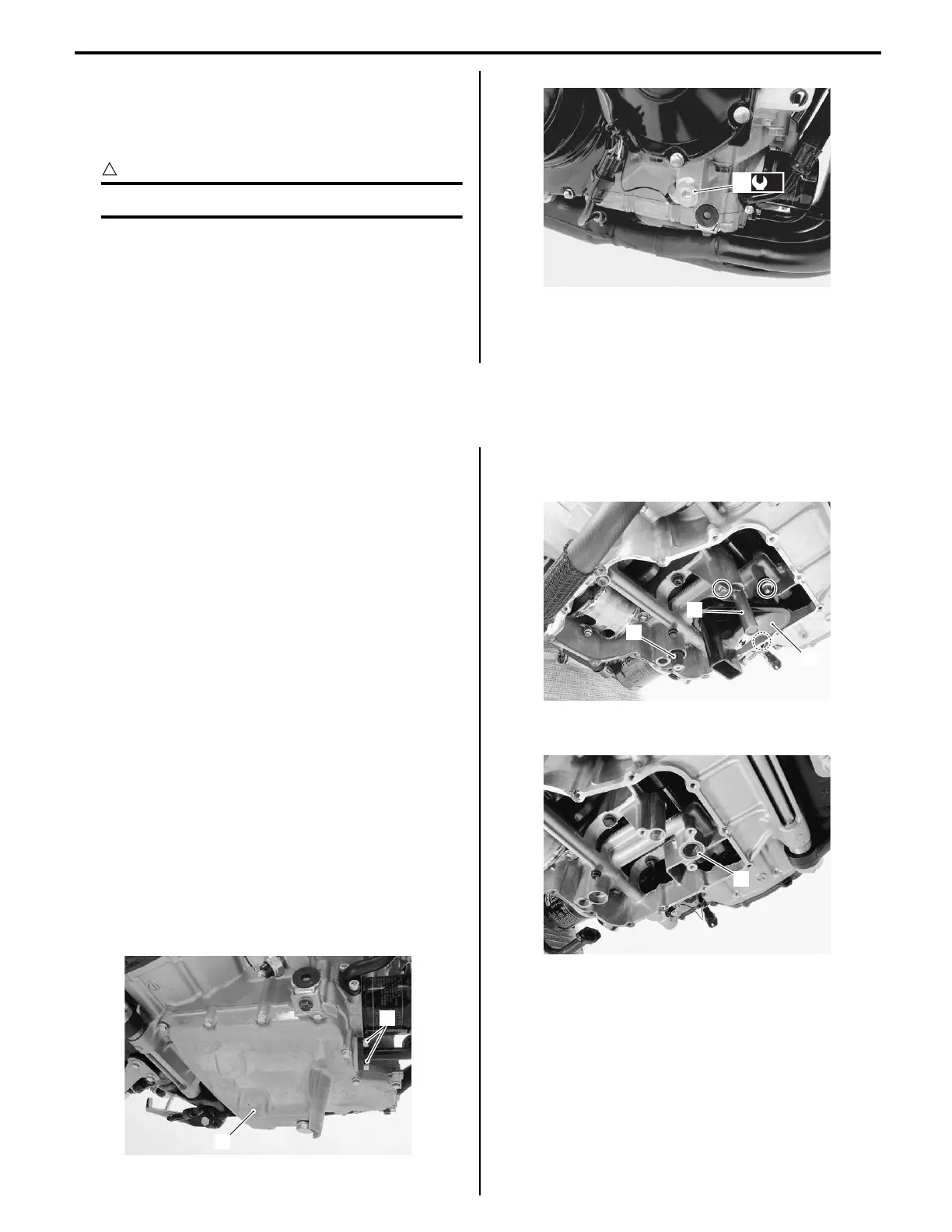

Engine Lubrication System: 1E-6
7) Stop the engine and remove the oil pressure gauge
and attachment.
8) Reinstall the main oil gallery plug (1) and tighten it to
the specified torque.
CAUTION
!
Use a new gasket to oil leakage.
Tightening torque
Main oil gallery plug (M16) (a): 35 N·m (3.5 kgf-
m, 25.5 lb-ft)
9) Check the engine oil level. Refer to “Engine Oil and
Filter Replacement in Section 0B (Page 0B-10)”.
10) Install the removed parts.
Repair Instructions
Engine Oil and Filter Replacement
B815H21506001
Refer to “Engine Oil and Filter Replacement in Section
0B (Page 0B-10)”.
Engine Oil Level Inspection
B815H21506002
Refer to “Engine Oil and Filter Replacement in Section
0B (Page 0B-10)”.
Oil Pan / Oil Strainer / Oil Pressure Regulator
Removal and Installation
B815H21506003
Removal
1) Drain engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
2) Remove the side cowlings. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
14)”.
3) Remove the exhaust pipe assembly. Refer to
“Exhaust Pipe / Muffler Removal and Installation in
Section 1K (Page 1K-3)”.
4) Remove the left oil cooler hose bolts (1).
5) Remove the oil pan (2) and gasket. Refer to “Engine
Bottom Side Disassembly in Section 1D (Page 1D-
63)”.
6) Remove the oil pressure regulator (3), breather pipe
(4) and oil strainer (5).
7) Remove the O-ring (6).
(a)
1
I815H1150003-01
1
2
I815H1150004-02
3
4
5
I815H1150005-01
6
I815H1150006-01
