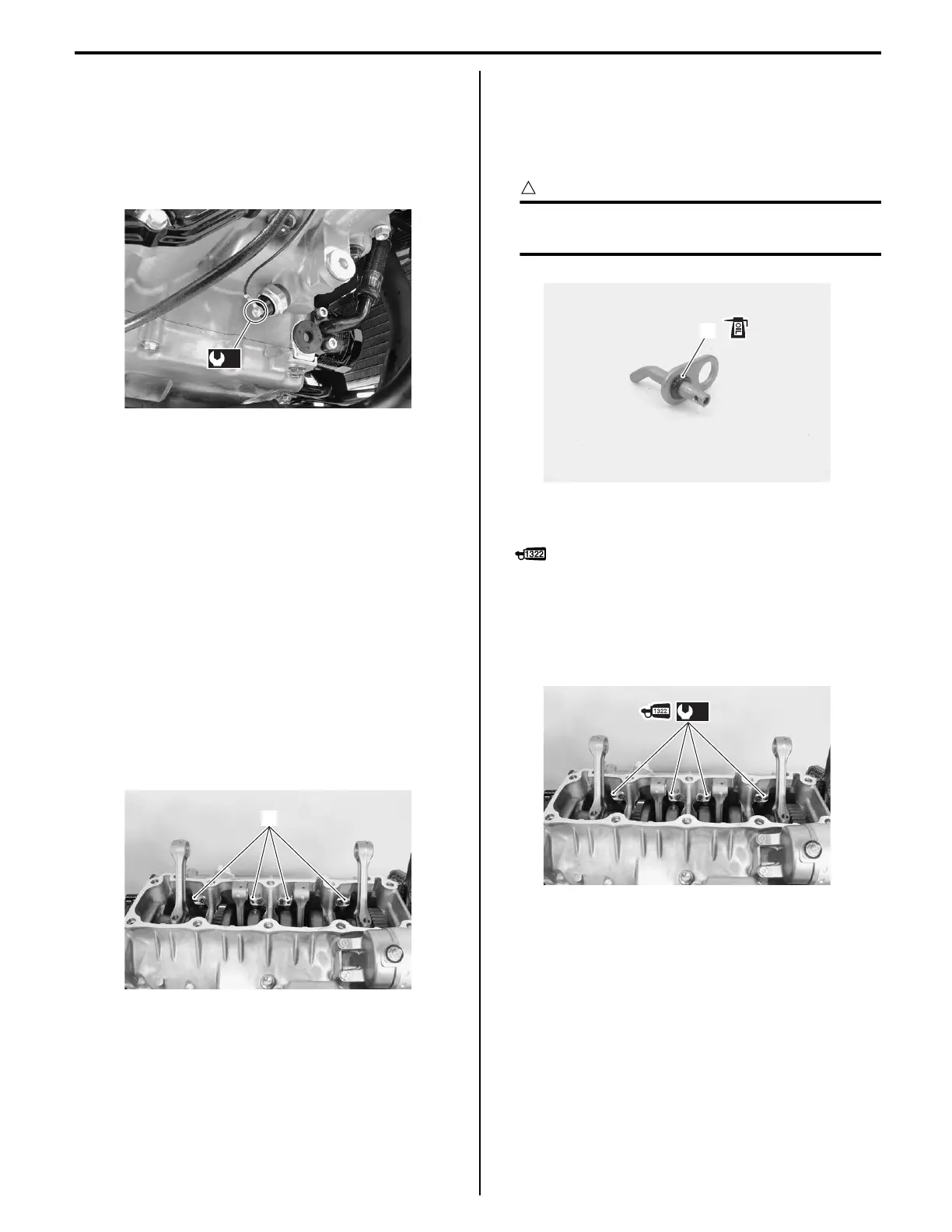

Engine Lubrication System: 1E-10
2) Connect the oil pressure switch lead wire securely.
Refer to “Wiring Harness Routing Diagram in
Section 9A (Page 9A-5)”.
Tightening torque
Oil pressure switch lead wire bolt (b): 1.5 N·m (
0.15 kgf-m, 1.1 lb-ft)
3) Pour engine oil. Refer to “Engine Oil and Filter
Replacement in Section 0B (Page 0B-10)”.
4) Install the removed parts.
Oil Pressure Switch Inspection
B815H21506008
Refer to “Oil Pressure Indicator Inspection in Section 9C
(Page 9C-7)”.
Oil Jet / Oil Gallery Jet Removal and Installation
B815H21506009
Oil Jet (For Pistons)
Removal
1) Remove the engine assembly. Refer to “Engine
Assembly Removal in Section 1D (Page 1D-19)”.
2) Remove the Cylinder. Refer to “Engine Top Side
Disassembly in Section 1D (Page 1D-27)”.
3) Remove the piston cooling oil jets (1).
Installation
Installation is in the reverse order of removal. Pay
attention to the following points:
• Fit the new O-ring (1) to each piston cooling oil jet and
apply engine oil to them.
CAUTION
!
Use the new O-rings to prevent oil pressure
leakage.
• Apply a small quantity of thread lock to the bolts and
tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Piston cooling oil jet bolt (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
(b)
I815H1150018-01
1
I815H1150019-01
1
I823H1150033-01
(a)
I815H1150020-01
To Next Page
