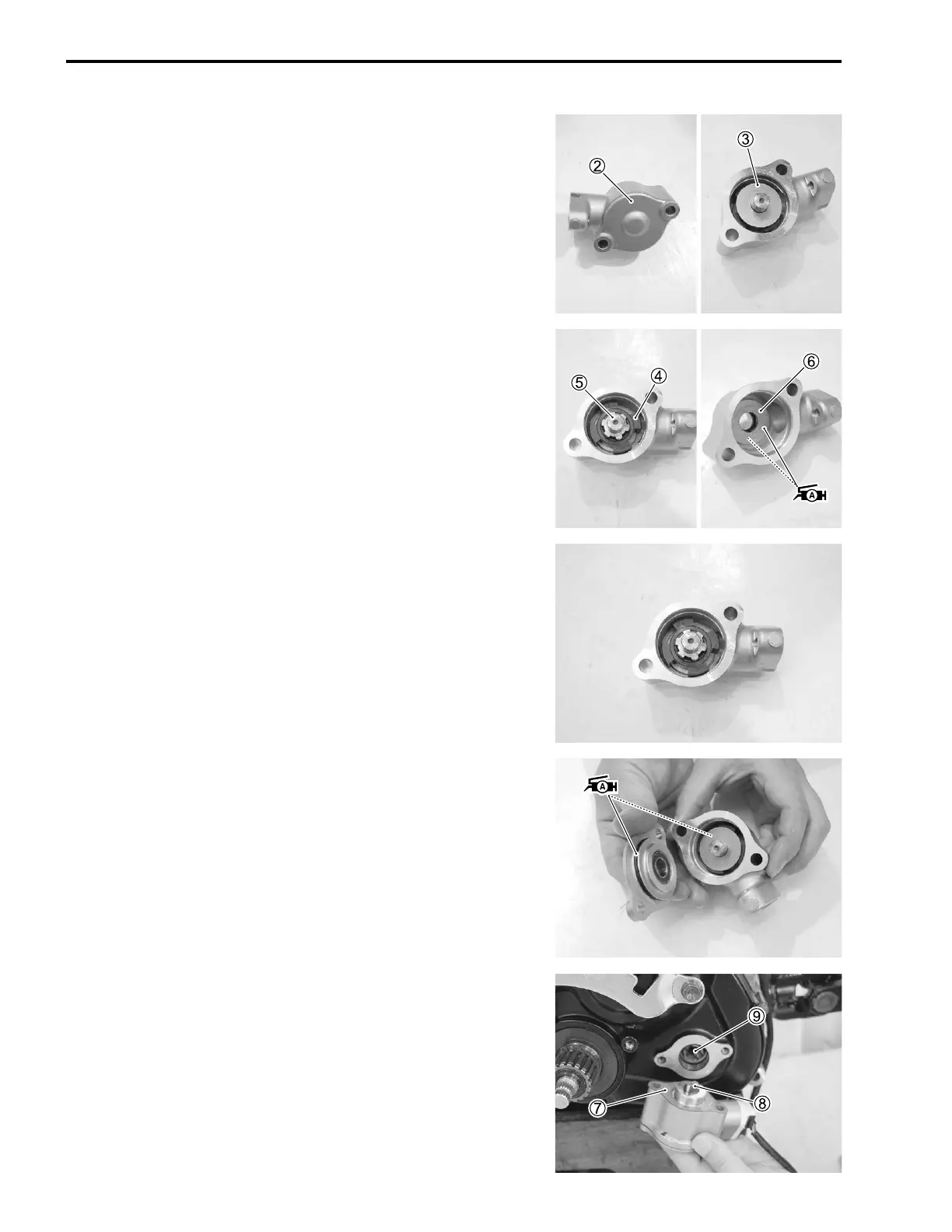

• Remove the gearbox cap
2 and washer 3.
• Remove the speed sensor rotor
4, shaft 5 and washer 6.
• Apply SUZUKI SUPER GREASE “A” to the washer.
' 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Install the washer, speed sensor shaft and rotor.
• Apply SUZUKI SUPER GREASE “A” to the O-ring and
washer.
• Install the washer and cap.
' 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Fit a new gasket
7 and install the gearbox.
• Align the protrusion
8 of the gearbox with the groove 9 of
the transfer output shaft.
