43
WZ07-3541E
Z-7.
Z-7.

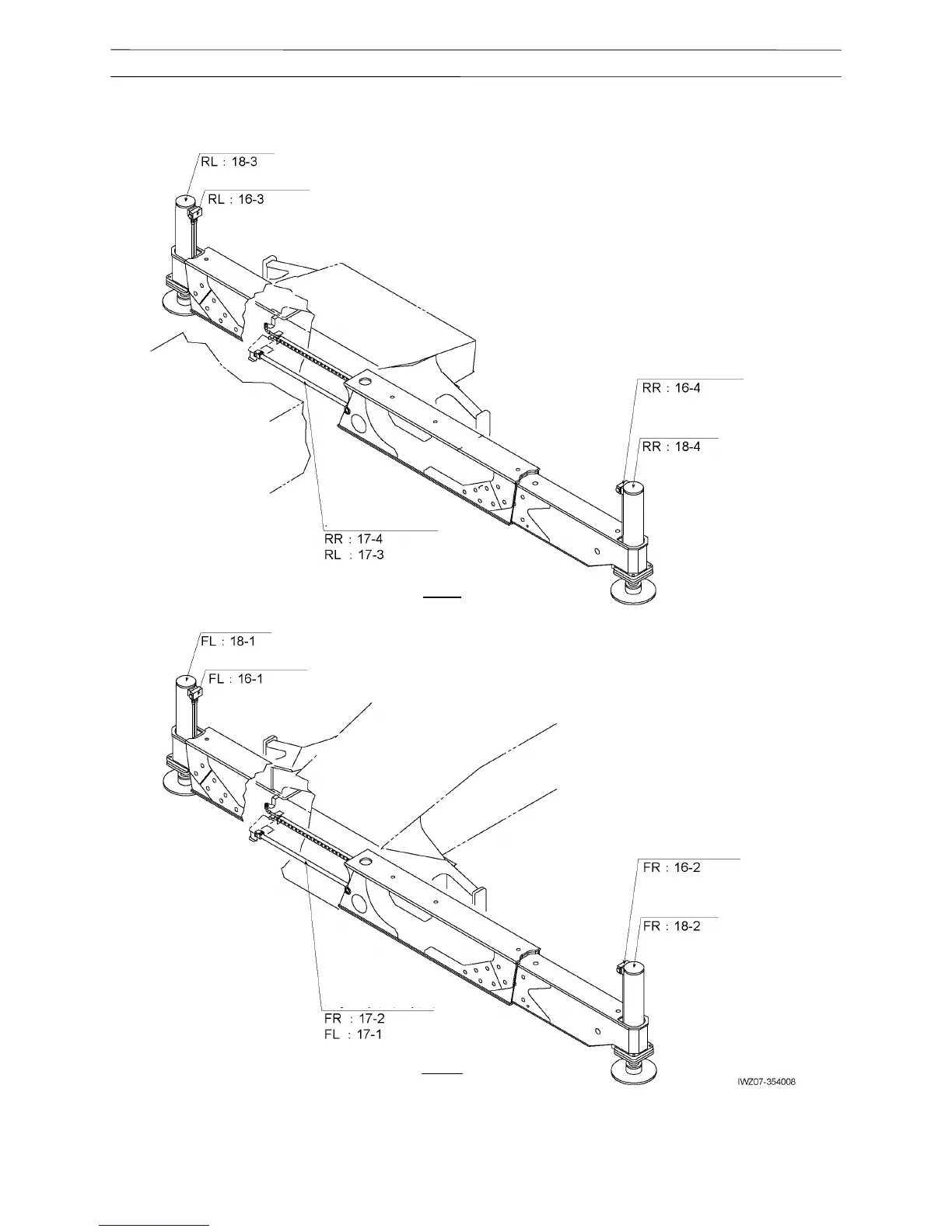

Hydraulic Parts Location Diagram (Lower)
7. Outrigger main body (H type)
△
0
346-117-
40000
Rear
Front
Jack cylinder
Pilot check valve
Jack cylinder
Pilot check valve
Jack cylinder
Pilot check valve
Jack cylinder
Pilot check valve
Extension cylinder
Extension cylinder
