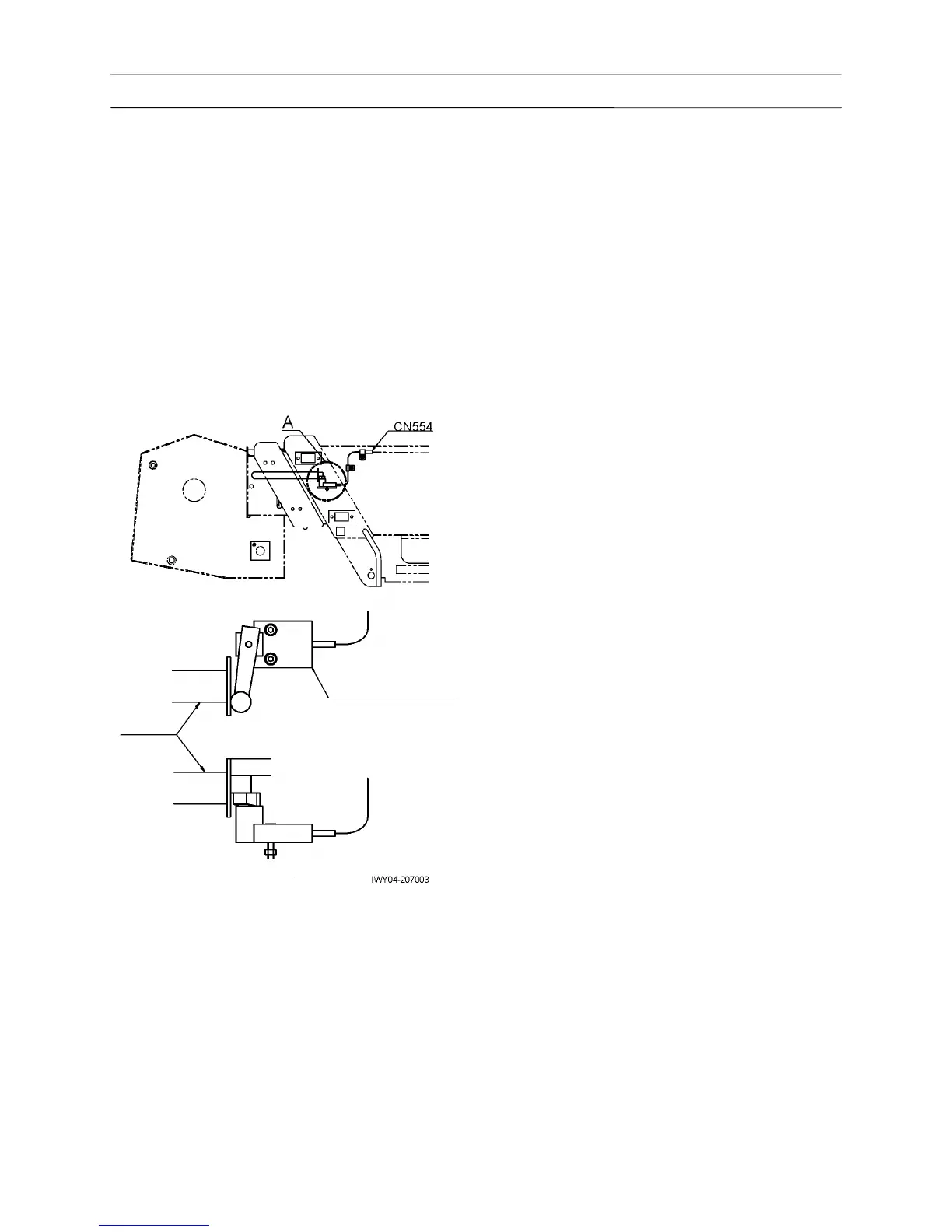

1.5 Jib full retraction detection switch (CN554)
1. Apply a thread locking agent (ThreeBond 1401 or
the equivalent) to the threaded section of the
switch.
2. Install the support so that the switch contact is
closed when the jib is retracted to the position
where it is 5 to 8 mm (0.2 to 0.31 in) longer than
its fully retracted length.
•Switch fixing bolt tightening torque:
4.9 to 5.9 N-m {50 to 60 kgf-cm} (3.6 to 4.4 ft-lbf)
