Y-7 Assembly Adjustment
(Traveling Device)
1. Service brake adjustment
1.1 Adjusting the brake pedal

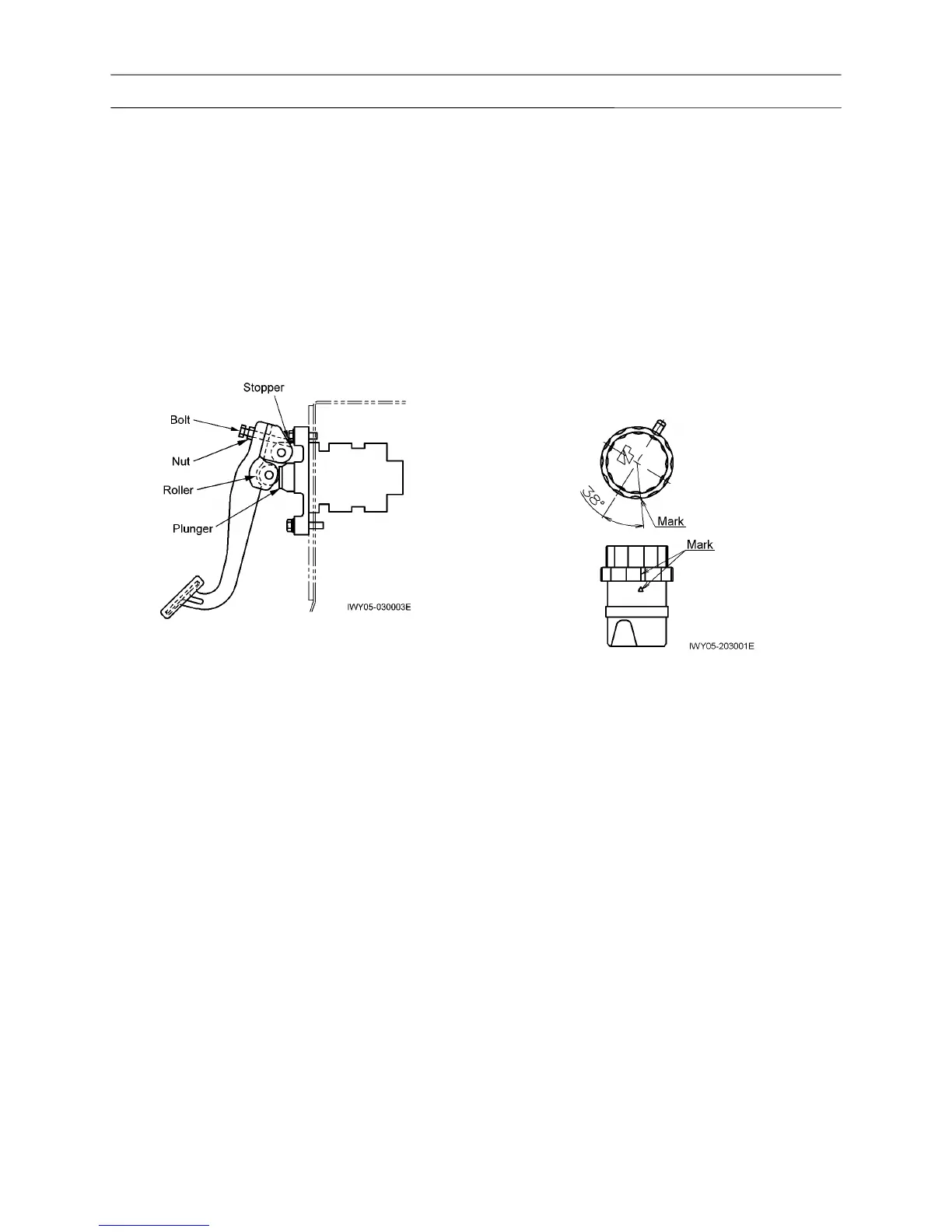

With the pedal weight causing the roller to contact
the plunger, adjust the bolt until it contacts the
stopper, then use the nut to lock it in place.
1.2 Tightening the cap of reserve tank of
service brake fluid
After bleeding air, pour the brake fluid up to a
required level.
[NOTICE]
Tightening the cap excessively may break the
stopper.
1. Tighten the cap until it stops at the stopper.
2. Check that the position of the tank body and cap
is as shown in the figure below.
