Tadano GR-700N - Assembly Adjustment; Vehicle Height Detection

Y-5
Y-5
Adjusting Procedure (Electric)
39
WY04-2071E

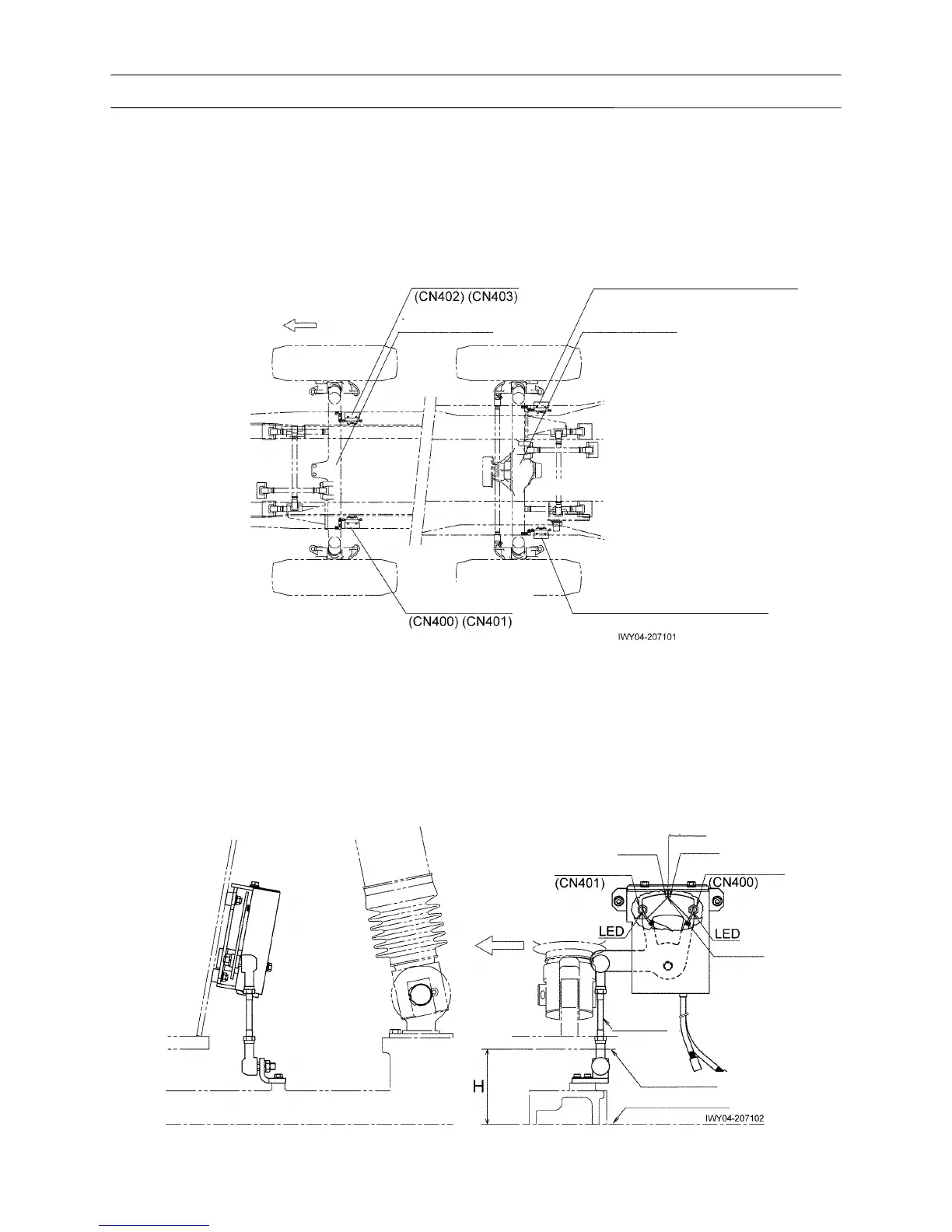

1.11 Vehicle height detection
1.11.1 Assembly adjustment
[NOTICE]
Before making this adjustment, complete the adjustments in 1.11.2 and 1.11.3.
1. Adjust the vehicle height to the normal traveling state.
(1) Direct the boom to the front or rear.
(2) Press the suspension up/down switch so that the dimension H becomes 145 ± 4 mm (5.7 ± 0.16 in).
(When the switch is released, the suspension becomes locked.)
2. Adjust the length of rod assy so that the support slot and lever hole B become aligned.
 Front left
Front
Axle center
Frame bottom face
Rod assy
Slot
Right switch
Hole C
Hole B
Hole A
Left switch
Front
Vehicle height
detection (front left)
Axle (4th axle)
Vehicle height detection (rear right)
(CN406) (CN407)
Vehicle height detection
(front right)
Axle (1st axle)
Vehicle height detection (rear left)
(CN404) (CN405)
