Electric Parts Location Diagram (Upper)
Z-10
Z-10
7
343-546-81000
0
343-546-81001

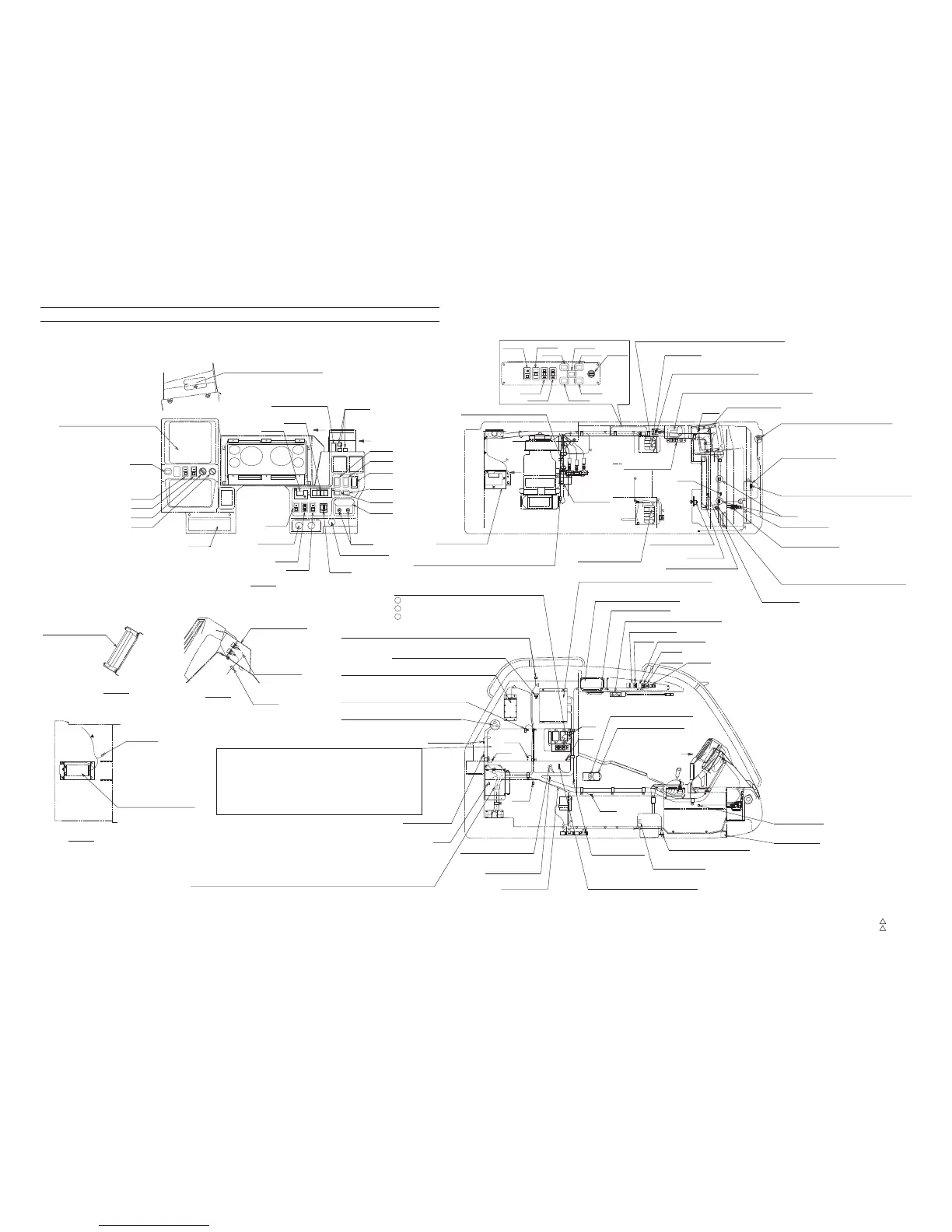

Z-10 Electric Parts Location Diagram (Upper)
1. Inside cab
CN488
Telematics
SCT
(satellite communications
terminal): CN1068
(Option)
Relay assy
GND
GND
GND
Level: CN805
(Built-in LED for illumination)
Transmission selection SW: CN513,CN563
AML external indicator lamp (Option)
GND
For radio speaker
Front wiper motor
Starter SW
View A
View B
View G
View C
Condenser
for front wiper motor noise prevention
(Tighten together with the wiper fixing bolt.)
Condenser
for power window motor noise prevention
(Tighten together with the flasher unit.)
Relay: RA1, RA2, RA3, RA4, RA5, RA6, RA7, RA14, RA26, RA31,
RA94, RB5, R1, R6, R7, R9, R24, R26, R36, R43, R48,
R58, R60, R92, RC1, RC2, RC3, RC7
Emergency transmission, Emergency accelerator,
DPF emergency cancel, Suspension emergency free: CN564
Emergency telescoping: CN503
Fuse (L): CN1610, CN1611, CN1612, CN1613
Fuse (Center): CN874, CN875, CN876, CN877, CN878, CN879
Fuse (R): CN868, CN869, CN870, CN871, CN872, CN873
Connector for Main pressure bleeding: CN820
Connector for DCU2 maintenance: CN639
Connector for ICF maintenance: CN1067
Pressure switch (Stop lamp)
For AML vent solenoid (emergency)
Fix the following connectors with fastener to
be able to pull out from the inspection door.
Condenser
for roof wiper motor noise prevention
Condenser
for power window motor noise prevention
(Tighten together with relay assy.)
CN836
For view system
CN838, CN839, CN840, CN841, CN843
Horn switch
Flasher unit
To Combination switch
Alarm buzzer: CN818
GND
Two-blocking alarm buzzer:
CN817A, CN817B
To Door junction
Switch (for power window)
Step lamp
Harness (main)
Step lamp switch
Converter for tachometer
GSMT
(global system for mobile communications terminal)
Room lamp (door side), Roof wiper motor, Working lamp, Door switch
Radio
Cigarette lighter
Switch assy (DPF)
Combination meter
Tachograph
Air conditioner control panel
Room lamp: CN804
Amplifier (Loudspeaker): CN803
Retarder switch
View switch
AML maintenance connector
(Inside AML maintenance cover)
CN473
1
2
3
Accelerator sensor
Accelerator SW
CN586
CN548
CN470
CN480
CN497
CN502
CN500
CN485CN501
CN498
CN499
CN1072
JC03
CN821
CN806
CN833
JC14
Power supply
for air conditioner
CN802
CN813
CN469
CN461
CN825, CN826
CN866, CN867
DCU2
CN1022,CN1023,CN1024,CN1025,CN1026
CN834
CN835
Idle adjustment SW
CN587
CN1065,CN1066
CN814
CN809
CN568
CN531
CN511,CN562
CN830
JC07,JC08
CN801
CN812
AML-C
CN557
CN824
CN800
CN1020
CN1083
JC12
C
G
B
A
CN640, CN641, CN642, CN643
CN644, CN645, CN646, CN647
CN648
JC10
JC11
JC15, JC16
CN737 (Option)
JC01, JC02
JC04
JC06
JC05, JC09, JC13
ICF
CN505
CN447
CN484
CN509
CN558
CN1381
CN1385
Harness (DPF)
CN514
CN1381
CN494
CN496
CN478
CN467
CN479
CN477
CN846
CN559
CN476
CN475
CN510
CN472CN495
CN468
CN487
CN678
CN1380, CN1384
Water pump (W/P): CN1605
Air conditioner accessory: Harness 2-pole connector
4th-Top boom section extending SW (ISO layout)
CN506
4th-Top boom section
extending SW
(TADANO layout)
CN507
CN574 (Option)
CN560 (Option)
Joint connector to “slewing table, right”: CN887, CN889, CN890, CN891, CN1206
Joint connector to “slewing table, left”: CN893, CN894, CN921, CN1331
Center joint: CN880, CN881, CN882, CN883, CN884, CN885
Slewing angle detector: CN580
