Tadano GR-700N - Jib

53 53
Z-10
WZ02-6161E

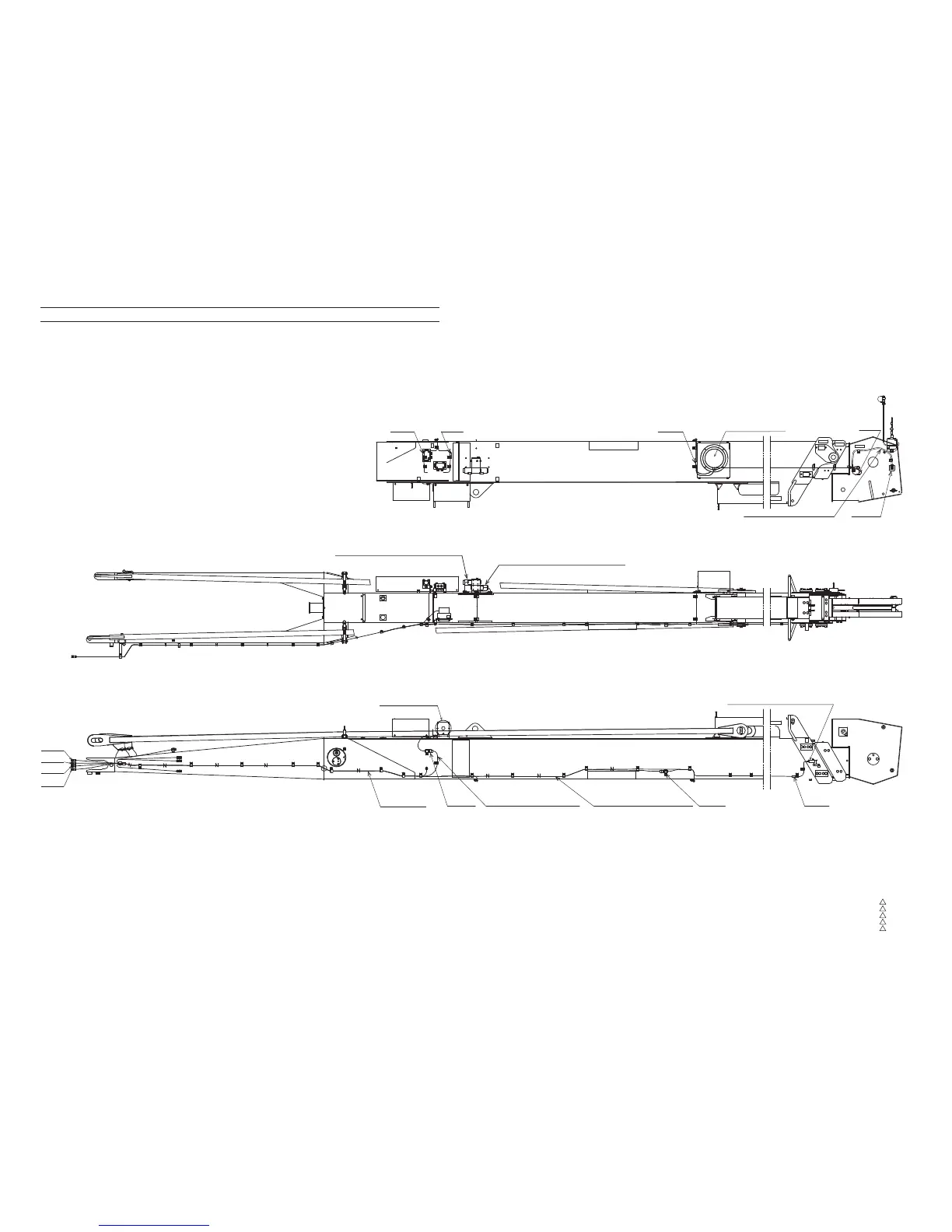

Electric Parts Location Diagram (Upper)
6. Jib
Z-10
Z-10
IWZ02-616006aE
1
343-729-20000
2
343-547-01000
0
343-547-02001
1
343-547-04001
0
343-547-03001
Jib angle detector
CN694
CN694 Jib tilt/telescoping selection
CN578 Jib angle detection
CN577 Jib length detection
CN901 Jib two-blocking detection
CN578
CN577
CN901
Jib full retraction detection switch
CN861
CN1602 CN554CN1603 Harness (Jib length detection)
CN902Harness (Jib two-blocking 1)
Harness (Jib)
Harness (Jib angle detection)
Jib length detector
CN860
CN197
Jib tilt/telescoping selection solenoid (2)
CN196
Jib tilt/telescoping selection solenoid (1)
CN196 CN197
