Tadano GR-700N - Shim Adjustment at Sides of the Boom Bottom

Y-6
Y-6
Assembly Adjustment (Crane Operation)
50
WY05-3911E

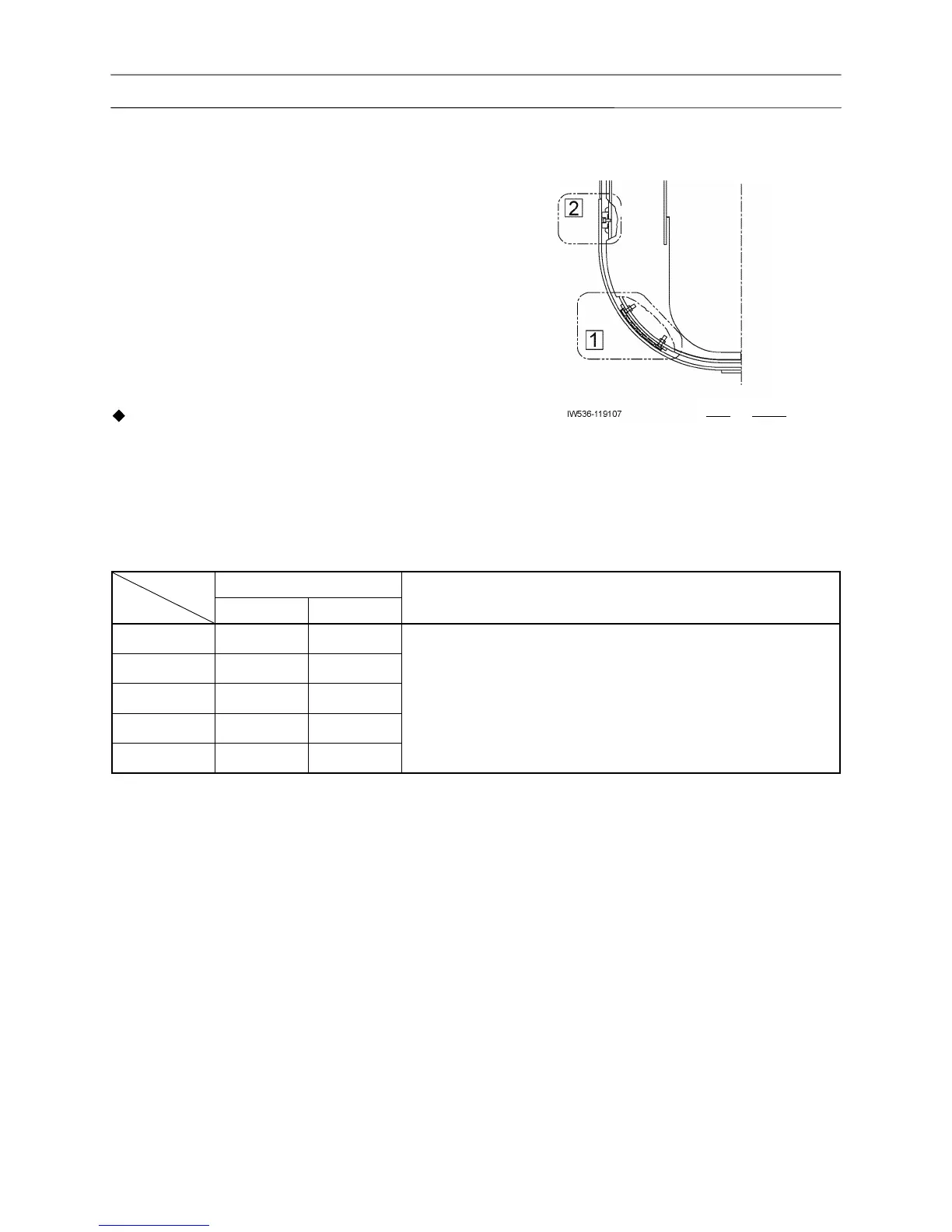

2.3 Shim adjustment at sides
of the boom bottom
(section [2] indicated in Figure 1)
1. Measure the inner dimension of the outer boom
box at the sliding position of the slide plates at
approximately 1.5 m (4.92 ft) from the boom
bottom.
2. Then, divide the dimension evenly between right
and left sides, and insert shims so that the gaps
become the minimum clearance.
[NOTICE]
If the boom cannot be inserted, measure the inner
dimension of the outer boom box at the boom
bottom.
3. Apply a thread locking agent (ThreeBond 1401 or
the equivalent) to the fixing bolt. Lightly tighten it
and then untighten it for 1/4 turns.
Standard number of shims
Remarks
1.0-mm thick
0.6-mm thick
2nd boom 2 0
If the total thickness of shims in a single side is 4 mm (0.16 in) or
more, make sure to use the slide plate with the thickness of 19
mm (0.75 in) (standard: 15 mm (0.59 in)).
3rd boom 3 0
4th boom 3 0
5th boom 2 1
Top boom 3 1
Left Right
