Version: 1.06 11
2. The Hardware Concept
TB
OX
MS is a Modular System.
TB
OX
MS is built using Racks and Cards.
Depending on your needs in communication(s) and in Inputs/Outputs, you select the
elements required.

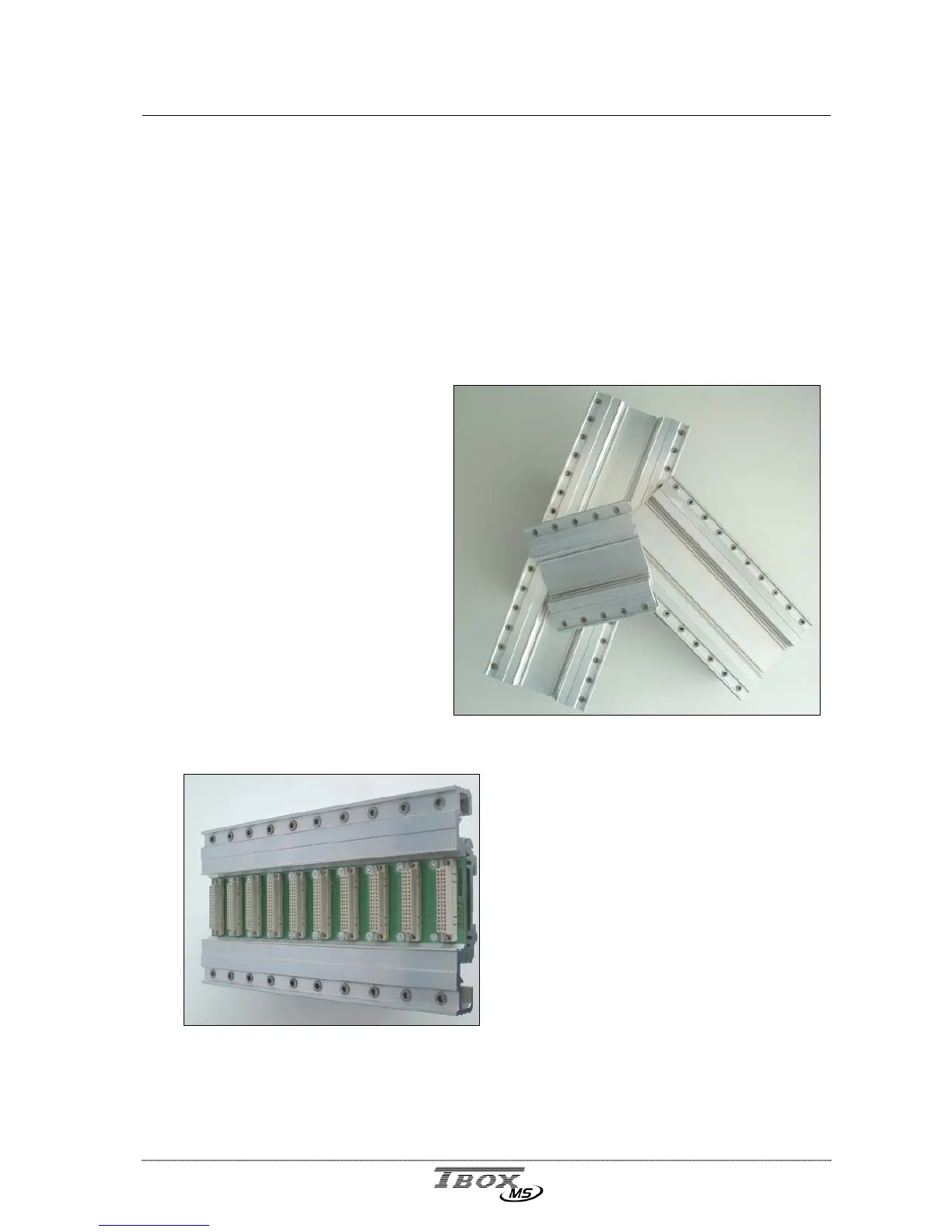

2.1. The Racks
Racks are made in aluminium
alodined, giving a very good
electrical conductivity and
equipotentiality
There are 4 models of Racks:
5 slots
10 slots
15 slots
20 slots
