Techno Trade TBOX MS - Racks & Cards

Version: 1.06 118
18. Racks & Cards

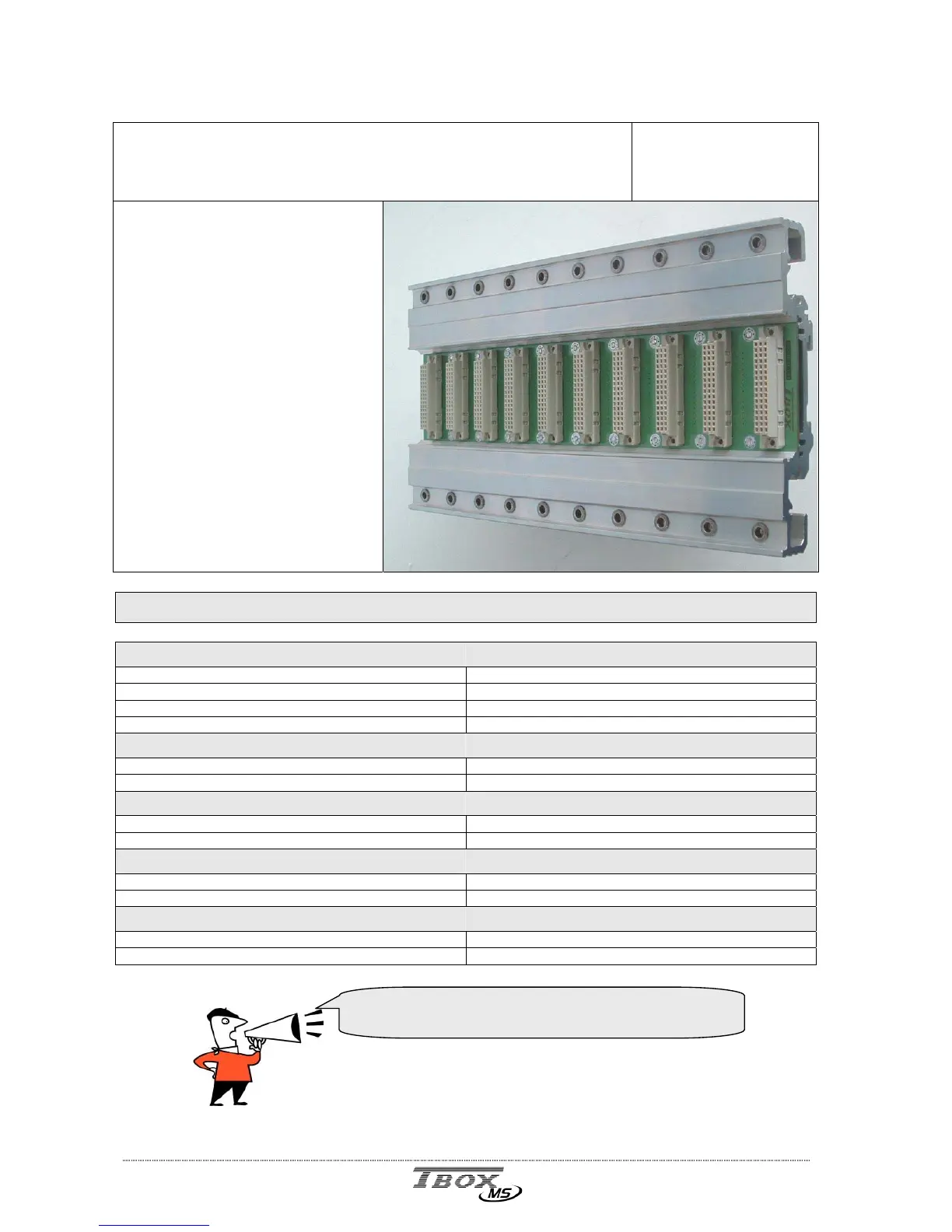

18.1. Racks
References:
MS-RACK5
MS-RACK10
MS-RACK15
Racks used as base for the Cards.
Exist in 4 versions:
Rack 5 slots
Rack 10 slots
Rack 15 slots
Rack 20 slots
T ECHNICAL S PECIFICATIONS
General
Speed Maximum: 1 Mbytes / second
PCB 6 layers
Component NO component. Bus Passive
Fixing DIN rail
Dimensions: BUS 5
Without card Height x Length x Depth: 150 x 150 x 30 mm
Weight 600 gr.
Dimensions: BUS 10
Without card Height x Length x Depth: 150 x 300 x 30 mm
Weight 1200 gr.
Dimensions: BUS 15
Without card Height x Length x Depth: 150 x 450 x 30 mm
Weight 1800 gr.
Dimensions: BUS 20
Without card Height x Length x Depth: 150 x 600 x 30 mm
Weight 2400 gr.
Insertion of cards in the Rack is explained chapter 4
