Techno Trade TBOX MS - Power Supply

Version: 1.06 130
C ABLING
Power Supply
Description:
Power Supply
Connector: VDC-IN CTRL
Screw connector (4 x 5.08 mm)
DI - DO
Description:
Synchronization Input / Output
Connector: VDC-IN CTRL
S CREW CONNECTOR (4 X 5.08 MM )
The synchronization I/O can
be cabled only within the same
cabinet, between several
Racks.
It is used to synchronize
‘Actions’ on the different CPU.
See XXX for programming
synchronization

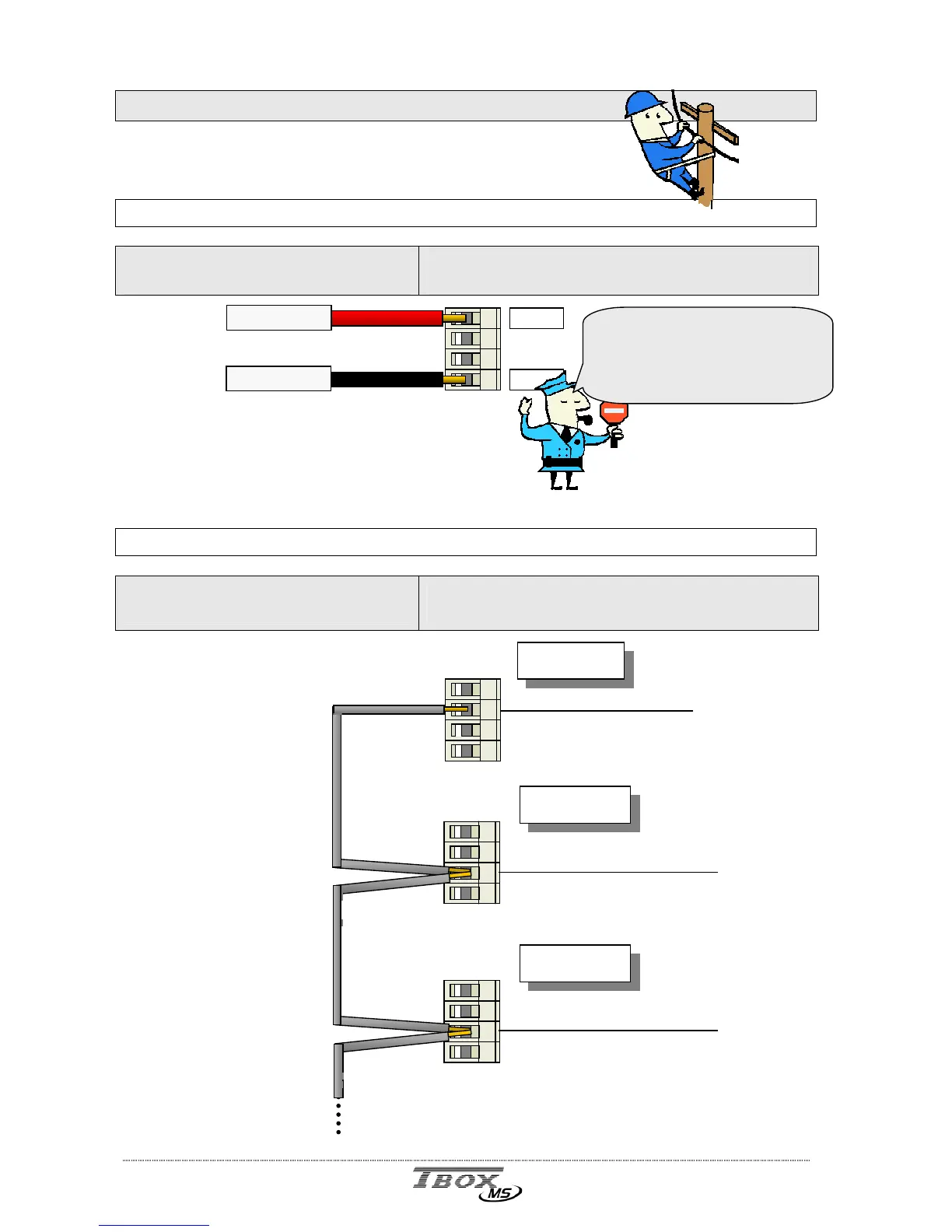

1 2 3 4
0
V
+6 .. +30 VDC
Gnd
V in
1 2 3 4
1 2 3 4
DO : Sync. Output
MAIN CPU
1 2 3 4
Remote CPU
Remote CPU
Gnd
Gnd
Gnd
DI : Sync. Input
DI : Sync. Input
When using a Power Supply
card (see previous), you do not
cable Power supply of the
CPU
