Version: 1.06 35

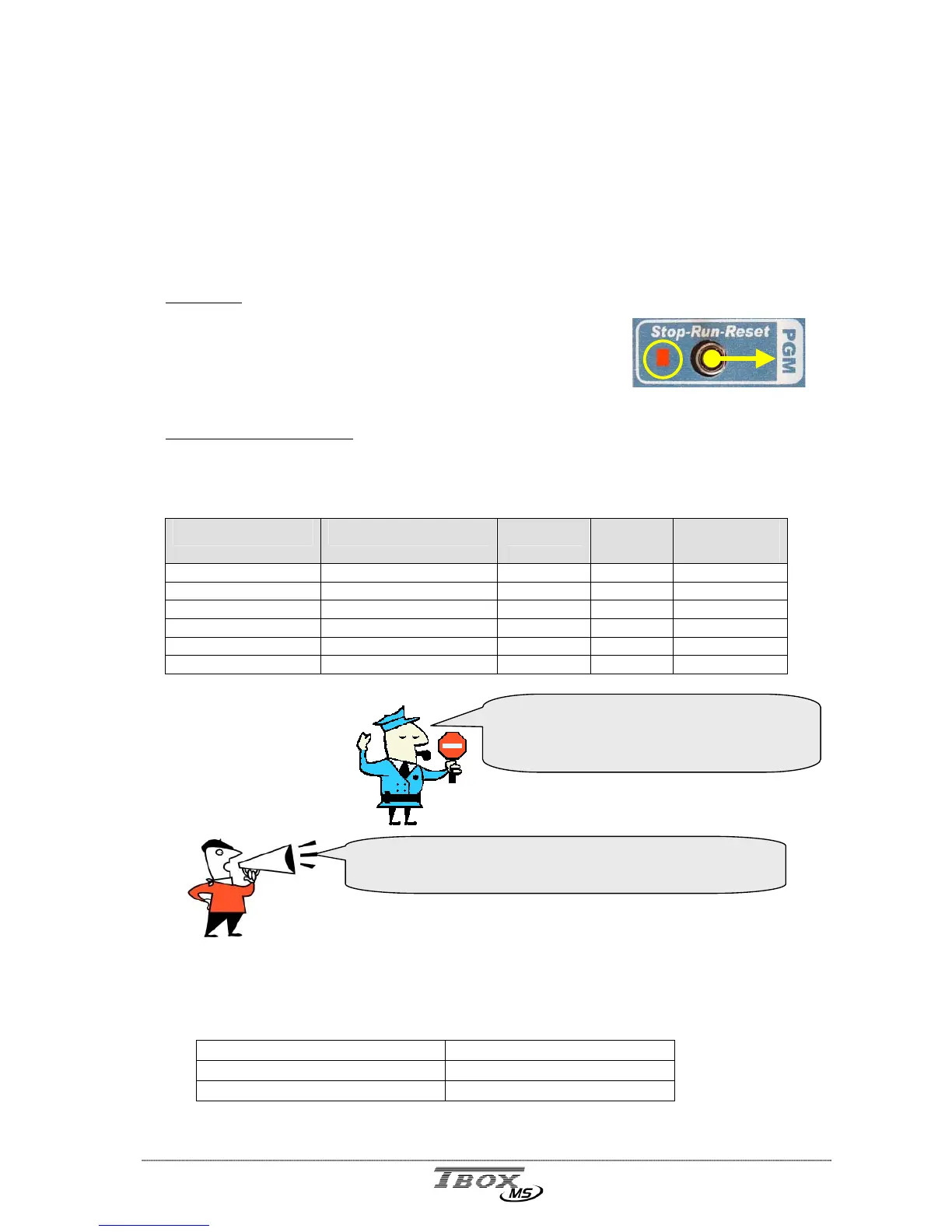

6.5. Global reset of TBox MS

The Global Reset is used to set TB

MS in a default, well-known configuration, in case

it does not communicate anymore.

This is very useful when you take a CPU from the stock and you have no idea how the port

you want to communicate with is configured.

The global reset is achieved using the button on the front side of the CPU

Procedure:

• Push and maintain the button to the ‘Reset’ side

• Let the LED flashes 3 times

• Release the button

Global reset configuration:

The global reset mode is indicated by the LED flashing at 0.5 hz (instead of 2 hz in RUN

mode). In this mode, the TB

MS is configured like following:

Port Baudrate Protocol Station

address

COM1 (RS232) 9600,N,8,1 ModBus 1 -

COM2 (RS485) 9600,N,8,1 ModBus 1 -

COM3 (Ethernet) - - 1 maintained

MS-PSTN; MS-GSM - ModBus 1 -

RS232 - modem maintained ModBus 1 -

RS232 - local 9600,N,8,1 ModBus 1 -

6.6. LED « RUN »

This LED, next to the “Reset” button indicates the status of the CPU:

Program runs 2 Hz

Program stopped 0.5 Hz

Operating System stopped 8 Hz

More information about working modes of TB

MS in

the technical specifications at the end of this manual

The Global Reset does not erase the

current program. Doing an ordinary

Reset will restart the program.
