4.4. Hardware vs. Software Address of Cards

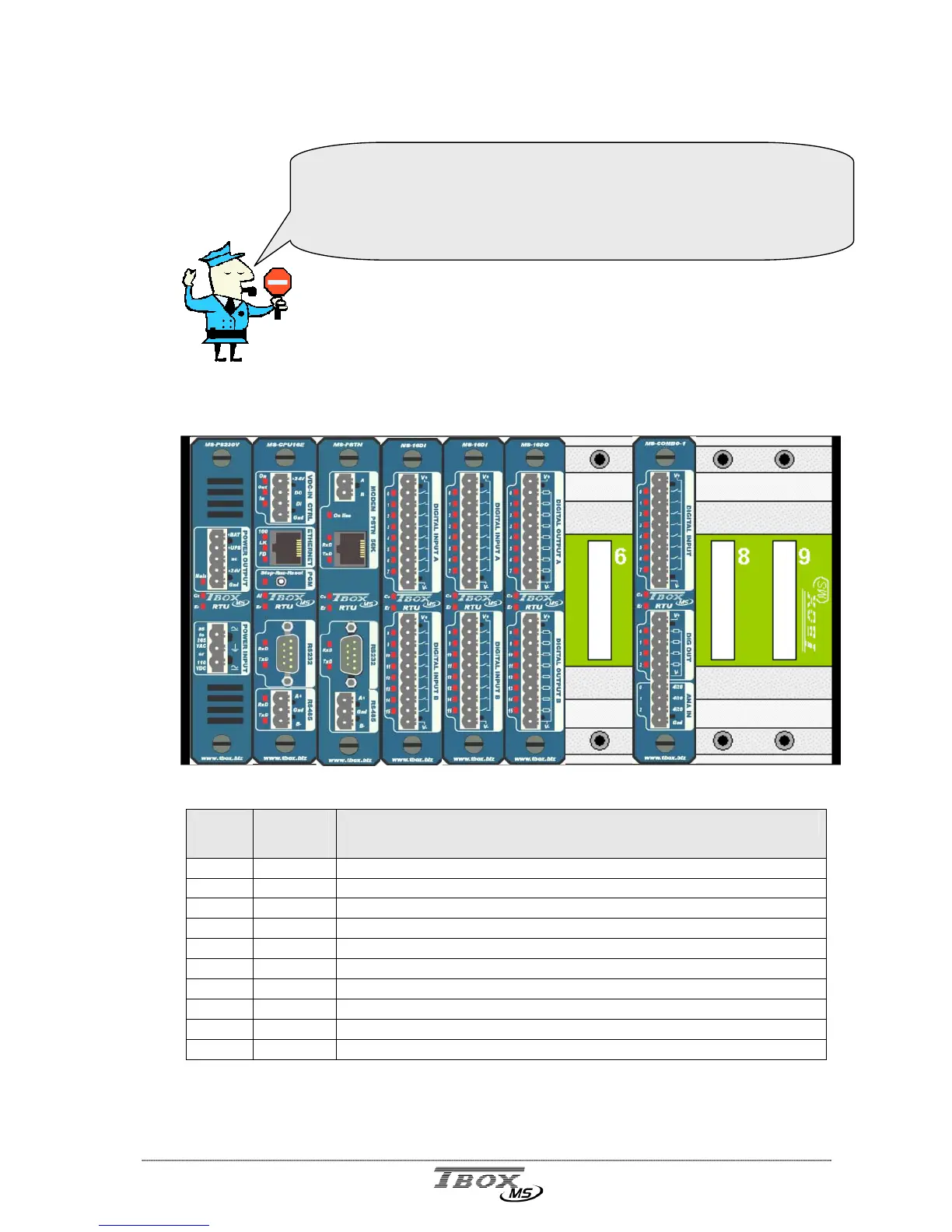

With the following set of Cards on a Rack 10:

Slot

(hard)

Address

(soft)

Card Description

0 1 Power Supply – 230 AVC

1 0 CPU 16

2 2 Modem PSTN

3 3 16 Digital Input

4 4 16 Digital Input

5 5 16 Digital Output

6 - empty

7 7 Combo (combination Input/Output)

8 - empty

9 - empty

Later in this document, we will see how to use the software TWinSoft,

the tool for programming TB

MS.

But as we mention slot index of the Rack, it is important to relate it to the

corresponding software address.
