13.2. The chronologies
13.2.1. Digital chronologies

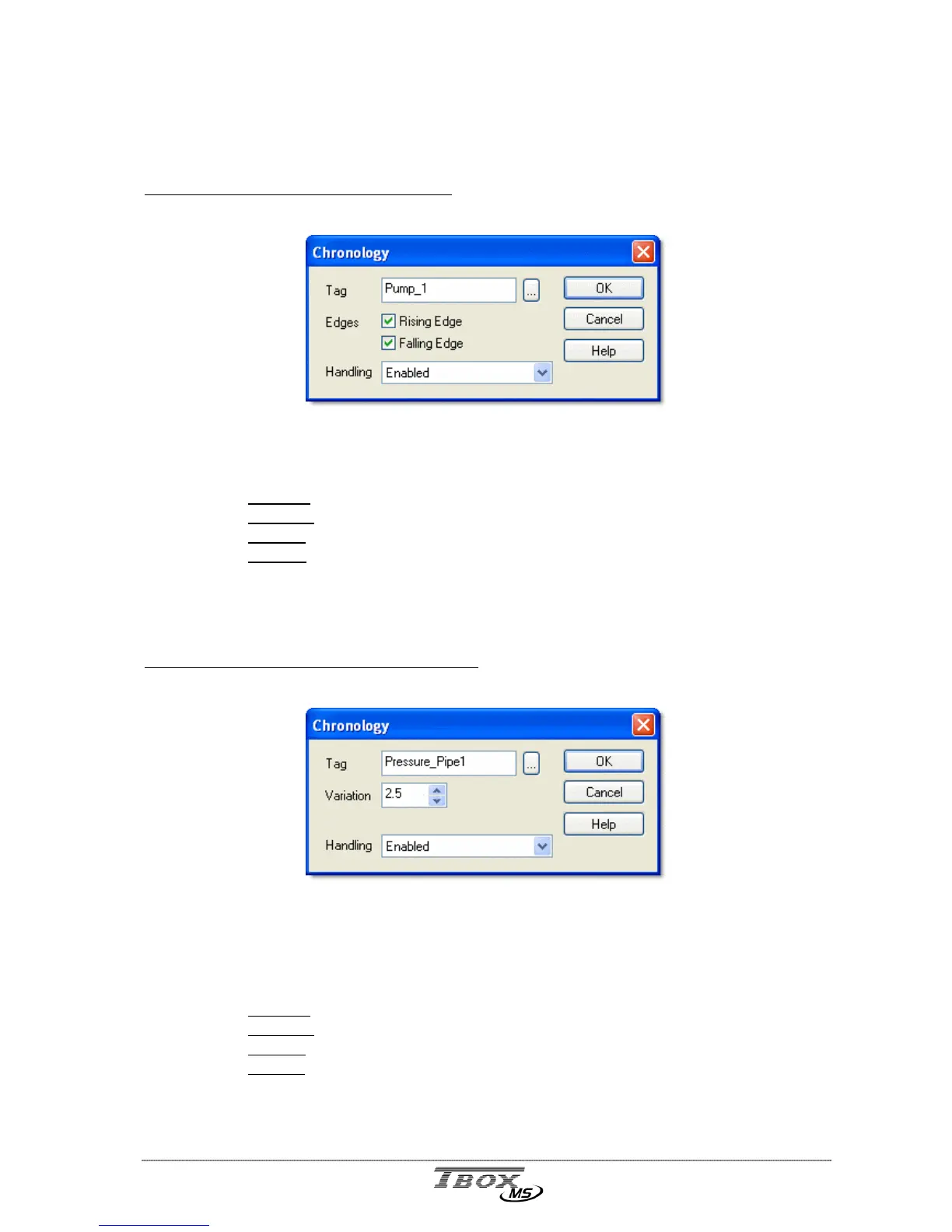

Example of an entry in Digital chronology: Recording of the starting and stopping of a
‘Pump_1’.
Edges: Recording on positive and (or) negative edge.
Handling:
 Enabled:
always recorded.
 Disabled:
never recorded.
 PowerF:
recording disabled in case of main power failure.
 DisCRD:
recording disabled when the system variable ‘DisCRD’ is at 1.
13.2.2. Analog chronologies
Example of an entry in Analog chronology: Recording of a variation of 2.5 bars in
‘Pressure_Pipe1’ input.
Variation: Recording in case of variation (higher or lower) in comparison with the previous
recording. The unit is expressed according to the format selected in the Tag
definition (see chapter 10.2.2:
Analog Tags ).
Handling:
 Enabled:
always recorded.
 Disabled:
never recorded.
 PowerF:
recording disabled in case of main power failure.
 DisCRA:
recording disabled when the system variable ‘DisCRA’ is at 1.
