Version: 1.06 133

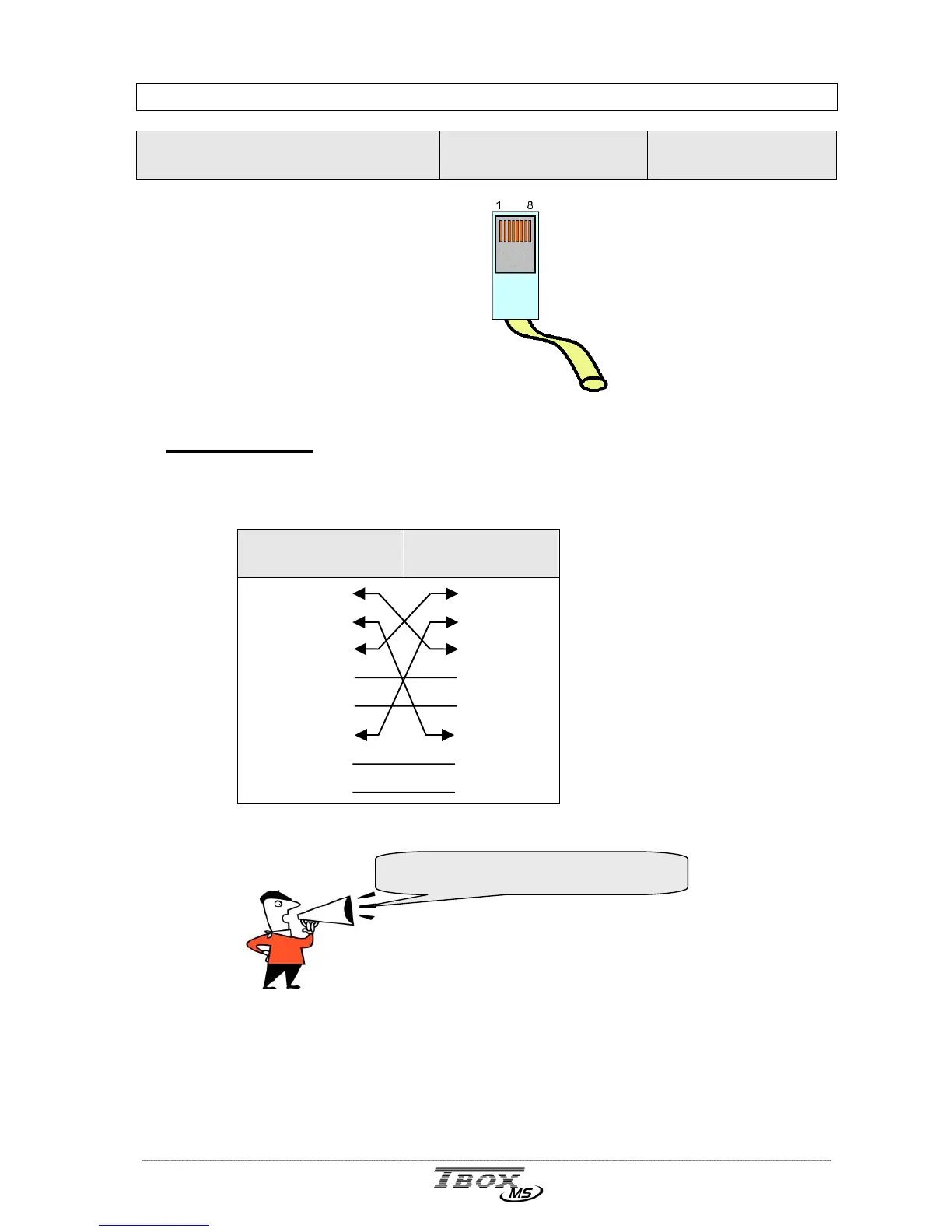

Ethernet
Description:
Ethernet
Connector: RJ45 Pin out:
1. Tx+
2. Tx-
3. Rx+
4.
not used
5.
not used
6. Rx-
7.
not used
8.
not used
Cross over cabling
To cable TB
OX MS directly to a PC, without HUB or Switch, you can use a X-over cable:
TB OX MS – COM4
RJ45
PC – Ethernet
RJ45
Tx + 1 1 Tx +
Tx - 2 2 Tx -
Rx + 3 3 Rx +
n.u. 4 4 n.u.
n.u. 5 5 n.u.
Rx - 6 6 Rx -
n.u. 7 7 n.u.
n.u. 8 8 n.u.
Even if pin 4, 5, 7, 8 are not used, they
must be cabled.
