Version: 1.06 146
16 x Digital Inputs/Outputs (next)

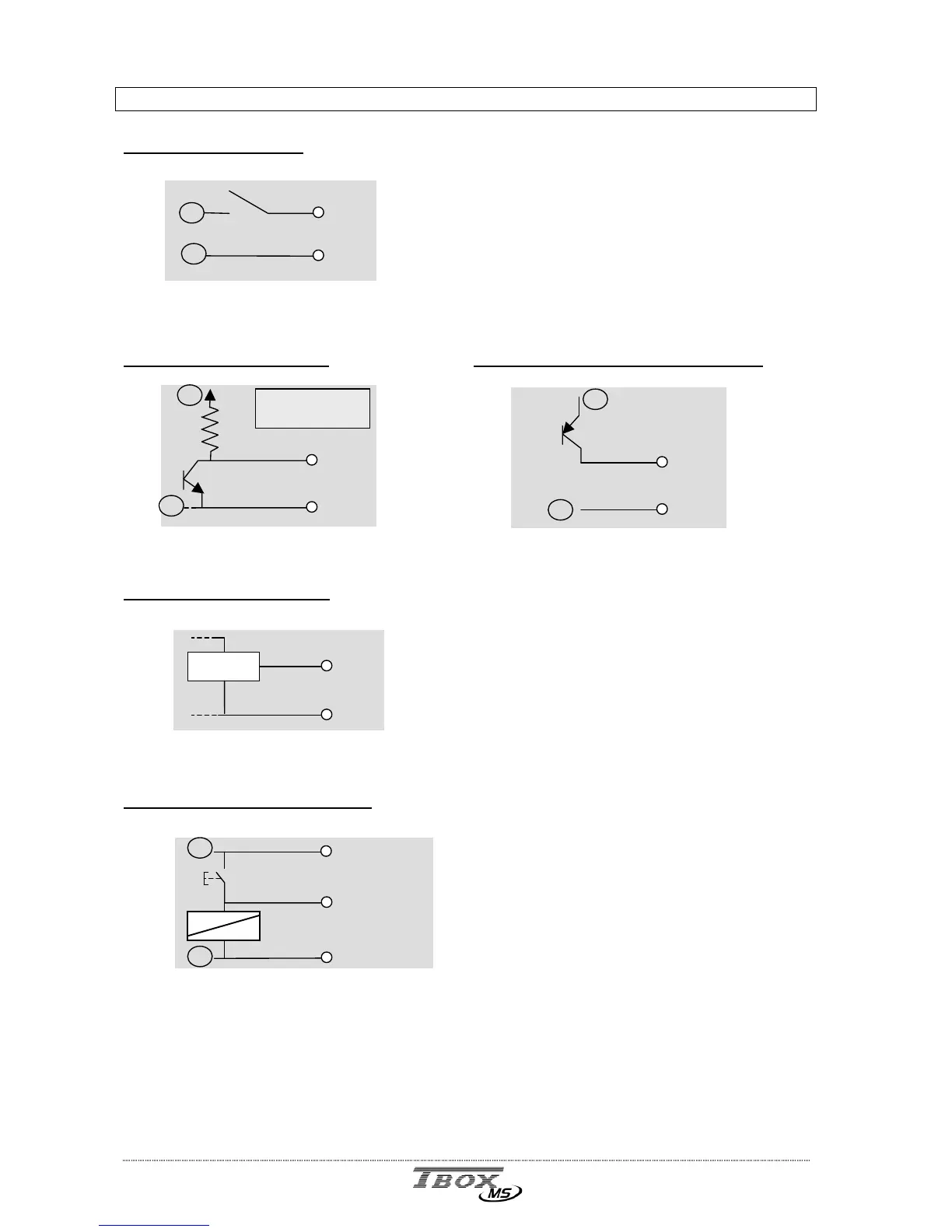

Cabling to Dry contact
Cabling to NPN transistor
Cabling to PNP transistor (or OPTO)
Cabling to Voltage sensor
Cabling both Input and Output
This type of cabling can be used in 2 cases:
1. Manual activation of the Output: as long as the button is pressed, the output is forced
2. Activation of the Output during a time determined in the Program. You maintain the
button until it is detected by the program and has switched the output.
Sensor
V -
Input x
Input x
V-
V+
V-
Input x
V -
R
R : 1 k (12 VDC)
10 k (24 VDC)
V+
V-
Input x
V -
V+
V-
V -
Input/Output x
V+
V-
V +
