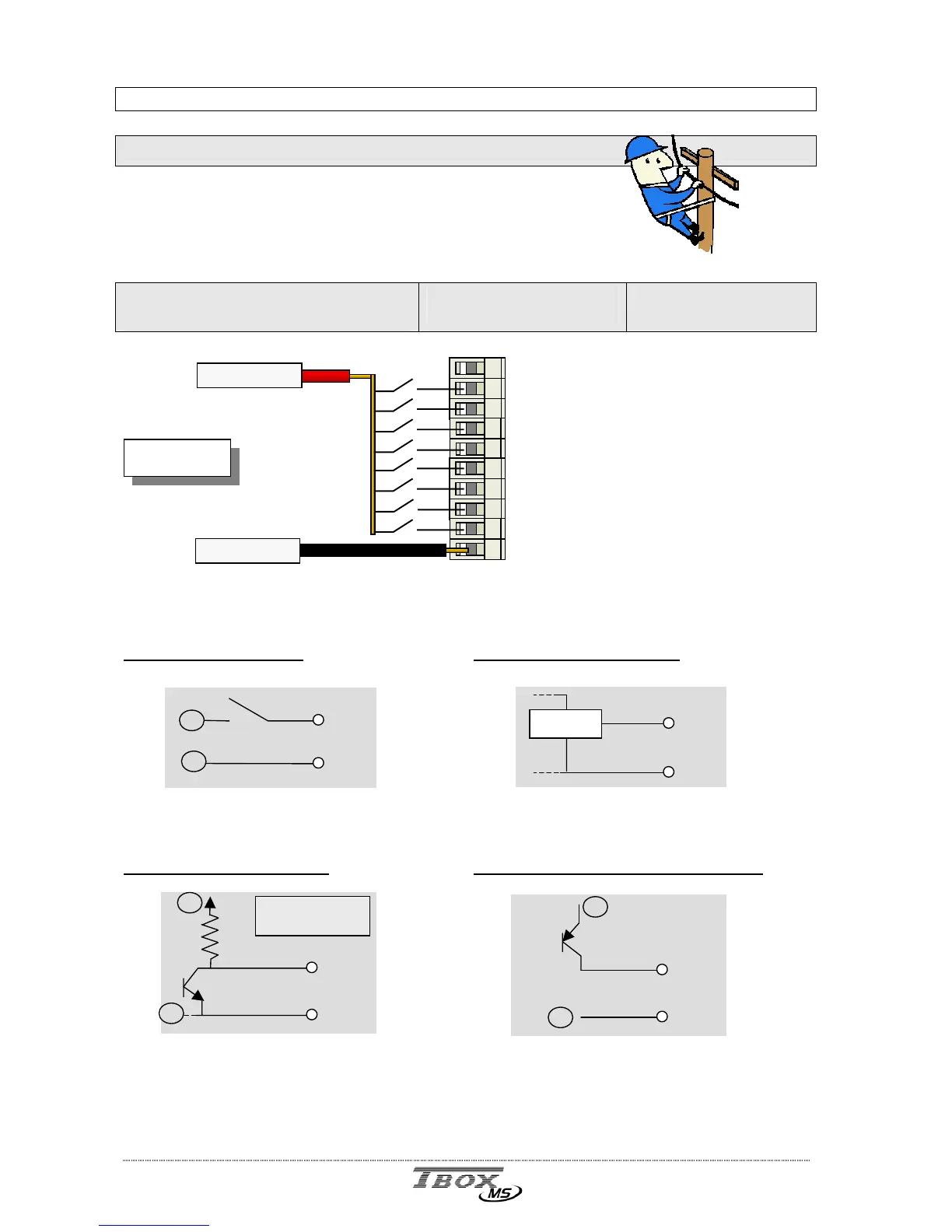

C ABLING – D IGITAL I NPUTS
Description:
Cabling of inputs
Connector:
Screw connector
Pin Out:
1 NC
2 Input 0
3 Input 1
4 Input 2
5 Input 3
6 Input 4
7 Input 5
8 Input 6
9 Input 7
10 V-
Cabling to Dry contact
Cabling to Voltage sensor
Cabling to NPN transistor
Cabling to PNP transistor (or OPTO)
1 2 3
4 5
6 7 8
9 10
0
V
+12 .. 60 VDC
Group A
Sensor
V -
Input x
Input x
V-
V+
V-
Input x
V -
R
R : 1 k (12 VDC)
10 k (24 VDC)
V+
V-
Input x
V -
V+
V-
