8 ANAIN (next)
C ABLING – A NALOG I NPUTS
Description:
Cabling of 4..20ma sensors
Connector:
Screw connector
Pin Out:
1 Input 0 - Temperature
2 Input 0 - Voltage
3 Input 0 - Current
4 Input 1 - Voltage
5 Input 1 - Current
6 Input 2 - Voltage
7 Input 2 - Current
8 Input 3 - Voltage
9 Input 3 - Current
10 V-
Description:
Cabling of 4..20ma sensors
Connector:
Screw connector
Pin Out:
1 Input 0 - Temperature
2 Input 0 - Voltage
3 Input 0 - Current
4 Input 1 - Voltage
5 Input 1 - Current
6 Input 2 - Voltage
7 Input 2 - Current
8 Input 3 - Voltage
9 Input 3 - Current
10 V-

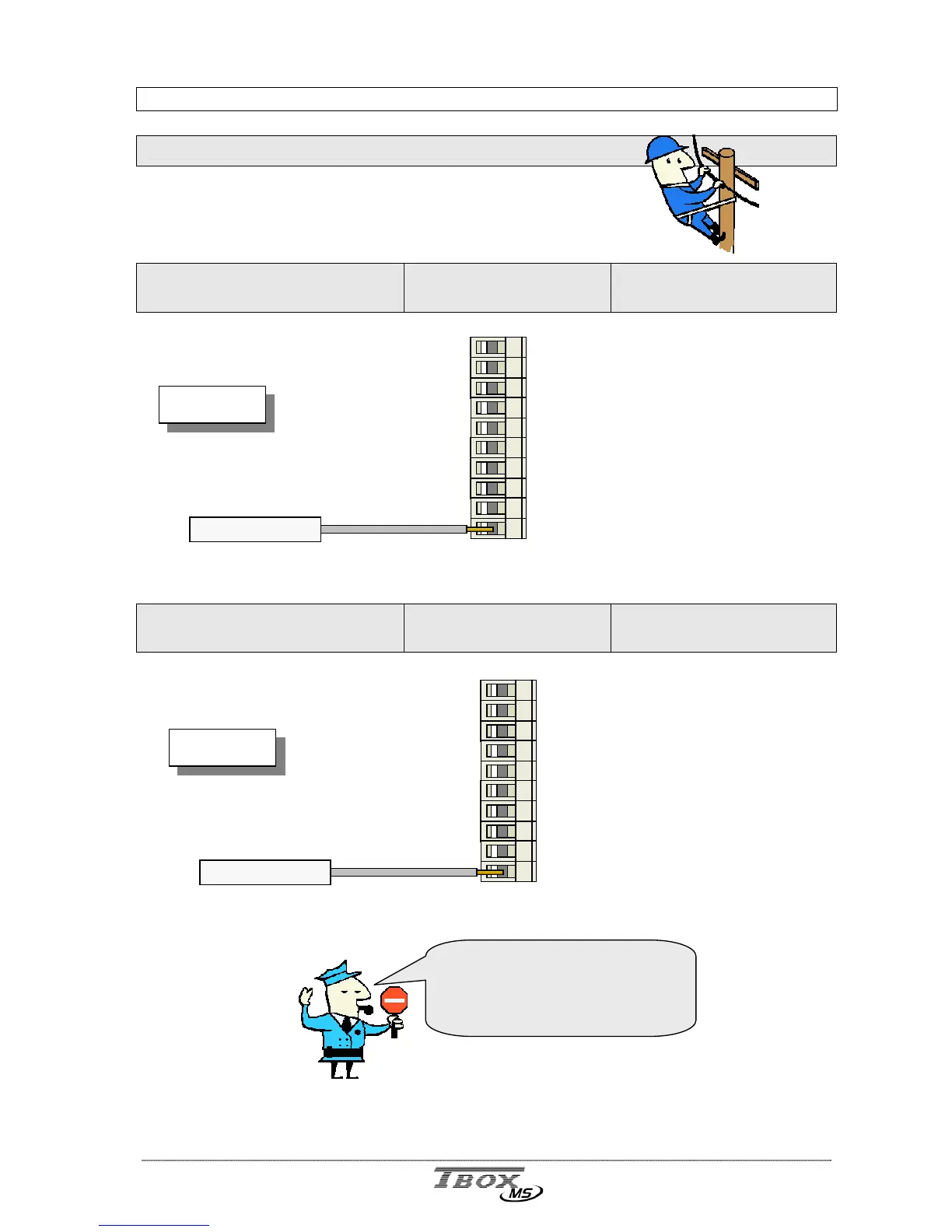

1 2 3
4 5
6 7 8
9 10
Group A
0 V
(
of sensors
)
1 2 3 4 5 6 7 8 9 10
Group B
0 V
(
of sensors
)
Isolation is global.
It means both V- are connected
together and must be cabled to
the same reference.
