Techno Trade TBOX MS - Page 181

Version: 1.06 181
RS 232
Description:
RS232
Connector: RS232
9 Pin Sub D
Pin out:
1. DCD (input)
2. RxD (input)
3. TxD (output)
4. DTR (output)
5. Gnd
6. DSR (input)
7. RTS (output)
8. CTS (input)
9.

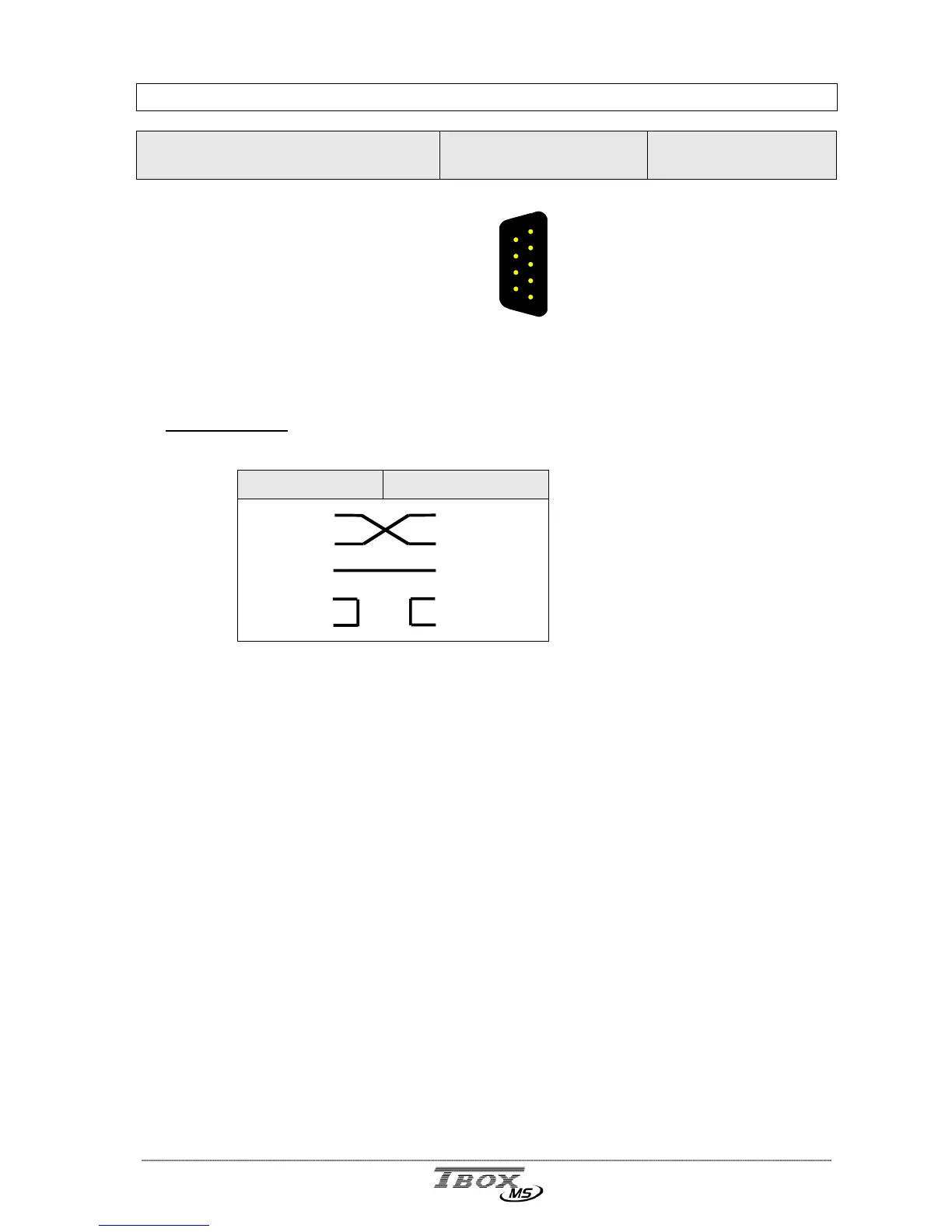

Cabling to a PC
TB OX MS - COM1 PC - DB 9
RxD 2 2 RxD
TxD 3 3 TxD
GND 5 5 GND
RTS 7 7 RTS
CTS 8 8 CTS
1
5
9
6
