Working without Power supply, cabling of the CPU:
0
V
+6 .. +30 VDC
Example:
-

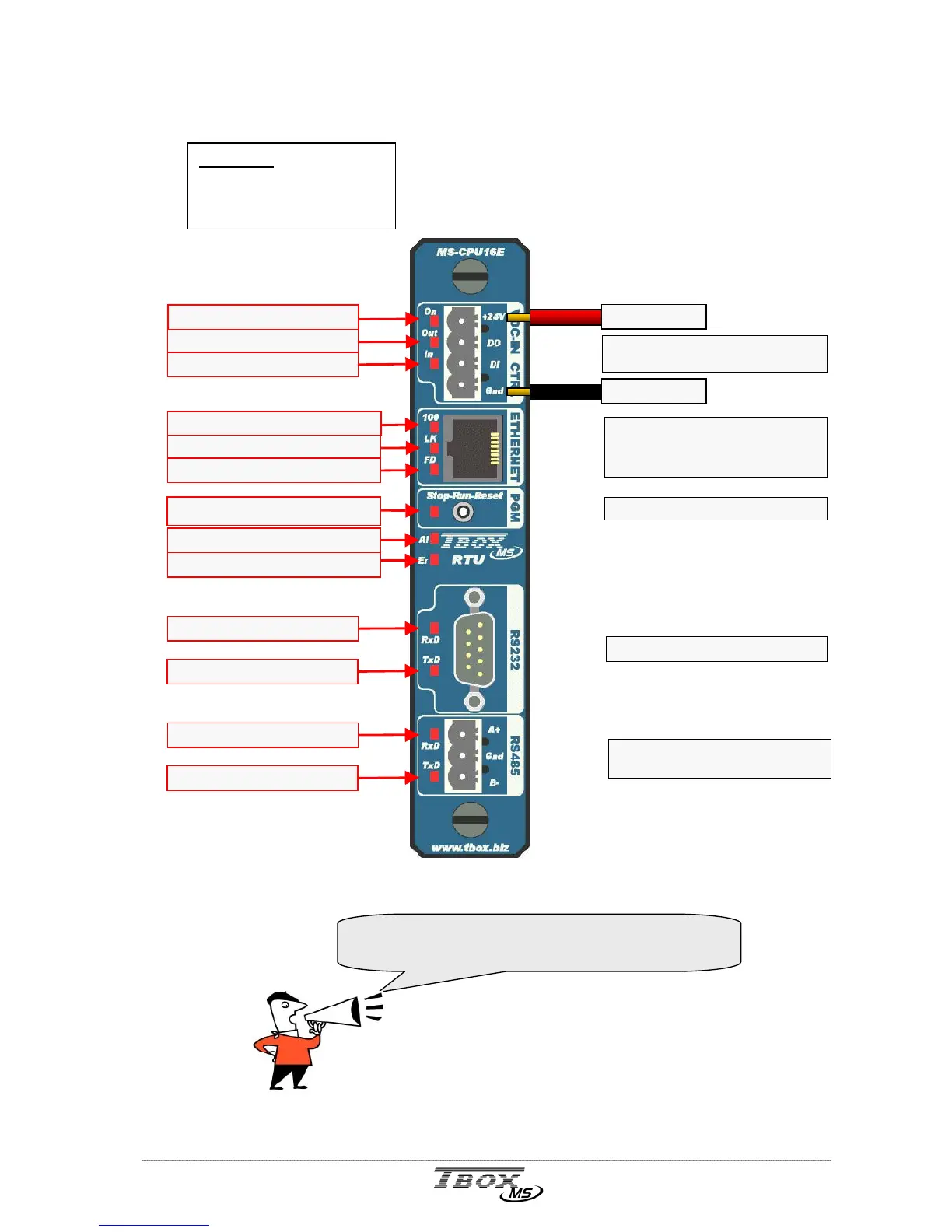

CPU16 with Ethernet
(ref MS-CPU16E)
Main voltage presen
t
‘Sync.’ output active
‘Sync.’ input active
RS 232 : for programming
RS 485 : for communicating to
other Racks / devices
Ethernet : for programming,
communicating to other Racks /
devices
Button: STOP - RUN - RESET
DO : Output for synchronization
DI : In
p
ut for s
y
nchronization
ON: 100 Mbps - OFF: 10 Mbps
ON: Link - Flash: Communication
Full Duple
x
8 hz: sending alarm
2 hz: RUN - 0.5 hz: STOP
CPU in defaul
t
RS232: receiving data
RS232: transmitting data
RS485: receiving data
RS485: transmitting data
More information about cabling and technical
specifications is available at the end of this manual
