Annex B Examples of DUT-E CAN connection
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 106
Annex B
Examples of DUT-E CAN connection

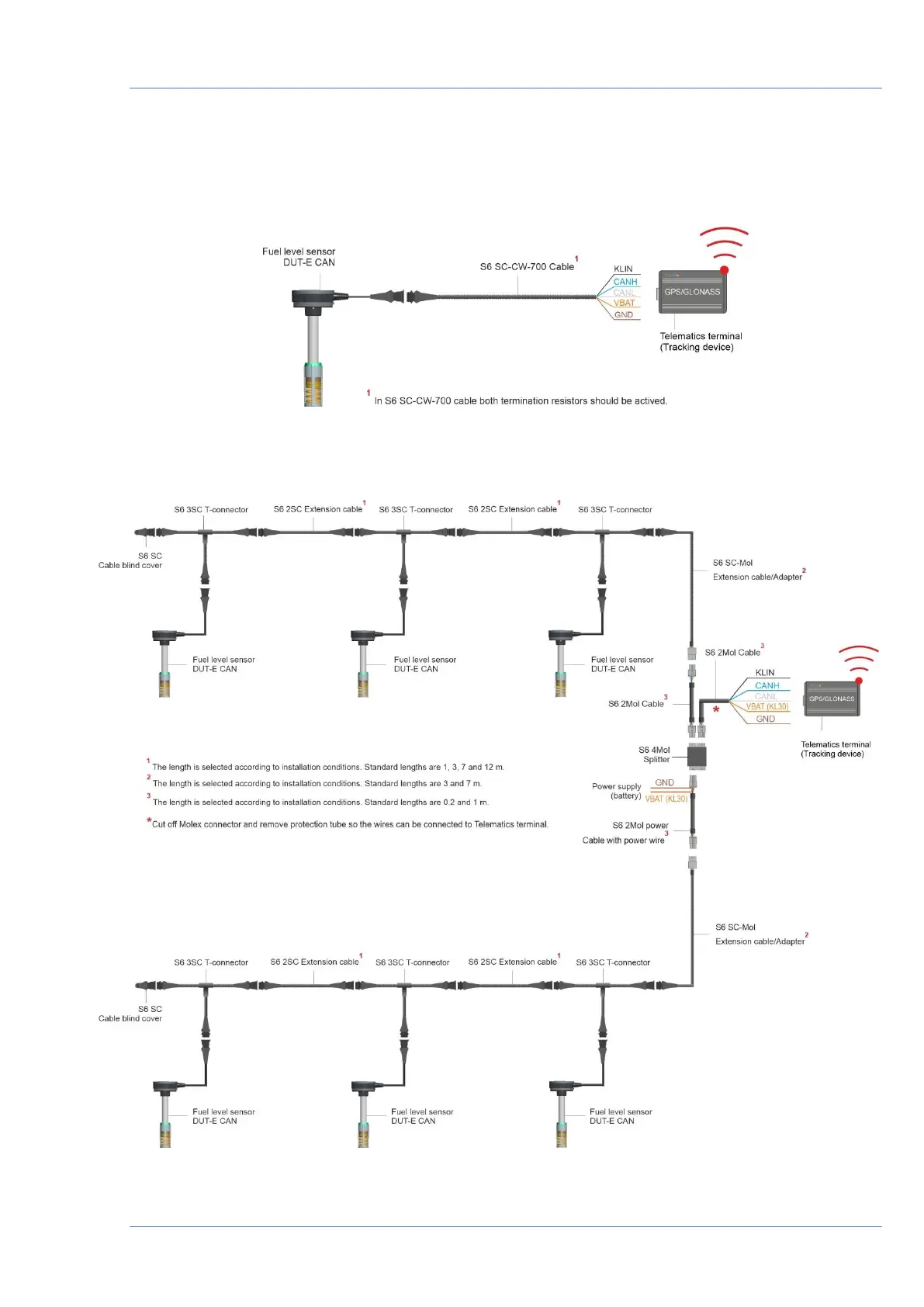

Figure B.1 — Connecting one DUT-E CAN to the Telematics terminal which is incompatible
with S6 cable system
Figure B.2 — Connecting several DUT-E CAN to the Telematics terminal which is incompatible
with S6 cable system
