General information and technical specifications of DUT-E / Exterior view and delivery set

DUT-E fuel level sensors. Operation manual. Version 8.1

1.2 Exterior view and delivery set

1 - DUT-E fuel level sensor – 1 pc.;

2 - Specification with factory settings sheet – 1 pc.;

3 - SC-CW-700-RS signal cable (7.5 m) – 1 pc.*;

4 - Mounting kit (1 pc.) including:

a) bottom stop – 1 pc.;

b) plastic mounting plate – 1 pc.;

c) rubber gasket – 2 pcs.**;

d) sealing rubber ring – 2 pcs.**;

e) bolt – 5 pcs.;

f) threaded rivet – 5 pcs.;

g) self-tapping screw – 5 pcs.;

h) plastic seal – 2 pcs.***;

i) sealing cord – 2 pcs.;

j) fuse with holder (2 A) – 2 pcs.;

k) hole placement template – 1 pc.

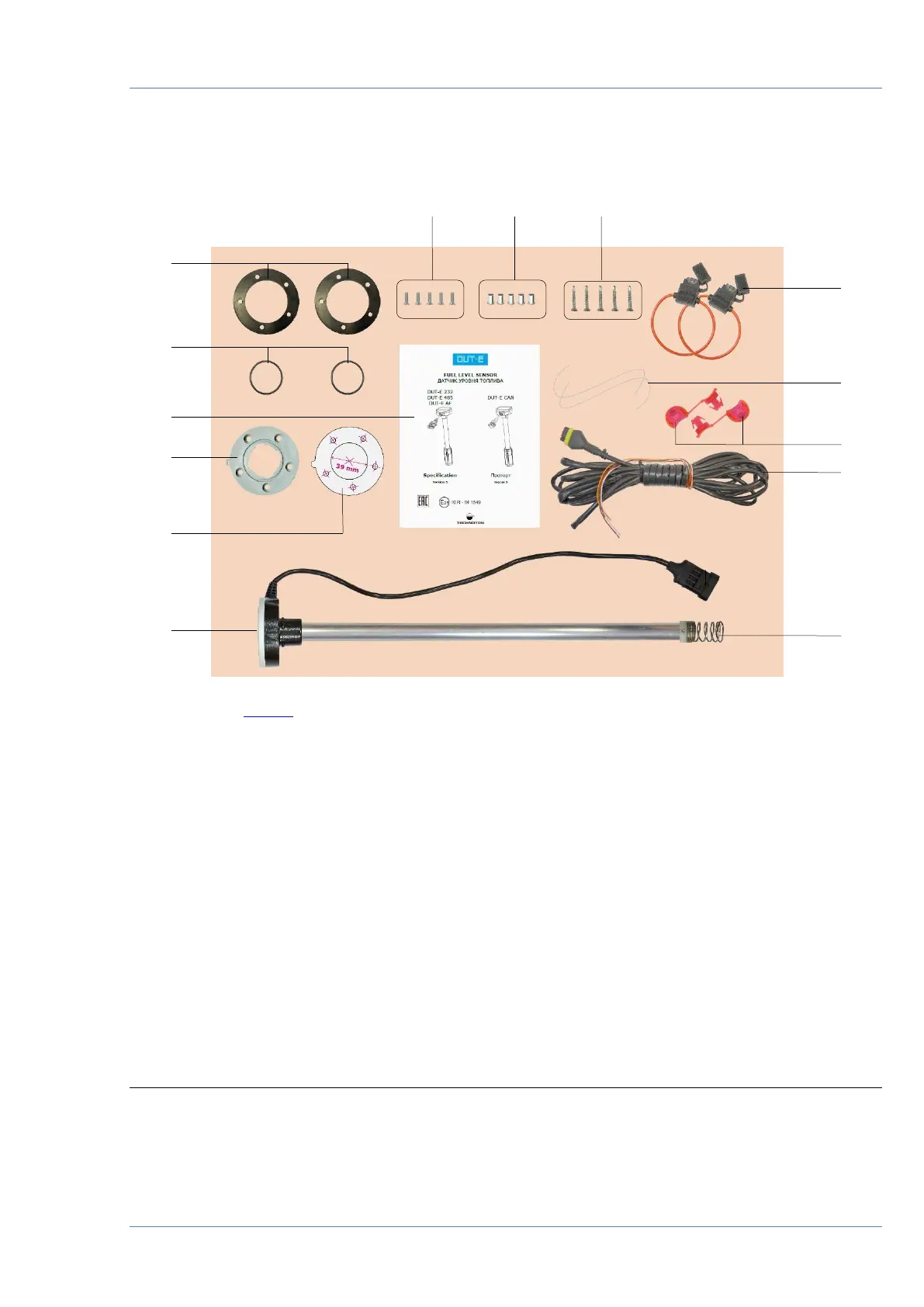

Figure 6— DUT-E delivery set

* Ordered separately signal cable (7.0 m) for DUT-E CAN.

** 1 pc. is for initial DUT-E GSM mounting and 1 pc. as a spare part.

The delivery set may include just 1 gasket of 4 mm.

*** Exterior of seal can be different.
