Annex D Example of DUT-E CAN connection via RS-232 interface, to receive data on the total volume of fuel
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 112
Annex D
Example of DUT-E CAN connection via RS-232
interface, to receive data on the total volume of fuel

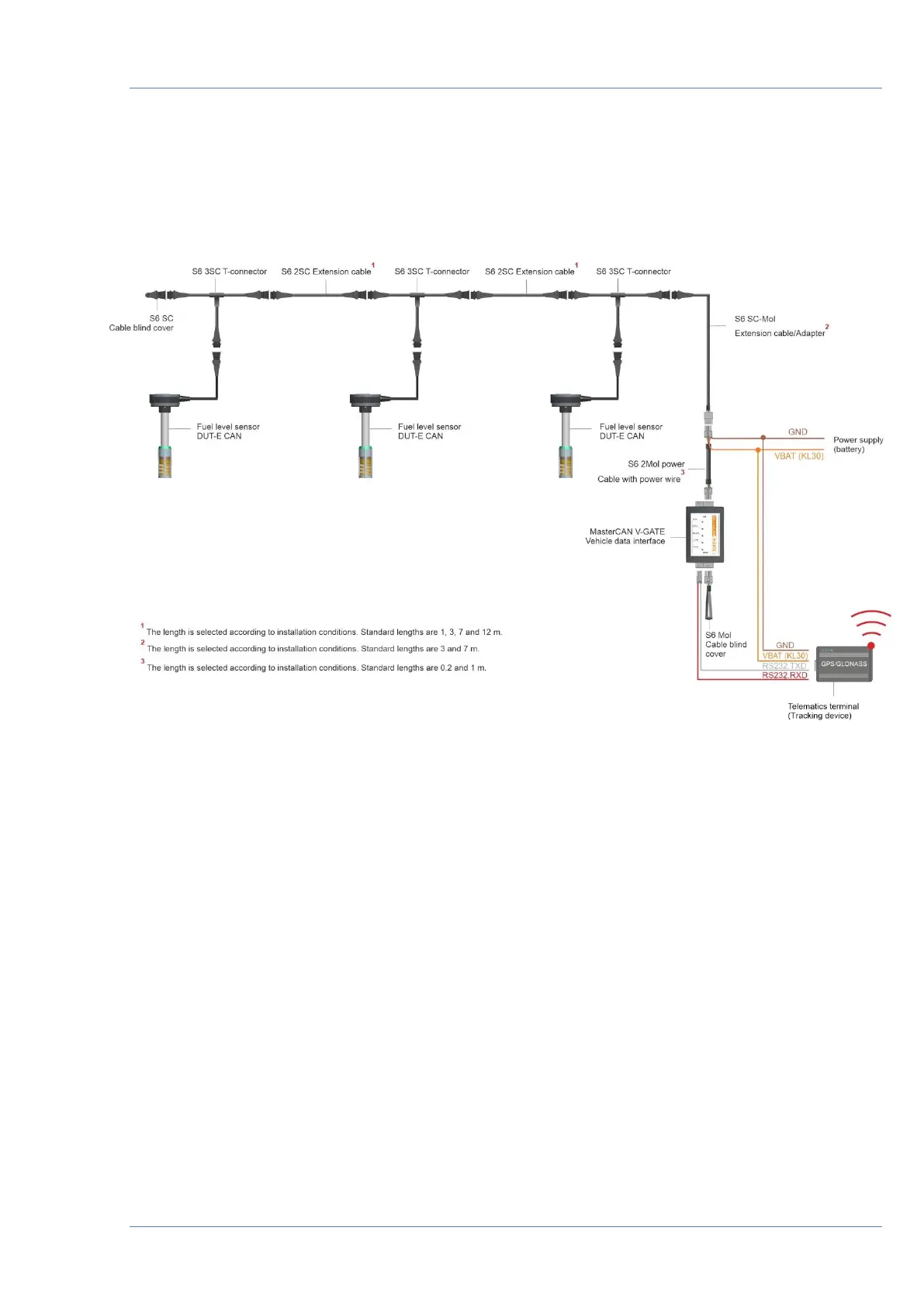

Figure D.1 — Connection of several DUT-E CAN to the Telematics terminal for summarization
of readings via RS-232 interface
