Technoton DUT-E AF - CAN Service Cable

Configuration of sensor using service adapter / Service adapter components / CAN service cable
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 54
3.3.7 CAN service cable
CAN service cable used to connect adapter to DUT-E CAN.

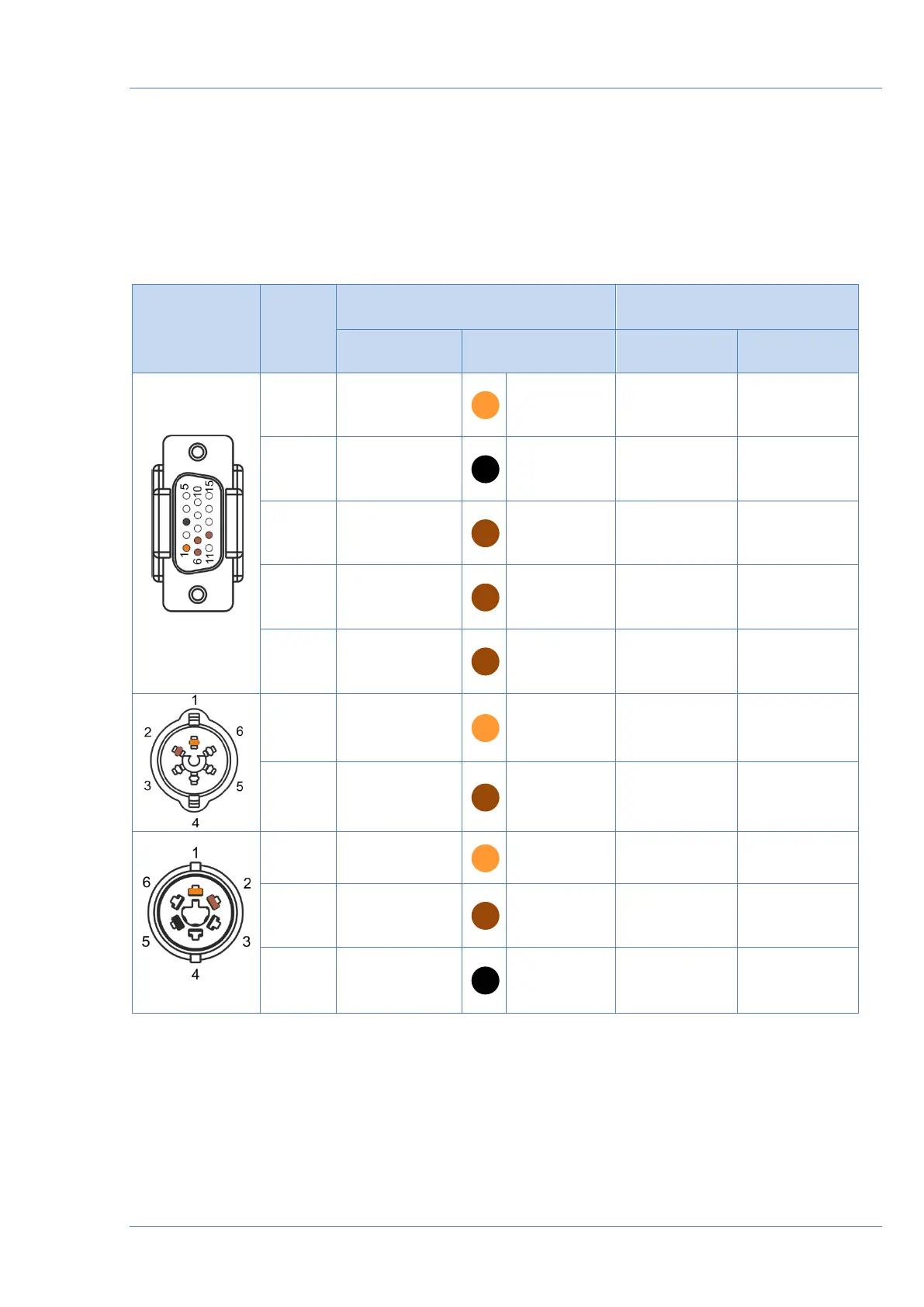

Table 13 — Pinout of CAN service cable connectors
View
Pin No
Wire
Signal
Marking
Color
Assignment
Type
1
VBAT
Orange
Power supply
Analog,
voltage
0…32 V
3
KLIN
Black
K-Line
Serial,
ISO 14230
standard
6
GND
Brown
Ground
-
7
GND
Brown
Ground
-
12
SEL2
Brown
K-Line
selection
Discrete
1
VBAT
Orange
Power
supply
Analog,
voltage
0…32 V
2
GND
Brown
Ground
-
1
VBAT
Orange
Power
supply
Analog,
voltage
0…32 V
2
GND
Brown
Ground
-
5
KLIN
Black
K-Line
Serial,
ISO 14230
standard
