Annex F DUT-E log file example
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 114
Annex F
DUT-E log file example
Filename: DUT_SN 092001302783 _D15.04.2015_T145012.txt

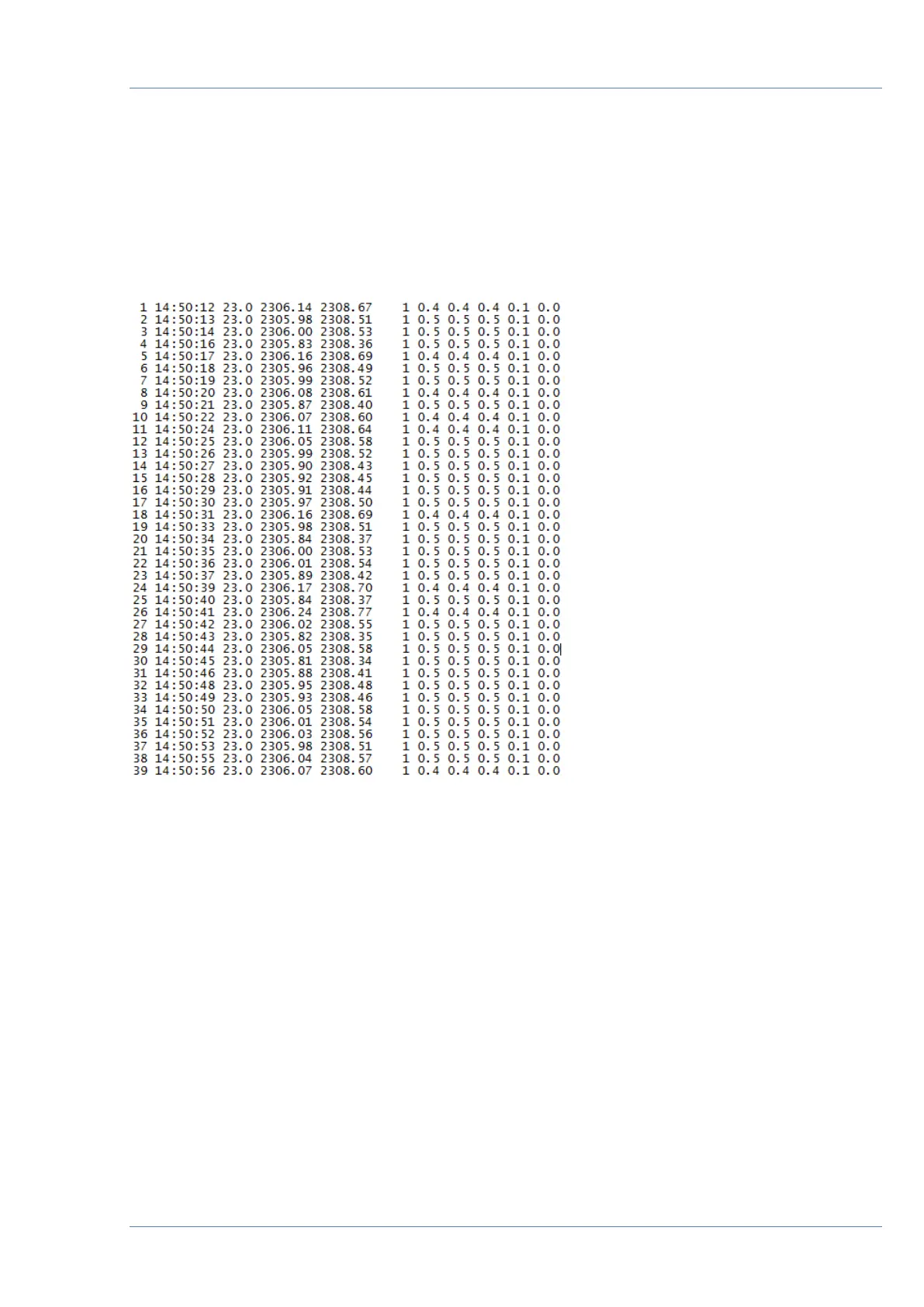

File contents:
____________________________________
1 2 3 4 5 6 7 8 9 10 11  Data field numbers
Data fields description:
1 — check point number;
2 — current time;
3 — ambient temperature (C°);
4 — initial measuring generator frequency (Hz);
5 — temperature compensated measuring generator frequency (Hz);
6 — fuel level (s.u.);
7 — initial fuel level (mm);
8 — temperature compensated fuel level (mm);
9 — temperature compensated filtered fuel level (mm);
10 — fuel volume (l);
11 — fuel volume (%).
