3.3.5 RS-232 service cable
RS-232 service cable used to connect adapter to DUT-E 232.

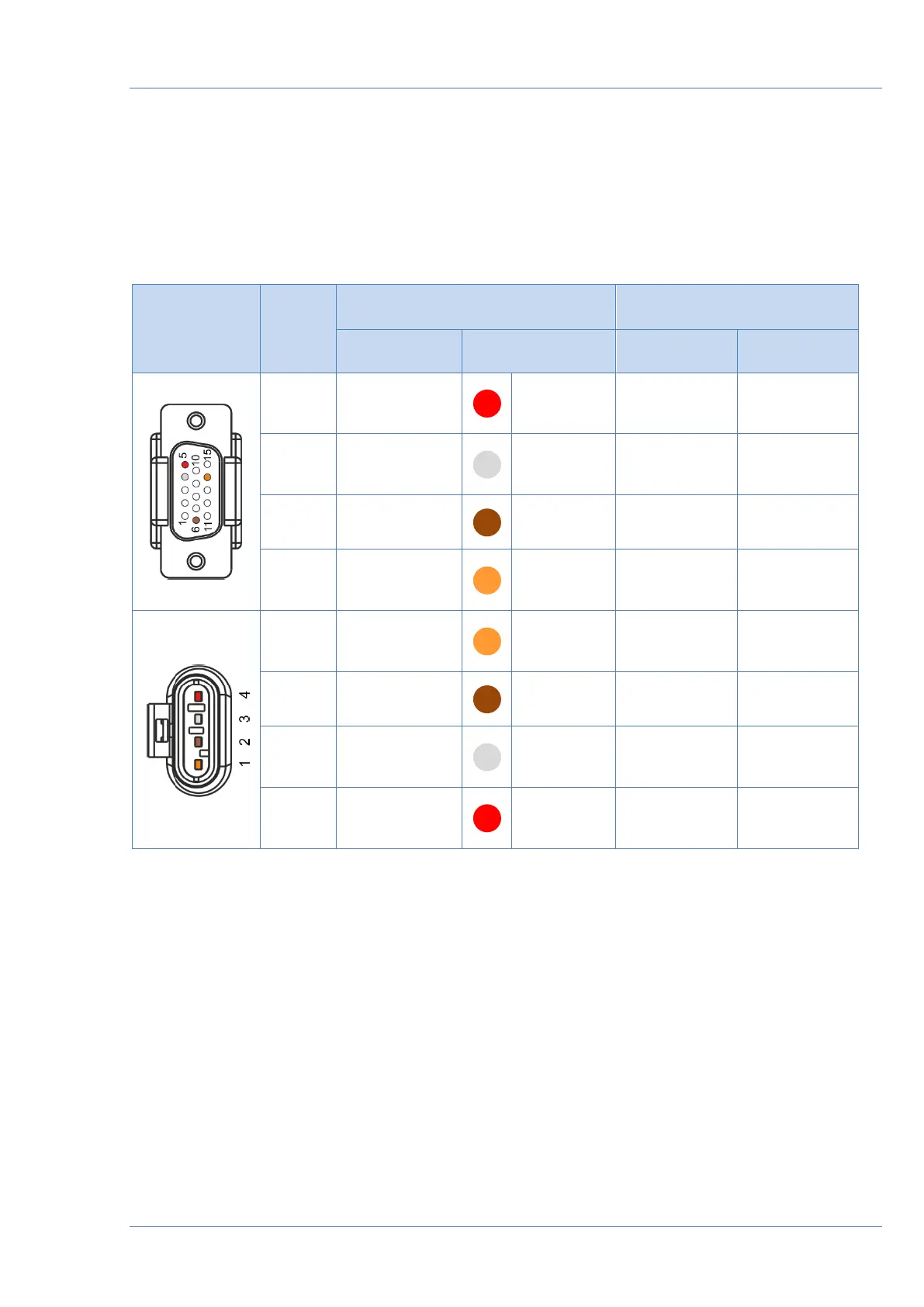

Table 11 — Pinout of RS-232 service cable connectors
View
Pin No
Wire
Signal
Marking
Color
Assignment
Type
5
232T
Red
Transmitted
data
Serial,
RS-232
interface
4
232R
White
Received
data
Serial,
RS-232
interface
6
GND
Brown
Ground
-
14
VBAT
Orange
Power
supply
Analog,
voltage
0…50 V
1
VBAT
Orange
Power
supply
Analog,
voltage
0…50 V
2
GND
Brown
Ground
-
3
232R
White
Received
data
Serial,
RS-232
interface
4
232T
Red
Transmitted
data
Serial,
RS-232
interface
