Configuration of sensor using service adapter
/ Vertical menu description / Diagnostics
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 81
3.10.10 Diagnostics
Diagnostics module is used to view the current values and information on possible
malfunction of the sensor (see figure 55 a).
Values displayed in Fuel level (mm) can be used for fuel tank calibration.
Analyzing the values of the parameters (fuel level in millimeters, standard units and liters) the
correctness of the calibration and sensor settings can be verified.
Diagnostics tab will display the following information if there any malfunction:
• malfunction code;
• transcript of the malfunction code;
• possible malfunction reason.
DUT-E COM Protocol includes malfunctions codes according to table 17.

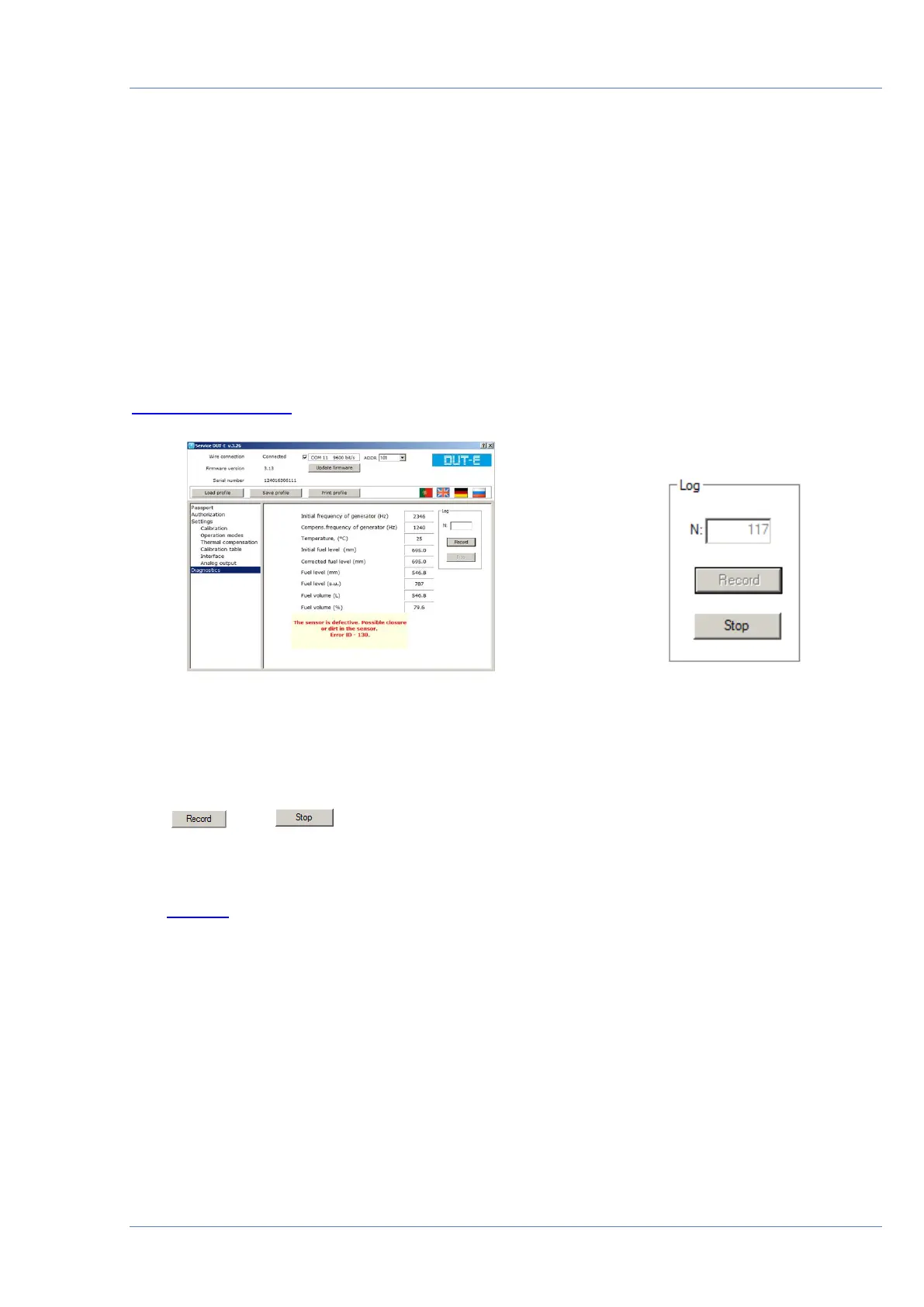

a) displaying current values and malfunction info b) logging current values
Figure 55 — Diagnostics module
For analysis of sensor data, it is possible to log the values into the file. Recording interval is
about 1 second. To log data, enter quantity of required log entries into N field of Log area and
click . Click to stop logging.
Recorded log files (*.txt) are automatically stored to \DUT_LOG folder of the software
installation directory on PC. File name consists of sensor serial number, date and time of log
start.
See annex F for a log file example.
