DUT-E fuel level sensors. Operation manual. Version 8.1

3.10.9 Settings – Analog output

Analog output* module of Service DUT-E used for configuration of DUT-E AF output voltage

range according to the voltage range of the tracking device input (see figure 54).

a) selection of signal type b) value type selection

c) enabling diagnostics values of output signal

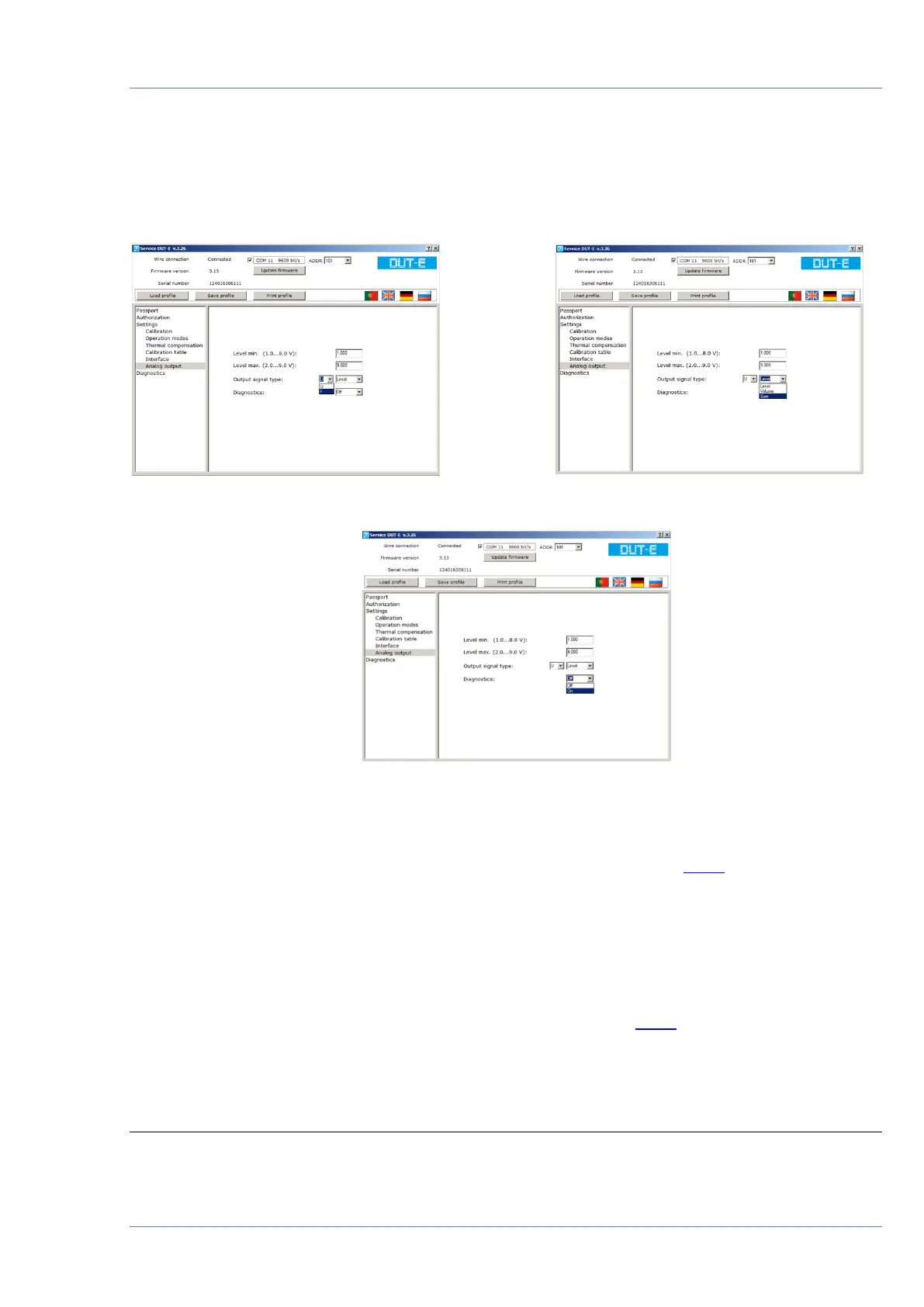

Figure 54 — DUT-E AF output configuration

The first drop-down list is for selection of Output signal according to 1.4.2:

• U (voltage);

• F (frequency).

The second drop-down list for configuring value type:

• Level (fuel level in the tank);

• Volume (fuel volume in the tank);

• Sum (totalizing readings of several sensors according to 2.8.2).

* Only for DUT-E AF.
