DUT-E installation / Electrical connection / Electrical connection of DUT-E 232/485
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 36
2.7.3 Electrical connection of DUT-E 232/485
DUT-E 232 and DUT-E 485 electrical connection is made according to pinout of the connector
and interface cable wires description. See figure 20 and table 6 for details.

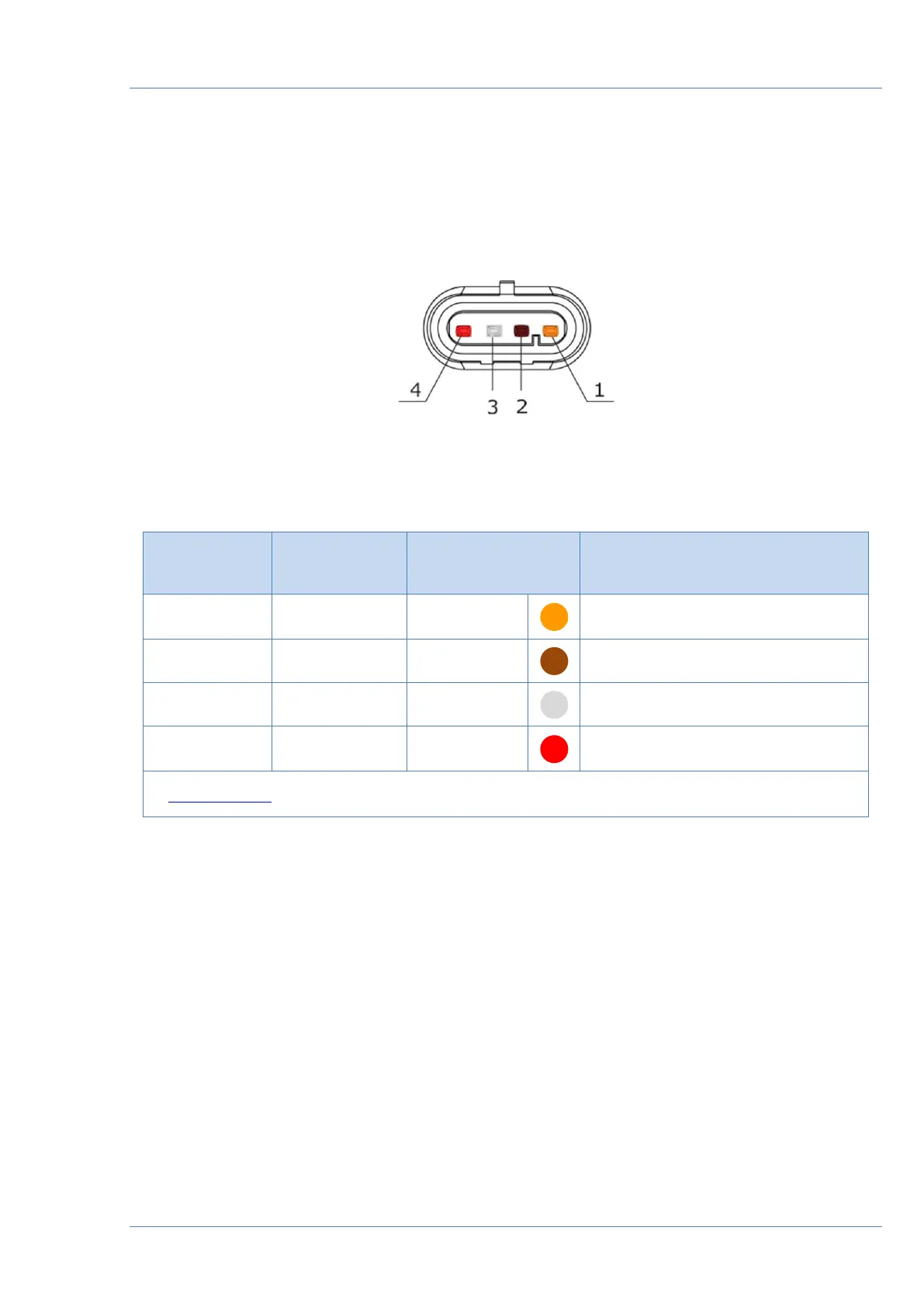

Figure 20 DUT-E 232/485 interface cable connector pinout
Table 6 DUT-E 232/485 interface cable wires assignment
Pin number
Wire
marking
Wire color*
Assignment
1
VBAT
Orange
Power supply “+”
2
GND
Brown
Ground -
3
232R/485A
White
Received data (RS-232)
Data exchange (RS-485)
4
232T/485B
Red
Transmitted data (RS-232)
Data exchange (RS-485)
* Manufacturer reserves the right to modify wire colors
