2.6 Mounting
To fasten DUT-E it is necessary to place sealing ring gasket in the groove of fastening plate
and put measurement part of sensor equipped by screen filter through the central hole. After
that, firmly push sensor’s head and turn clockwise to lock it (see figure 16).
RECOMMENDATION: It is recommended to put some oil or fuel on the sealing ring of
the mounting plate to prevent its deformation during DUT-E mounting.
The mounting should be carried out so that both sensor and mounting plate sealing holes would
match one another after locking the DUT-E.

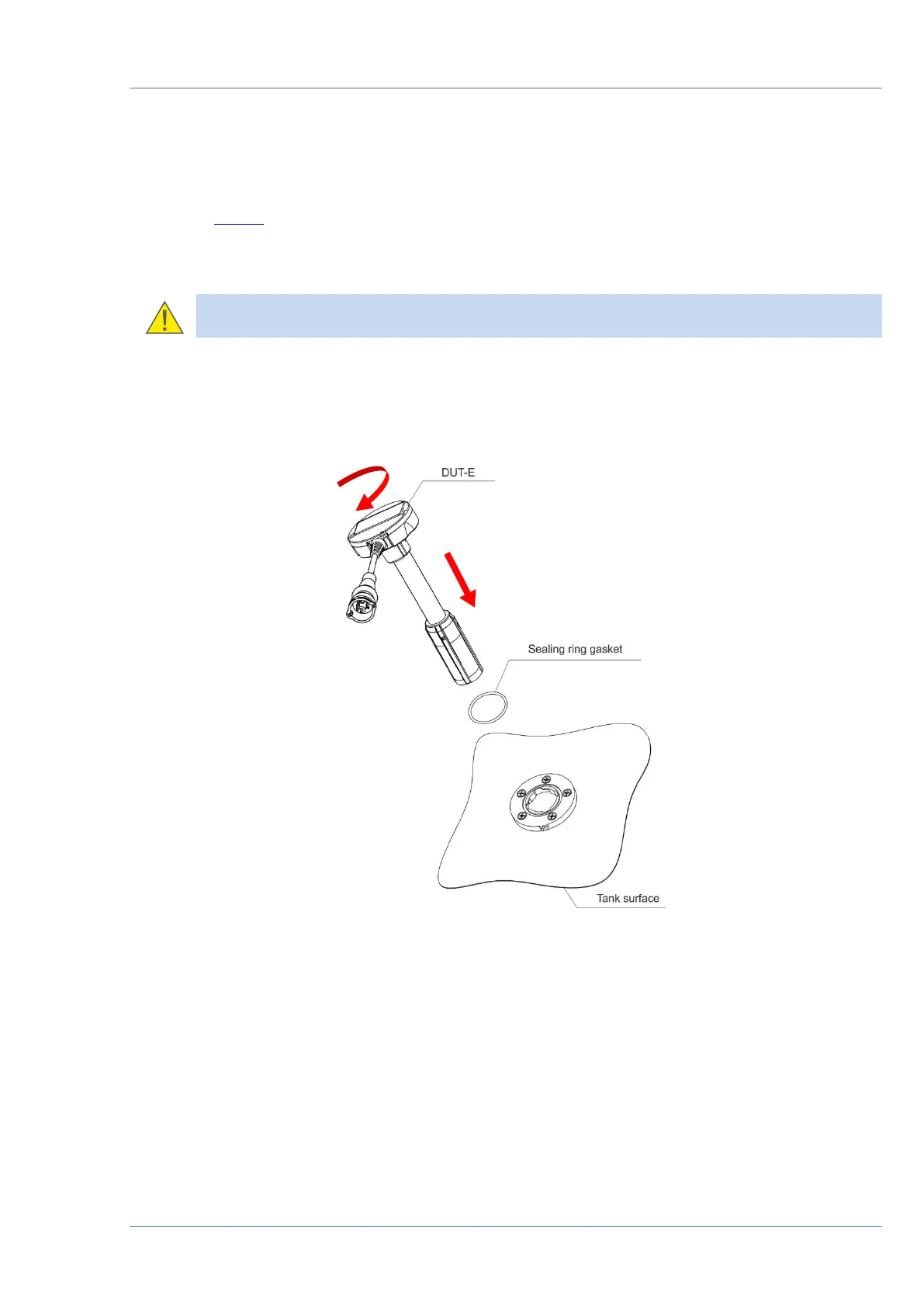

Figure 16 — DUT-E mounting
