3.10.3 Settings - Calibration
Calibration is required for correct operation of DUT-E. Calibration is conducted to determine
minimum and maximum levels of measurement of fuel in the tank.
ATTENTION: All DUT-E sensors are factory calibrated! Re-calibration is needed only
after the cutting/extension of the sensor measuring probe.
To calibrate minimum and maximum level follow the procedure:
1) Get the measuring probe (tubes) out of the fuel.
2) Wait for 30…60 seconds so that all the fuel run off the probe.
3) Measure the probe length L (mm) from the edge to the drain holes
(see figure 48 a).
4) Enter the value into Actual length of sensor after trimming field of Settings-Calibration
entry (see figure 48 b).
5) Wait for 3…5 seconds for sensor readings stabilization.
6) Click for minimum level calibration.
ATTENTION: When calibrating sensor to minimum level, there should not be fuel
residues on surface of tubes of probe.
7) Dip the probe’s tubes fully into the fuel.
8) Wait for 3…5 seconds for sensor readings stabilization.
9) Click for maximum level calibration.
10) Min/max calibration is finished.

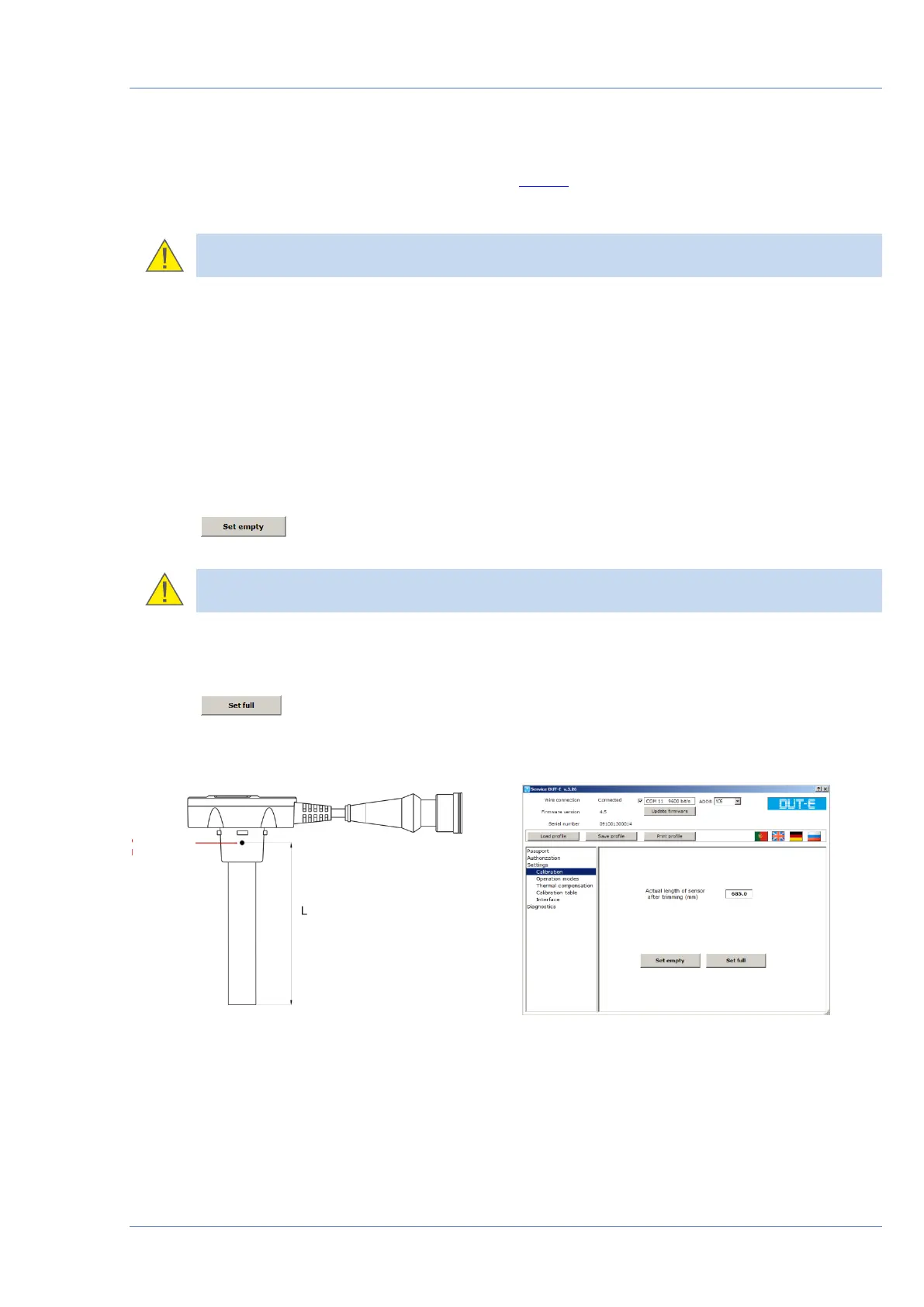

a) measuring probe length b) Settings-Calibration entry
Figure 48 — DUT-E min/max calibration
