2.5 Length extension
Length extension is performed by fastening KDC additional sections to the measuring probe of
DUT-E sensor (see figure 15 and DUT-E Length extension with KDC video).
DUT-E AF/232/485/CAN can be extended up to 6000 mm length.
DUT-E A5/A10/F/I extension is possible only up to the initial size of particular
sensor (if been cut).
Length extension option significantly decreases expenses on storage and transportation.
a) exterior view
b) fastening order
c) fastening order of two sections

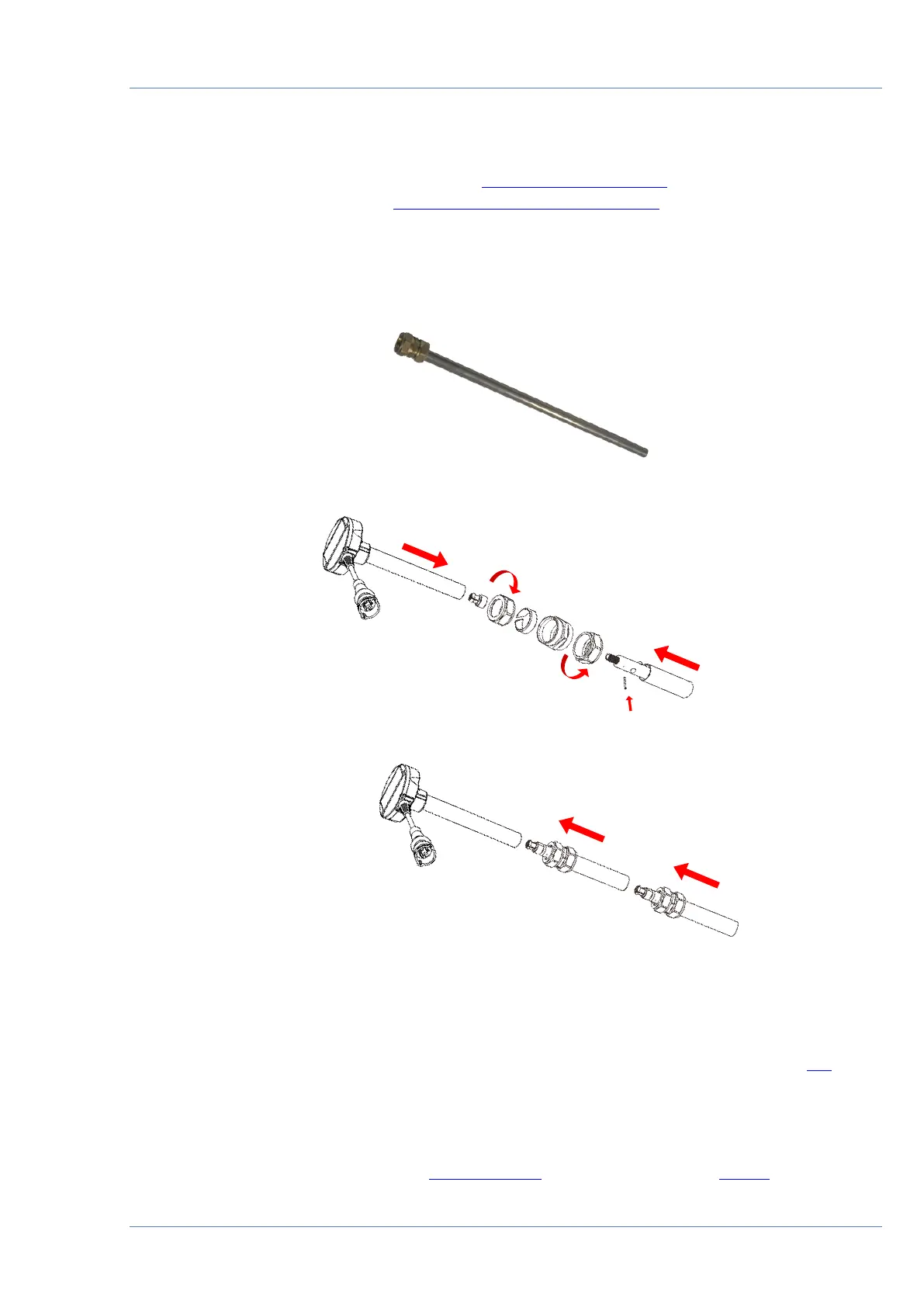

Figure 15 — DUT-E additional section
DUT-E additional sections can be cut to necessary size. Follow instructions of clause 2.4 when
cutting the sections.
Model range of DUT-E additional sections includes: KDC 250, KDC 500 and
KDC 1000 with lengths of 250, 500 and 1000 mm respectively.
After length extension the measuring probe of DUT-E AF/232/485/CAN models, you need to
carry out the sensor calibration using Service DUT-E service software (see 3.10.3).
