2.9 Sealing
It is required to seal the sensor and cable connector with sealing cords and disposable plastic
seals to prevent fuel thefts or unauthorized interference into DUT-E operation (see figure 26).
Seals and cord are included into DUT-E delivery set.
ATTENTION: Security sealing of DUT-E AF, DUT-E 232, DUT-E 485 and DUT-E CAN
cable connector should be carried out after the configuration and calibration are
finished (see 3)
To seal the sensor put the sealing cord through the special holes of the mounting plate and
DUT-E body. Then put the ends of the cord through the holes in the center of the plastic seal
body. Latching the seal will lock the cord. Seal removal will be impossible without its
damaging.

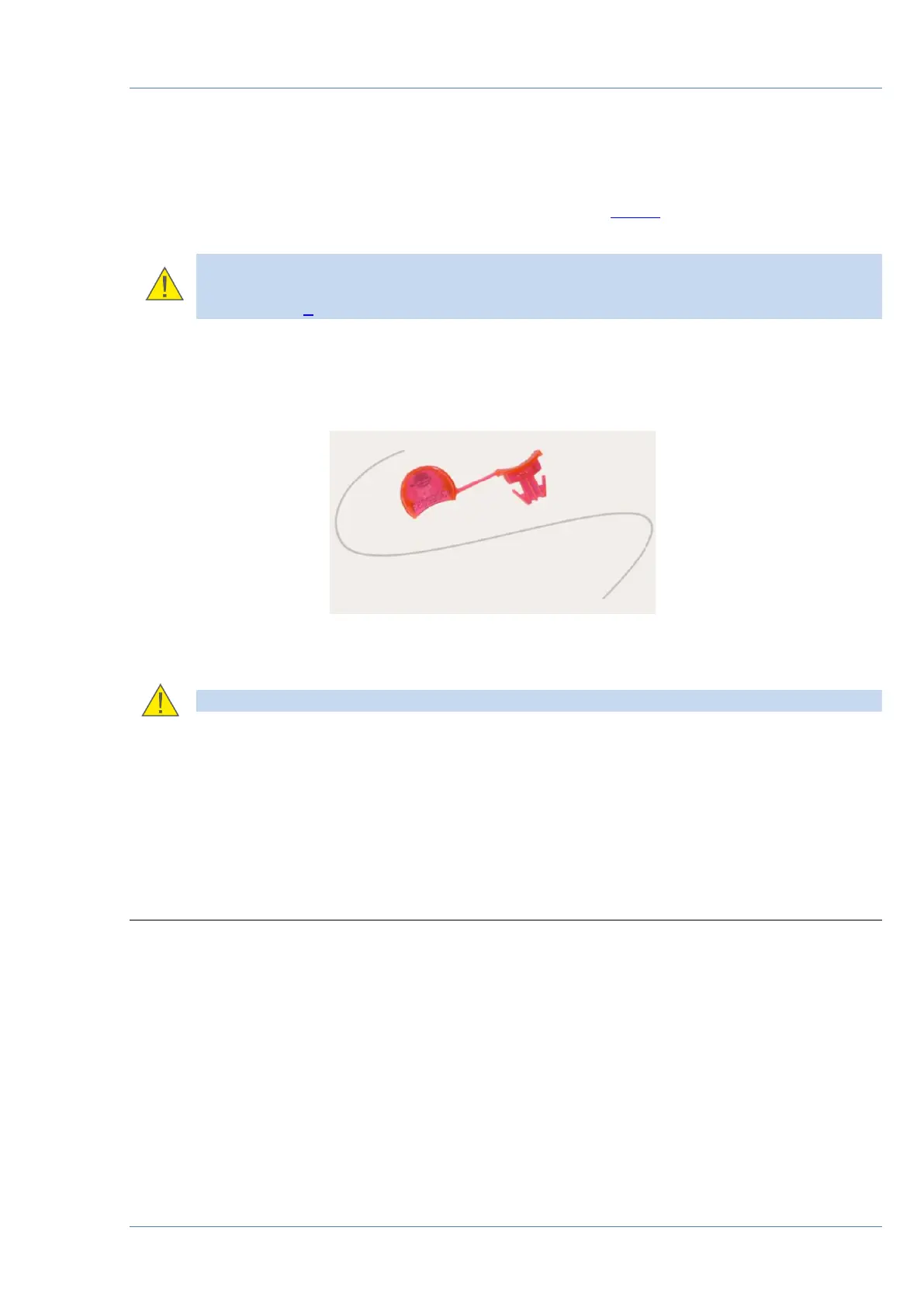

Figure 26 — Plastic seal* and sealing cord
WARNING: Sealing rope should not touch the fuel tank body!
* Design of the seal supplied within the delivery set can differ from the one displayed in
figure 26.
