2.7.1 Electrical connection of DUT-E AF
DUT-E AF electrical connection is made according to pinout of the connector and interface
cable wires description. See figure 18 and table 4 for details.

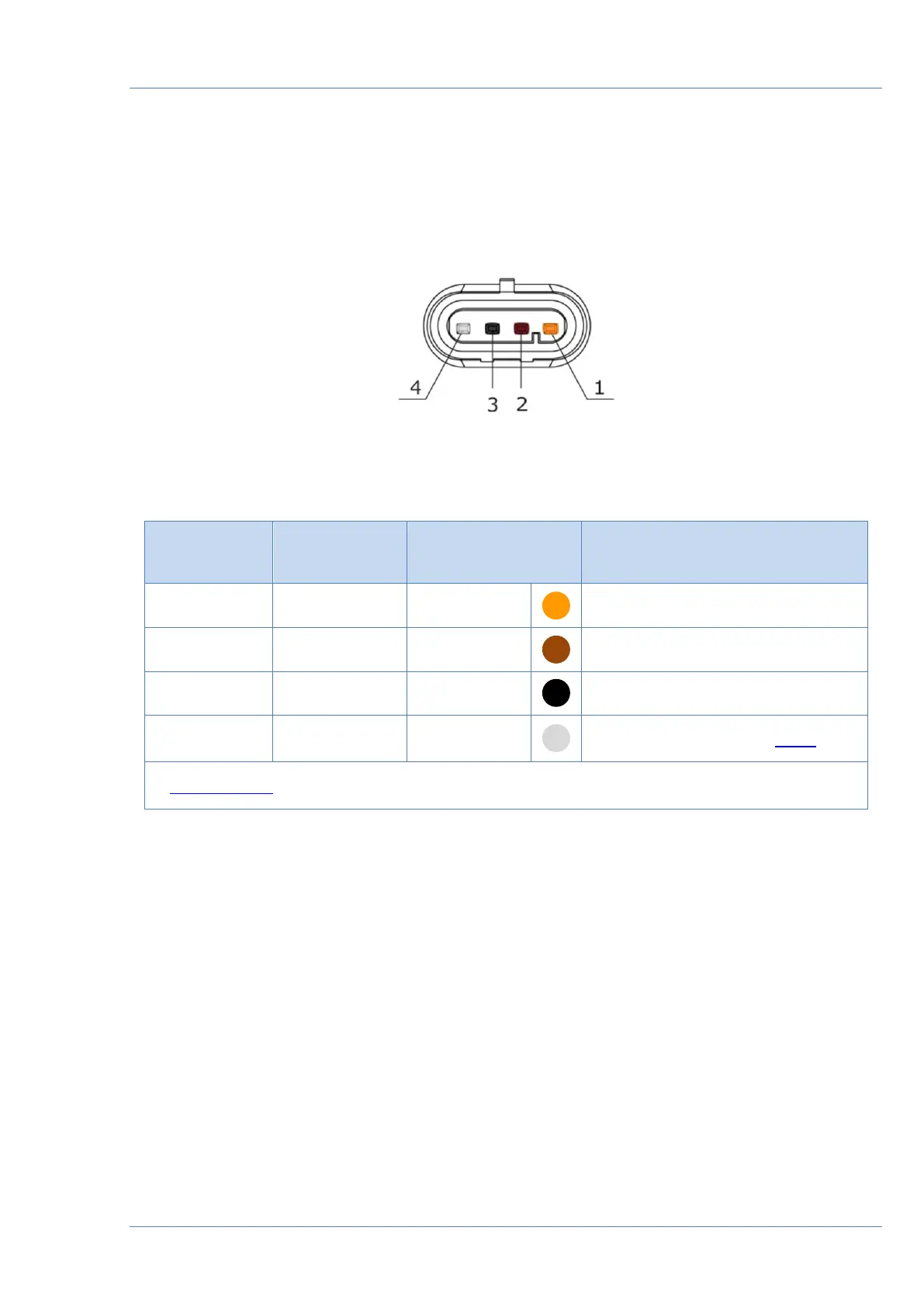

Figure 18 — DUT-E AF interface cable connector pinout
Table 4 — DUT-E AF interface cable wires assignment
Pin number
Wire
marking
Wire color*
Assignment
1
VBAT
Orange
Power supply “+”
2
GND
Brown
Ground “-”
3
KLIN
Black
K-Line (ISO 14230)
4
T034
White
Output signal (see 1.4.2)
* Manufacturer reserves the right to modify wire colors
