DUT-E installation / Electrical connection
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 33

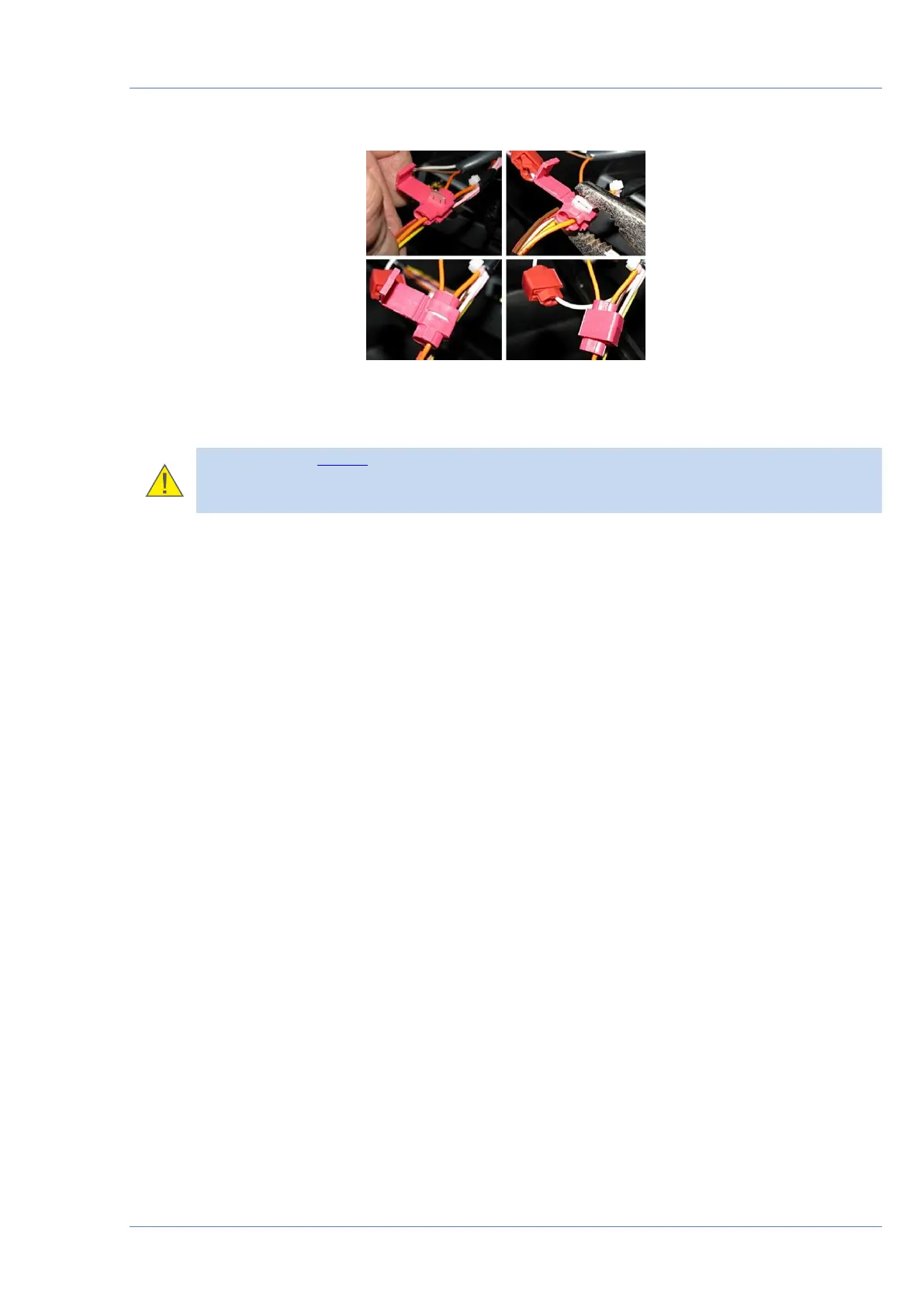

c) using connectors to connect wires of signal cable
Figure 17 — Electrical connection of DUT-E
IMPORTANT: DUT-E body is electrically connected to Ground “-” (brown wire of the
connection cable). Electrical isolation between the DUT-E body and the fuel tank is
provided by the mounting plate made of dielectric plastic material.
