Configuration of sensor using service adapter

/ Service adapter components / Exterior view and delivery set

DUT-E fuel level sensors. Operation manual. Version 8.1

3.3 Service adapter components

3.3.1 Exterior view and delivery set

1 - universal service adapter;

2 - SK DUT-E specification;

3 - USB A-B cable;

4 - CAN service cable;

5 - RS-485 service cable;

6 - RS-232 service cable;

7 - AF service cable.

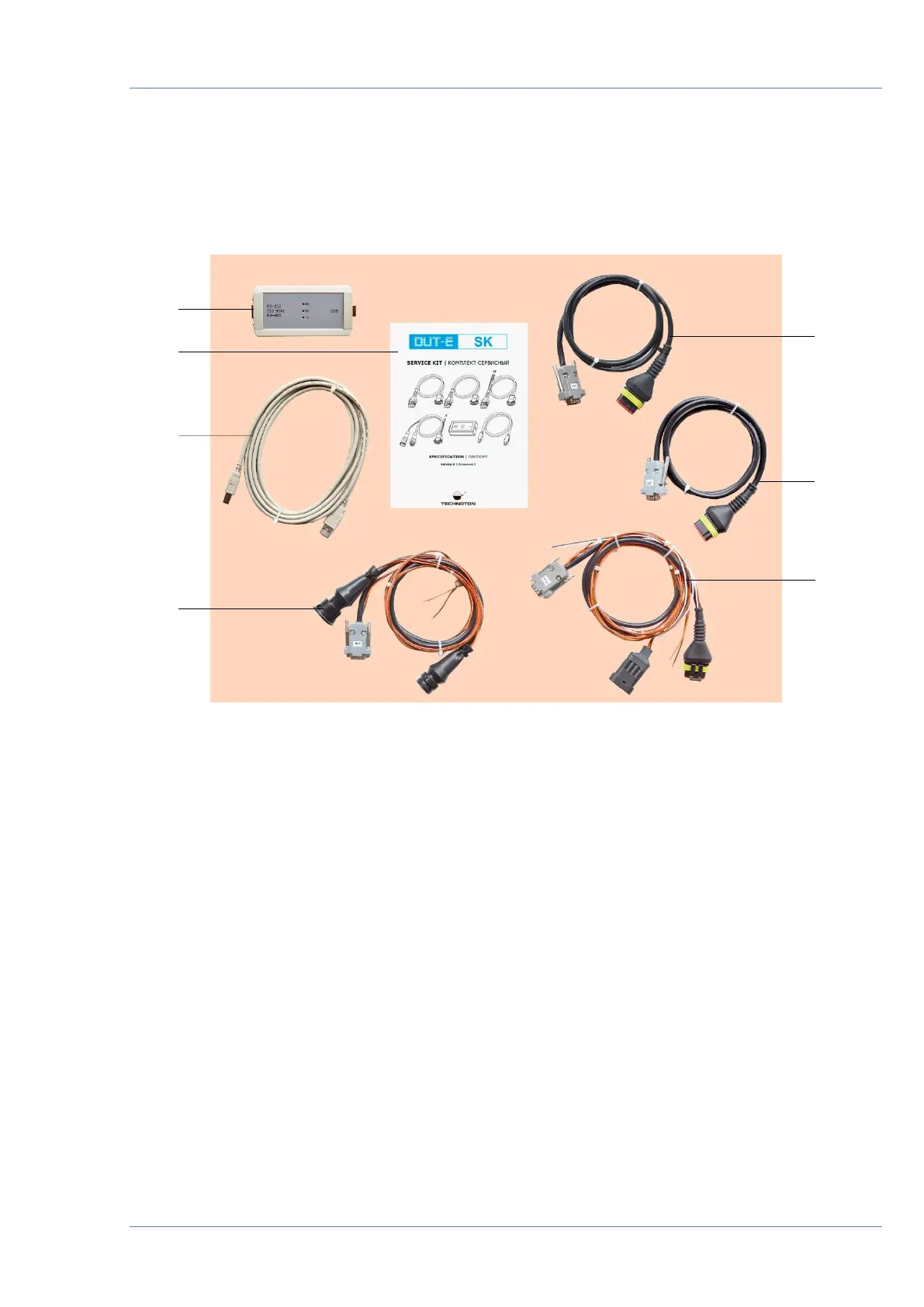

Figure 27 — SK DUT-E delivery set
