Accessories / MK DUT-E mounting kit

DUT-E fuel level sensors. Operation manual. Version 8.1

5 Accessories

Technoton offers high quality accessories for mounting, connection and operation of DUT-E

sensors.

5.1 MK DUT-E mounting kit

DUT-E mounting kit (hereinafter MK DUT-E) is used for sensor mounting into the fuel tank of

vehicle or stationary tank. MK DUT-E is included into DUT-E delivery set. Extra mounting kits

can be ordered separately if required. DUT-E sensor is mounted quickly and accurately with

MK DUT-E. See figure 60 for MK DUT-E components.

Mounting plate with SAE 5 bolt standard bore position can be preordered.

1 - plastic mounting plate – 1 pc.;

2 - rubber gasket – 2 pcs.*;

3 - sealing rubber ring – 2 pcs.*;

4 - hole placement template – 1 pc.;

5 - fuse with holder (2 A) – 2 pcs.;

6 - bottom stop – 1 pc.;

7 - bolt – 5 pcs.;

8 - self-tapping screw – 5 pcs.;

9 - threaded rivet – 5 pcs.;

10 - sealing cord – 2 pcs.;

11 - plastic seal – 2 pcs.**

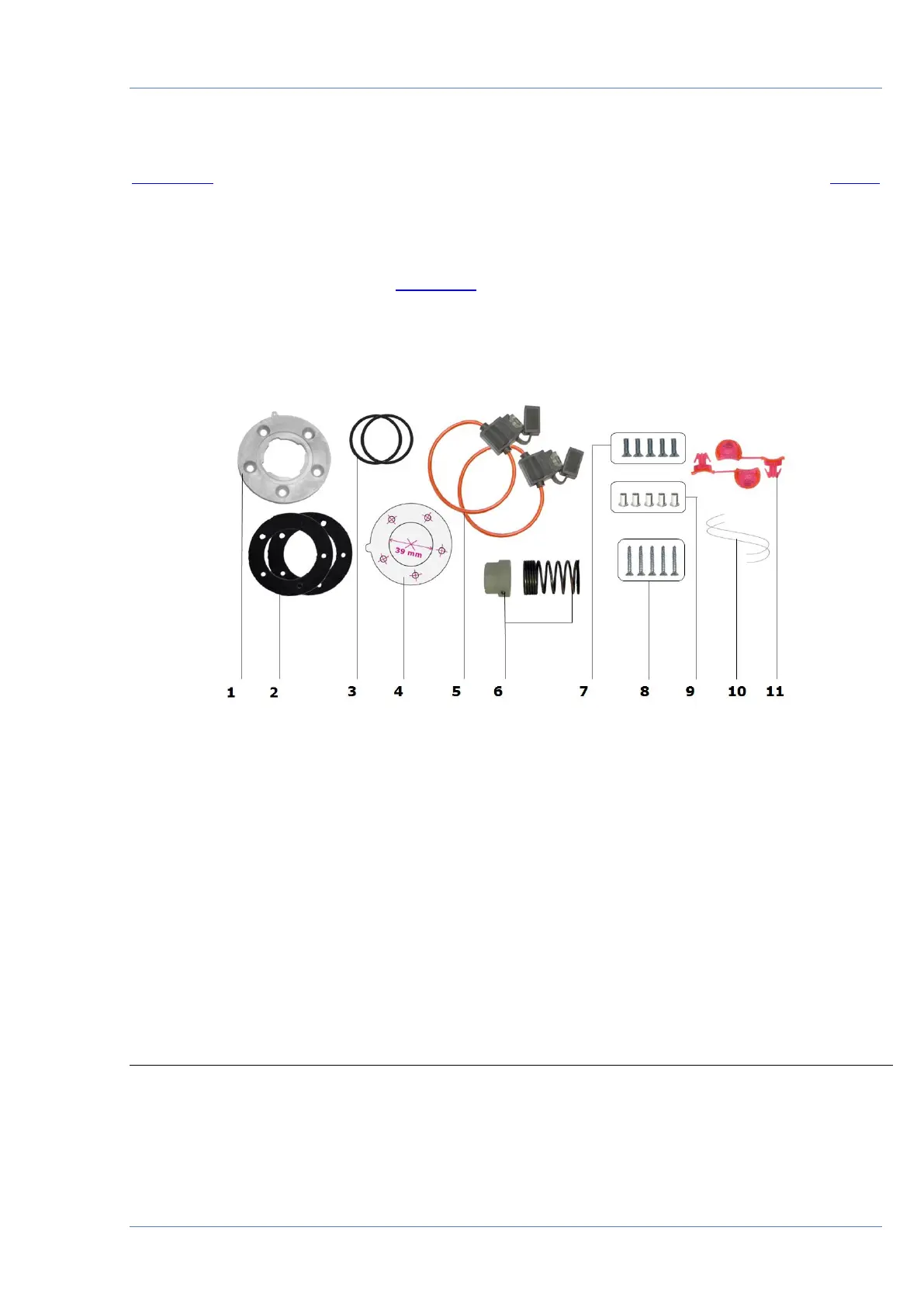

Figure 60 — MK DUT-E mounting kit

* 1 pc. – used for DUT-E installation and 1 pc. is a spare part.

Could be complemented with 4 mm thick gasket.

** Exterior of seal can be different.
