General information and technical specifications of DUT-E / Purpose of use and application area
DUT-E fuel level sensors. Operation manual. Version 8.1
© Technoton, 2020 12
DUT-E is installed into a fuel tank of a vehicle. The sensor measures fuel level in the tank and
generates an output signal to forward it to a Vehicle Tracking device.
Telematics terminal records and processes the sensor data for further transmission to the
telematics server. Server software processes and analyzes the received data to generate
Analytical reports for a selected period of time.
The availability of CAN j1939/S6 interface enables DUT-E CAN fuel level sensors to operate
together with DFM CAN fuel flow meters and other standard and additional equipment by
means of S6 Technology (see figure 4).

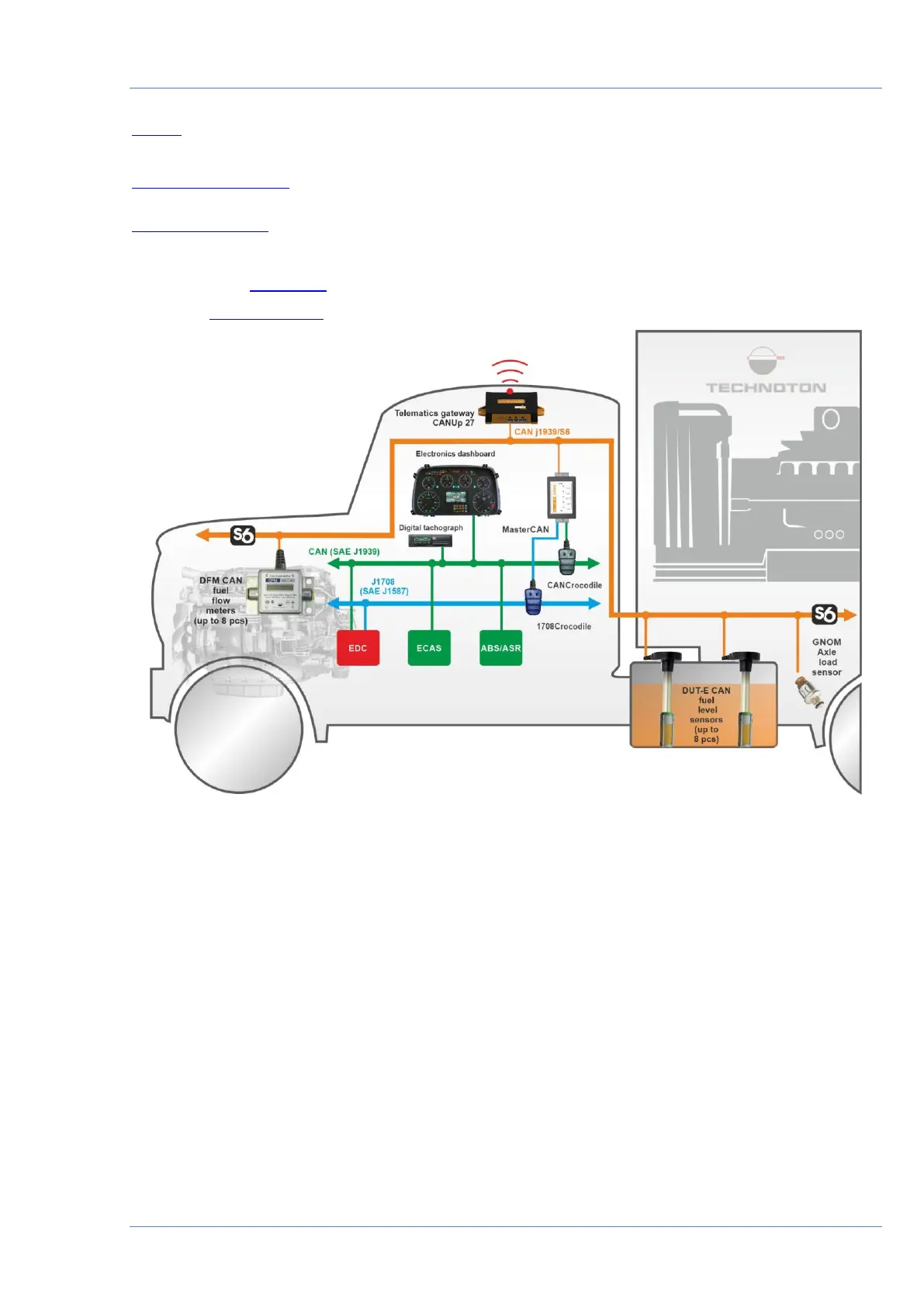

Figure 4 — Employment of DUT-E CAN sensors using S6 Technology
With the help of DUT-E CAN connected by means of S6 Technology, you can monitor in real
time:
• fuel tank level and volume;
• total volume of fuel in up to 8 tanks and a separate volume value for each of the tanks;
• fuel temperature;
• sensor specification data (passport);
• presence of water in fuel;
• sensor malfunctions.
Tracking device can receive data from up to 8 DUT-E CAN sensors and up to 8 DFM CAN fuel
flow meters via a single CAN interface port. This technical option is of particular importance for
complicated mobile or fixed objects.
