2. Press 0% to return to the preset target rate.
3. Press the Close menu button .

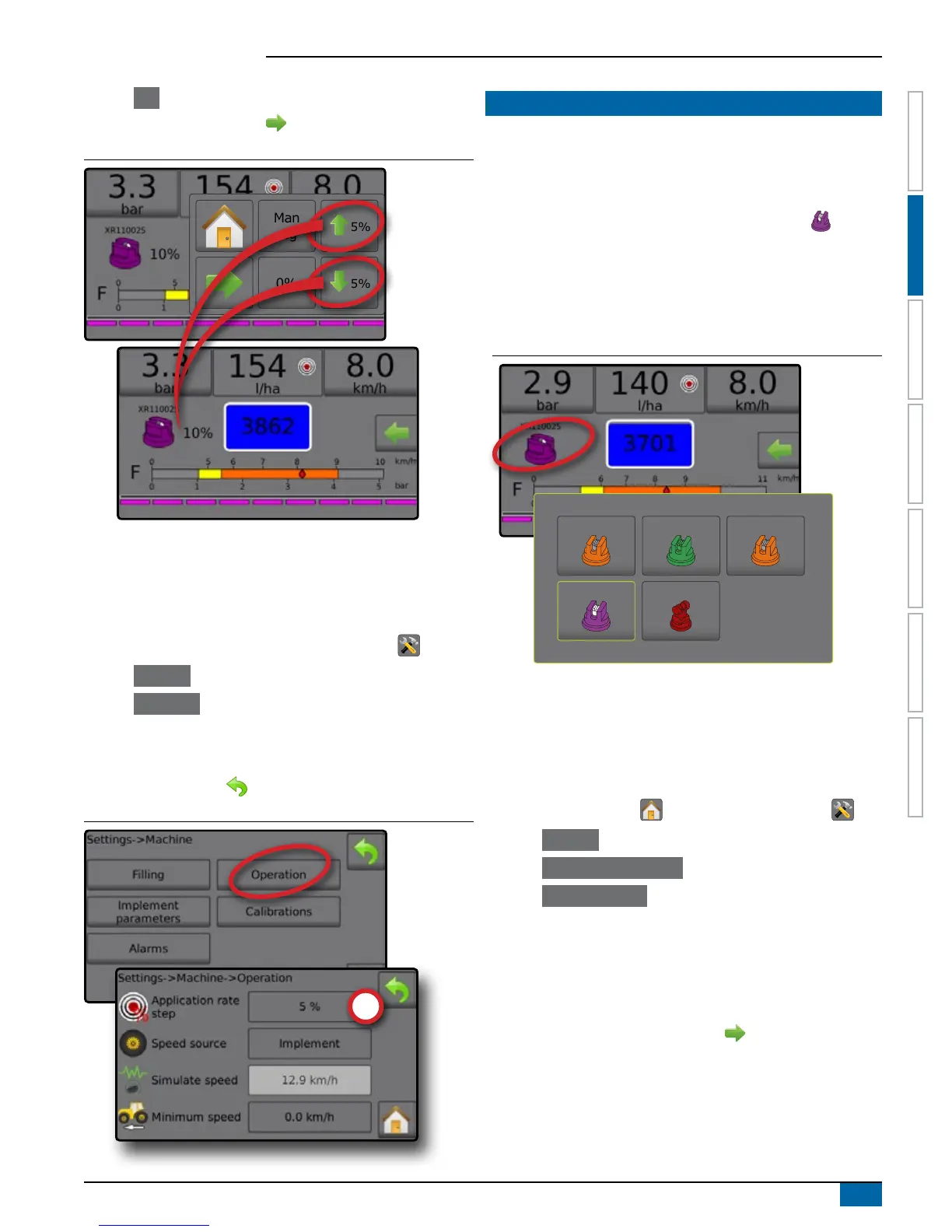

Figure 2-15: Application Rate Step
0%
Man
reg
5%
5%
Change Application Rate Step
Application Rate Step is the percent of increase/decrease boost of
the active application rate at which the product is applied. Range is
1 to 20%.
1. From the Home screen, press the SETTINGS button .
2. Press Machine .
3. Press Operation .
4. Press Application Rate Step value .
5. Select an Application Rate Step.
6. Press RETURN arrow to return to the Machine screen.
Figure 2-16: Operation

TIP SELECTION
Tips must be preset to be available for current tip selection. Presets
allow saving of up to ve (5) tips for quick recall.
Selecting the Current Tip
1. From the Operation screen, press the CURRENT TIP to
display the Preset Tip menu.
2. Select a tip type from among ve (5) tip presets.
NOTE: Current Tip can also be selectable on the
Settings-
>
Job Parameters screen.
Figure 2-17: Tip Type on Operation screen
XR110025
XR11001
TT11004
XR110015 XR8001
Presetting Tips
Tip Preset Setup establishes up to ve (5) sets of tip options setting
the tip type, capacity, low/high pressure limit, reference ow and
reference pressure. For more information see Settings->Machine-
>Implement Parameters->Tip Preset Setup.
1. From the Home screen , press the SETTINGS button .
2. Press Machine .
3. Press Implement Parameters .
4. Press Tip Preset Setup .
5. Select Tip Preset Number 1 .
6. Select Tip Series .
7. Select Tip Capacity .
8. Repeat steps 5, 6 and 7 for Tip Preset Numbers 2 to 5.
9. OPTIONAL: Press NEXT PAGE arrow  to adjust the
settings for Low Pressure Limit, High Pressure Limit, Reference
Flow and Reference Pressure. Each of these settings are specic
to the current tip preset number.
