TeeJet RADION 8140 - Miscellaneous Connections

INTRODUCTION
57
98-05311-ENUS R2
OPERATIONDATA SETTINGSTOOLS CONSOLE
Radion 8140 Automatic Sprayer Control
APPENDIX

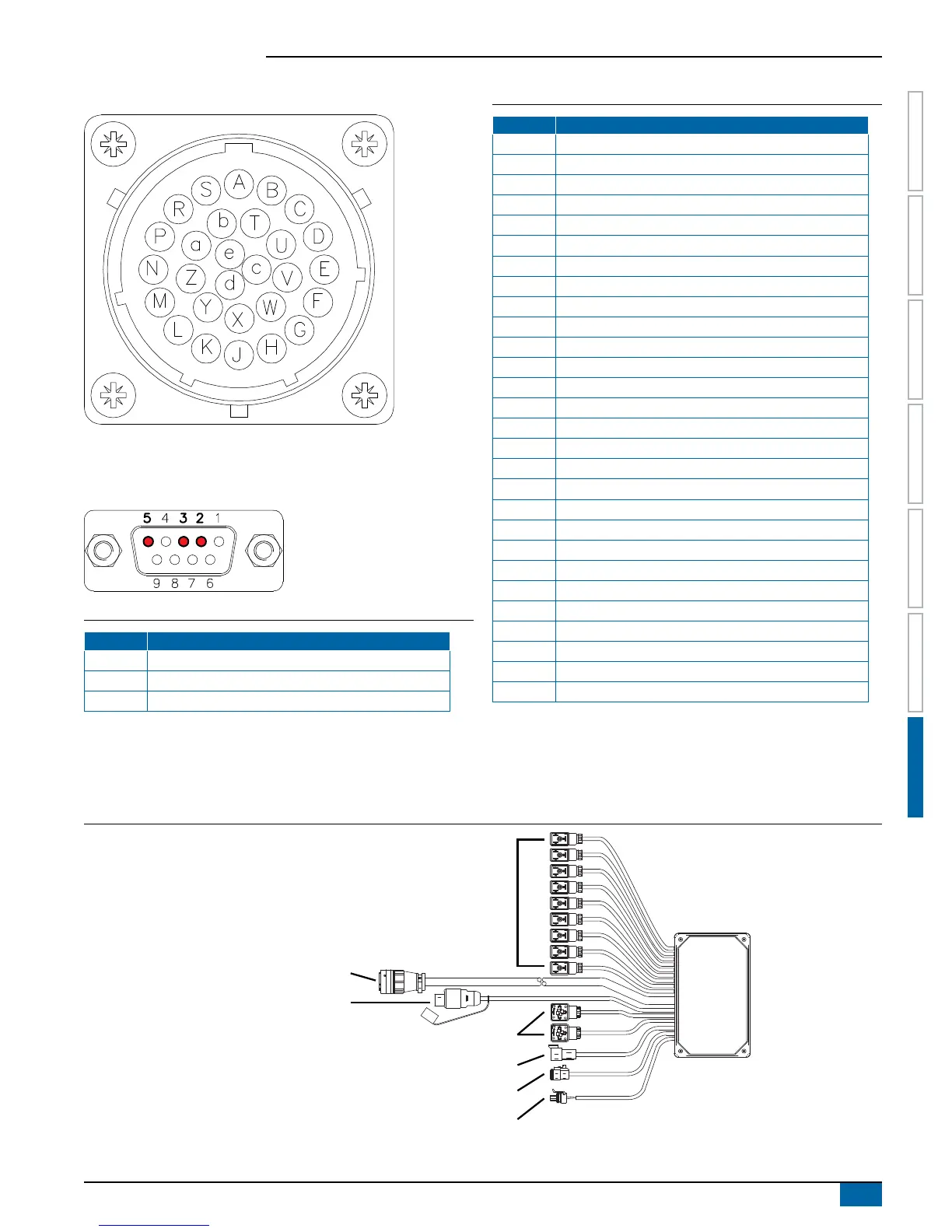

Main Connection on Radion Console
Serial connection on Radion console
Table 7-3: Serial Connection
Pin No. Signal Name
2 Transmit
3 Receive
5 Ground
Table 7-4: Main Connection
Pin No. Signal Name
A Master
B Section 1
C Section 2
D Section 3
E Section 4
F Section 5
G Section 6
H Section 7
J Section 8
K Section 9
L n/a
M n/a
N Tank Sensor / Fill Flowmeter (optional)
P Fill Valve
R Flow
S Pressure
T Speed
U Balance Up (optional)
V +12V sensor
W Balance down (optional)
X Balance Potmeter (optional)
Y Balance Potmeter (optional)
Z Balance Potmeter (optional)
a Regulation +
b Regulation -
c Master in
d Ground in
e +12V in
Miscellaneous Connections
General Spray Cable Connections
Figure 7-3: General Spray Cable Connections
COBO power connection
Master valve and Regulation valve connections
Flow meter connection
Console connection
Boom section connections
Speed sensor proximity connection
Pressure sensor connection
