Radion 8140 Automatic Sprayer Control
SETTINGS
Operation
Operation congures application rate steps and speed settings relating to operations. Options include Application Rate Step, Speed Source,
Simulate Speed and Minimum Speed.
SETTINGS MENU STRUCTURE
| | | |
Job Parameters Machine OEM Diagnostics
Filling
Operation
Application Rate Step
Speed Source
Simulated Speed
Minimum Speed
Implement Parameters
Calibrations
Alarms

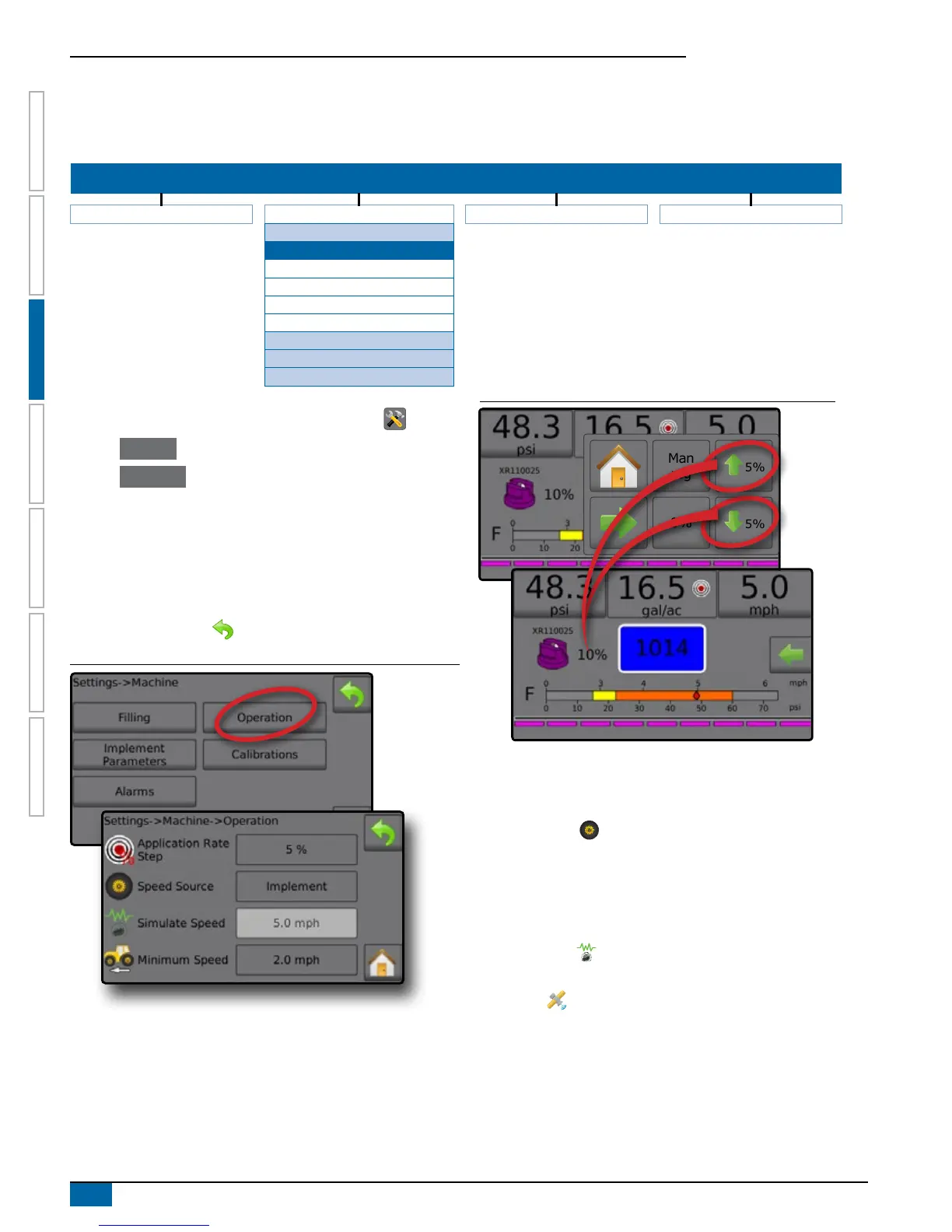

Figure 3-7: Application Rate Step on Operation Screen.
1. From the Home screen, press the SETTINGS button .
2. Press
Machine .
3. Press Operation .
4. Press setting value to adjust settings as needed:
◄Application Rate Step
◄Speed Source
◄Simulated Speed (available when Speed Source is Simulated)
◄Minimum Speed
5. Press RETURN arrow to return to the Machine screen.
Figure 3-8: Operation
Application Rate Step
Application Rate Step is the percent of increase/decrease boost of
the active application rate at which the product is applied. Range is
1 to 20%.
Application Rate Boost/Step Percent is used on the Operation
screen from the Options tab while in Automatic Mode.
0%
Man
reg
5%
5%
Speed Source
Speed Source selects whether to base the machine speed on input
from the CAN, an Implement or a Simulated source.
◄Implement – allows for speed to be supplied from an
Implement Speed Sensor. Calibration of the Implement Speed
Sensor is done.
NOTE: Calibration of the Implement Speed Sensor is
established in the Settings
-
>Machine
-
> Calibrations
-
>Implement Speed Sensor options.
◄Simulated – allows for simulated speed to be entered
NOTE: An alarm will sound at start up when active.
◄CAN
– uses speed supplied by the CAN
Simulated Speed
Simulated Speed establishes a speed for using the Simulated Speed
source. Range is 0 to 62.1 miles/hour / 99.9 kilometers/hour.
Minimum Speed
Minimum Speed establishes the minimum forward speed at which
the system should automatically switch the main valve off. Range is
0 to 62.1 miles/hour / 99.9 kilometers/hour.
